Huawei OptiXstar EG8147X6-10 GPON ONT Gateway, WiFi 6
Your price excl. VAT
91.36 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 91.42 EUR |
| Your price incl. VAT (21%) | 110.62 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907171 | |
| Part No. | EG8147X6-10 | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.68 EUR excl. VAT
4.45 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Maximum modulation:
1024 QAM
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO:
Yes
Security:
WPA3 AES
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Fixed
Fixed antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
5
Optics
Wavelength - Tx/Rx [nm]:
1490 / 1310
Transfer type:
GPON
Polishing type:
APC
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(4) 10/100/1000Mbps
Gigabit LAN:
Yes
PON SFP cages:
1
USB ports 2.0:
1
USB:
Yes
Power
Max. power consumption [W]:
18
Power via connector/terminal:
12V / 1,5A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset, power, WiFi/WPS
Operating temperature [°C]:
0 up to 40
Weight [g]:
305
Width [mm]:
195
Height [mm]:
35
Depth [mm]:
120
Software
Operating mode:
AP Router
IPv6 support:
Yes

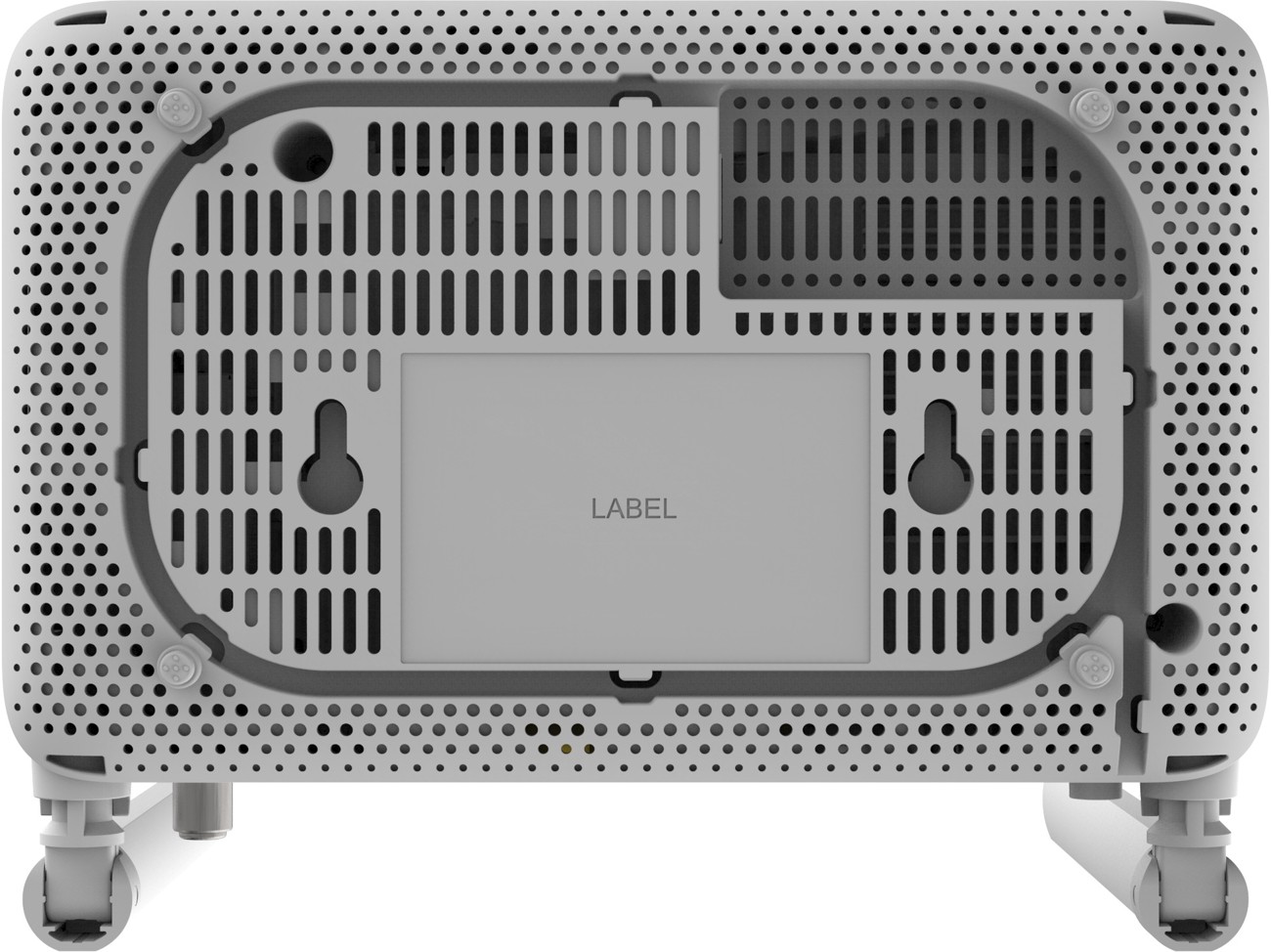

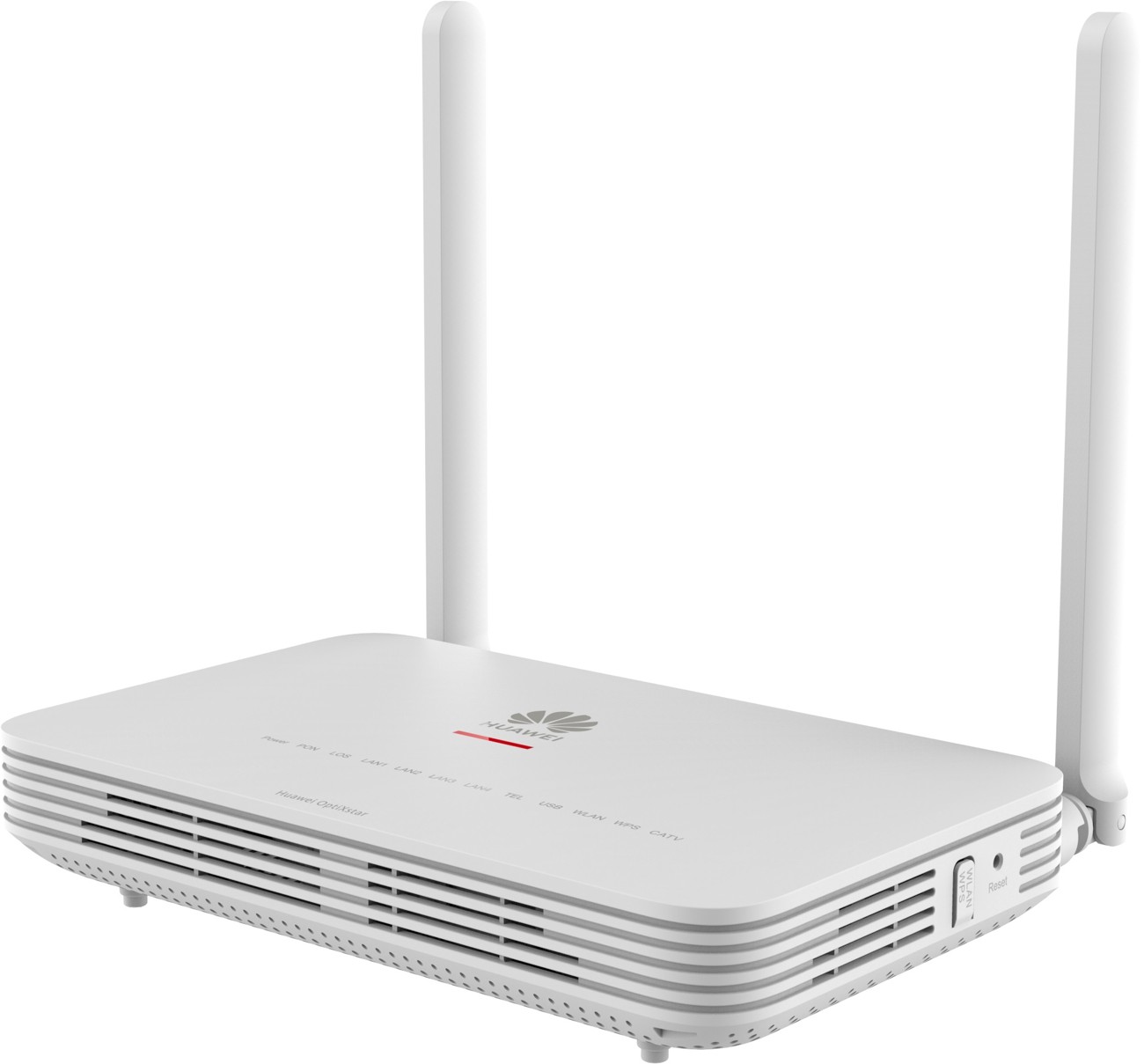

Product description
The Huawei OptiXstar EG8147X6-10 is an intelligent GPON and Wi Fi routing t ype ONT. It uses the GPON Wi Fi technology to implement ultra broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all optical access solutio n and future oriented service support capability.
It provides four GE ports, one POTS port, one CATV port, one USB port and Wi Fi function.
