Huawei OptiXstar EN8245X6s-8N, XGS-PON ONT Gateway, WiFi 6
Huawei OptiXstar EN8245X6s-8N, XGS-PON ONT Gateway, WiFi 6
×
0/0
Your price excl. VAT
124.00 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 124.06 EUR |
| Your price incl. VAT (21%) | 150.11 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10904349 | |
| Part No. | EN8245X6s-8N | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
4804
Transmission speed - 2.4GHz [Mb/s]:
1148
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Antenna gain [dBi]:
2
Optics
Transmission speed:
2.5 Gbps
Wavelength - Tx/Rx [nm]:
1260 up to 1280 / 1575 up to 1580
Transfer type:
XGS-PON
Polishing type:
APC
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 10/100/1000/2500Mbps + (3) 10/100/1000Mbps
Power
Max. power consumption [W]:
30
Power via connector/terminal:
12V / 3A
Physical characteristics
Operating temperature [°C]:
0 up to 40
Width [mm]:
217
Height [mm]:
248
Depth [mm]:
72
Product description

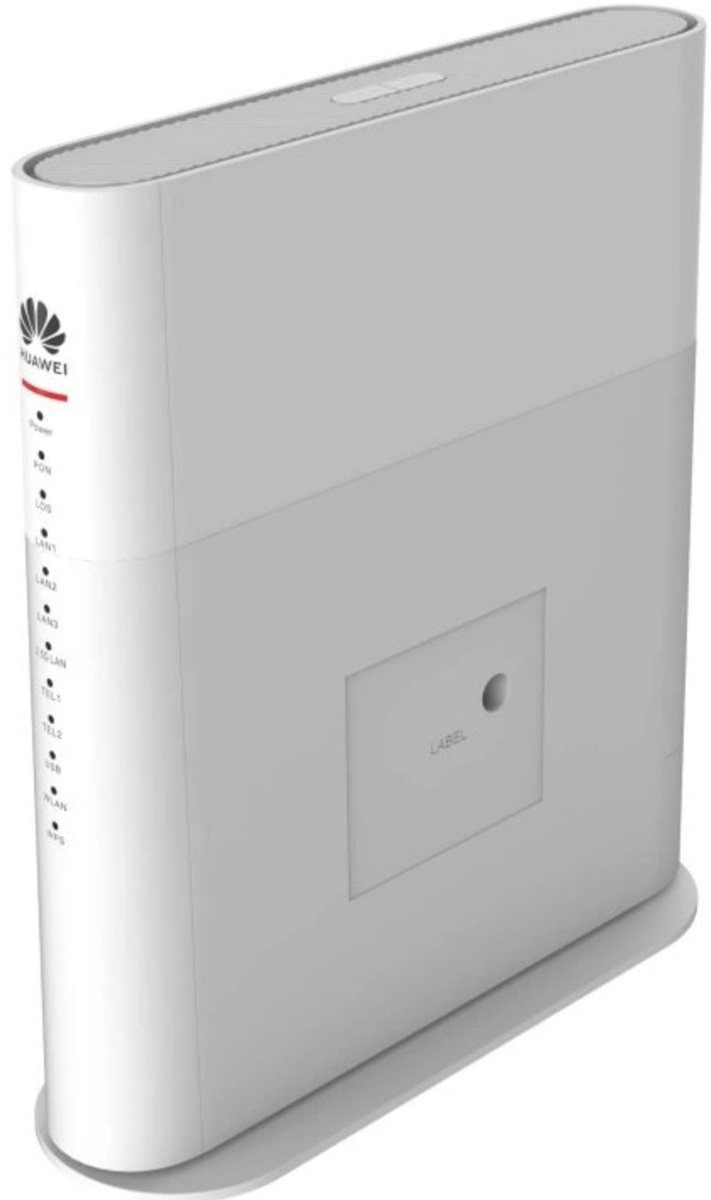

The Huawei OptiXstar EN8245X6s-8N is an intelligent ONT router utilizing XGS-PON and Wi-Fi 6 technologies. It provides ultra-broadband access, high performance, and extensive coverage. The device offers 1x 2.5 Gbit and 3x 1 Gbit Ethernet ports, 2x POTS ports, and a USB port. For the PON network, there is 1x SC/APC connector available.
Fast access to the wireless network is ensured by Wi-Fi 6 in the 2.4 & 5 GHz bands, supporting 4x4 MU-MIMO, with maximum transfer speeds reaching 1147 + 4804 Mbit/s. It also supports WPA3, beamforming, and band steering.
With the USB 2.0 port, you can easily turn your router into a home multimedia center. The device supports FPT, DLNA, or SAMBA protocols, including printer sharing options.
Contents of the Package
Download
Datasheet Quick Start GuideBussines information
