Huawei OptiXstar EN8255X6s-8X, XGS-PON ONT Gateway, WiFi 6
Huawei OptiXstar EN8255X6s-8X, XGS-PON ONT Gateway, WiFi 6
×
0/0
Your price excl. VAT
126.59 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 126.65 EUR |
| Your price incl. VAT (21%) | 153.25 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907067 | |
| Part No. | EN8255X6s-8X | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
EN8010Ts-20
71.79 EUR excl. VAT
86.94 EUR incl. VAT
Ordered, unknown date
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
4804
Transmission speed - 2.4GHz [Mb/s]:
1148
Security:
WPA3 AES
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Antenna gain [dBi]:
2
Optics
Transmission speed:
9,95 / 9,95 Gbps
Wavelength - Tx/Rx [nm]:
1260 up to 1280 / 1575 up to 1580
Transfer type:
XGS-PON
Polishing type:
APC
Receiver sensitivity [dBm]:
-28
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 100M/1G/2.5G/5G/10G + (4) 10/100/1000M
Power
Max. power consumption [W]:
30
Power via connector/terminal:
12V / 3A
Physical characteristics
Buttons:
Reset, WPS, power, WiFi
Operating temperature [°C]:
0 up to 40
Width [mm]:
250
Height [mm]:
186
Depth [mm]:
52
Product description

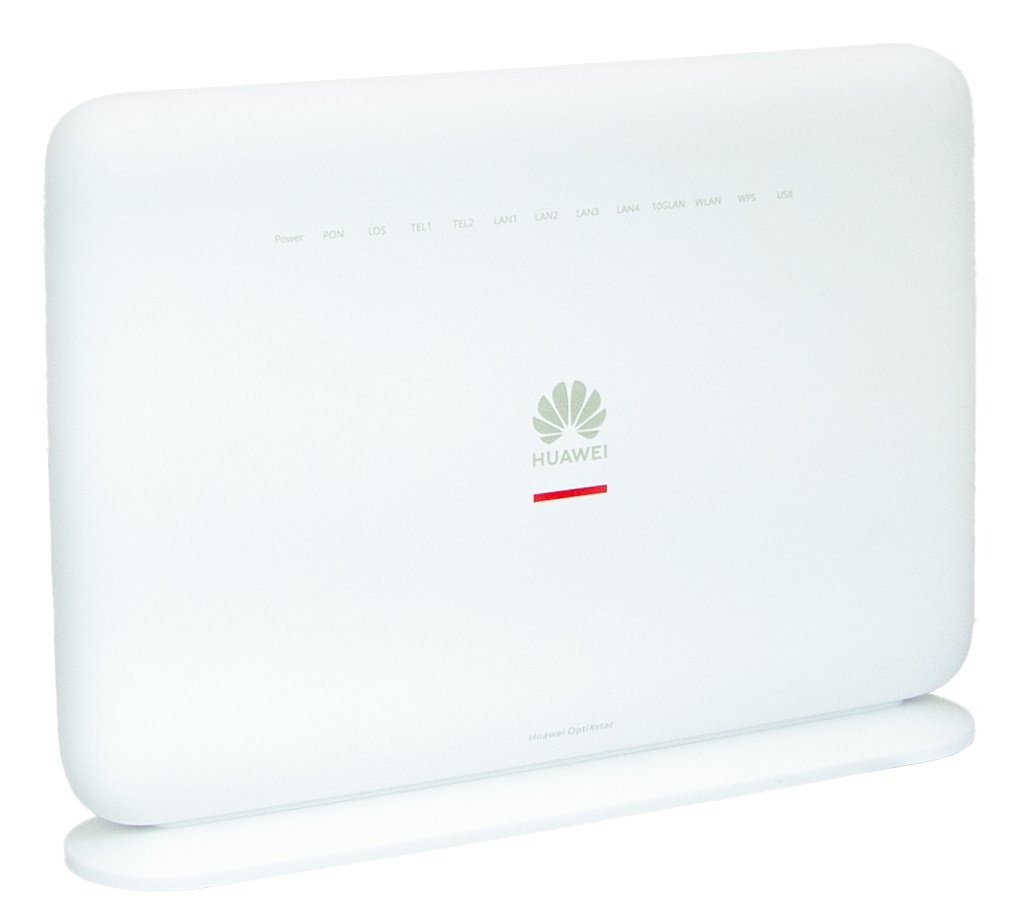

Huawei OptiXstar EN8255X6s-8X is an XGS-PON and Wi-Fi 6 routing-type ONT. It uses the XGS-PON and Wi-Fi 6 technologies to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

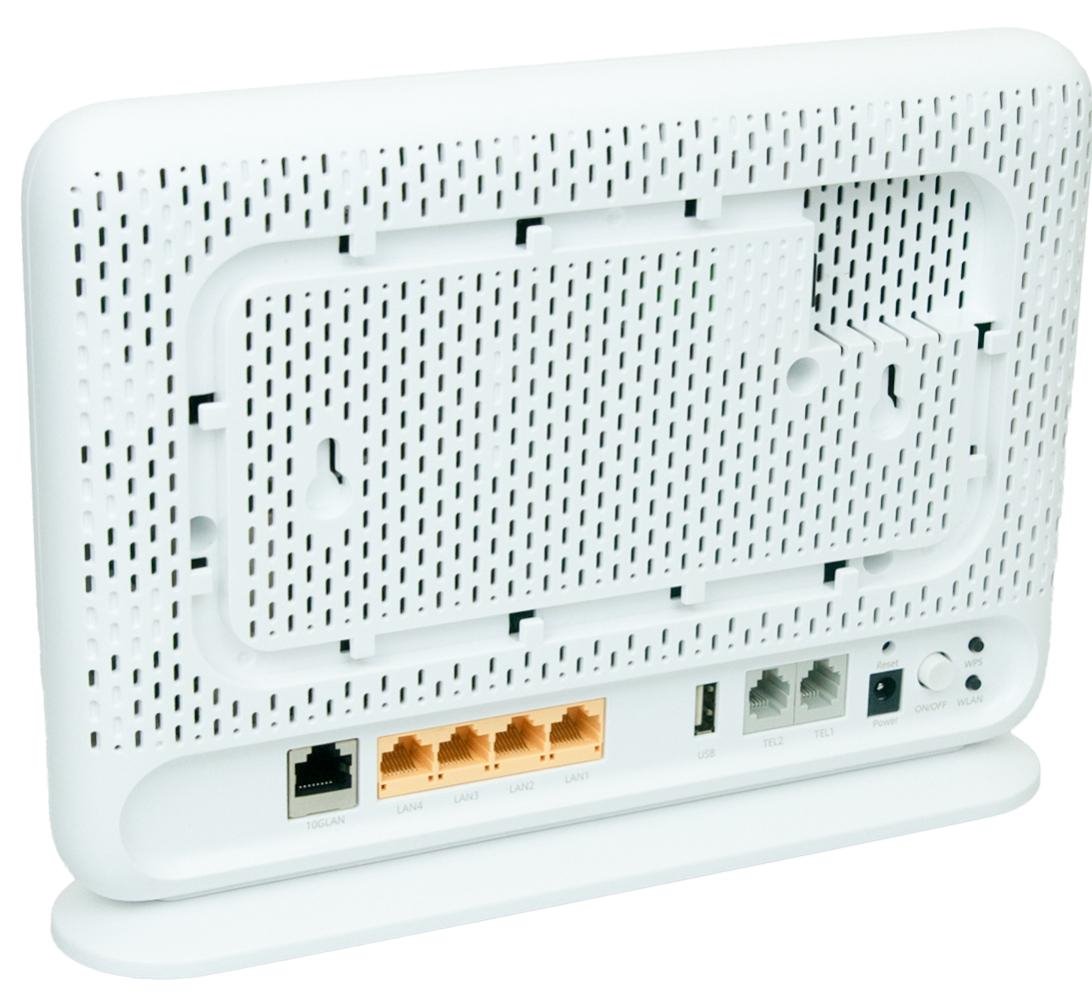

It provides one 10GE port, four GE ports, two POTS ports, one USB port and 2.4GHz&5GHz Wi-Fi 6 function.
Download
Datasheet Quick Start GuideBussines information
