Huawei OptiXstar EG8041X6-10, GPON ONT Gateway, WiFi 6
Huawei OptiXstar EG8041X6-10, GPON ONT Gateway, WiFi 6
×
0/0
Your price excl. VAT
53.52 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 53.58 EUR |
| Your price incl. VAT (21%) | 64.83 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10904350 | |
| Part No. | EG8041X6-10 | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Fixed
Fixed antennas:
2
Antenna gain [dBi]:
7, 5
Optics
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
1310 / 1490
Transfer type:
GPON
Polishing type:
APC
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(4) 10/100/1000Mbps
Power
Max. power consumption [W]:
11,7
Power via connector/terminal:
12V / 1A
Physical characteristics
Buttons:
Reset, WPS, power, WiFi
Operating temperature [°C]:
0 up to 40
Weight [g]:
237
Width [mm]:
155
Height [mm]:
35
Depth [mm]:
105
Product description

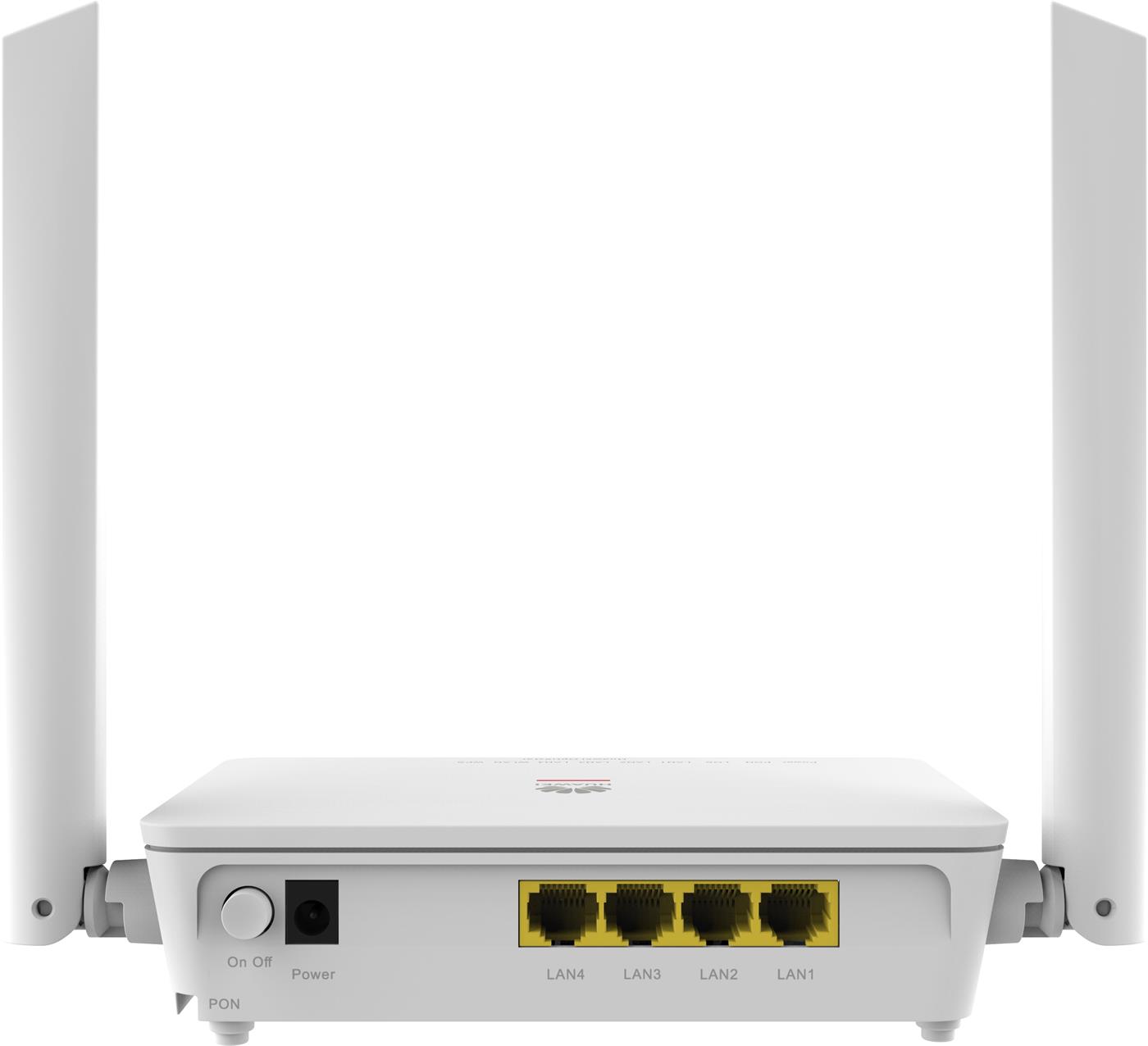

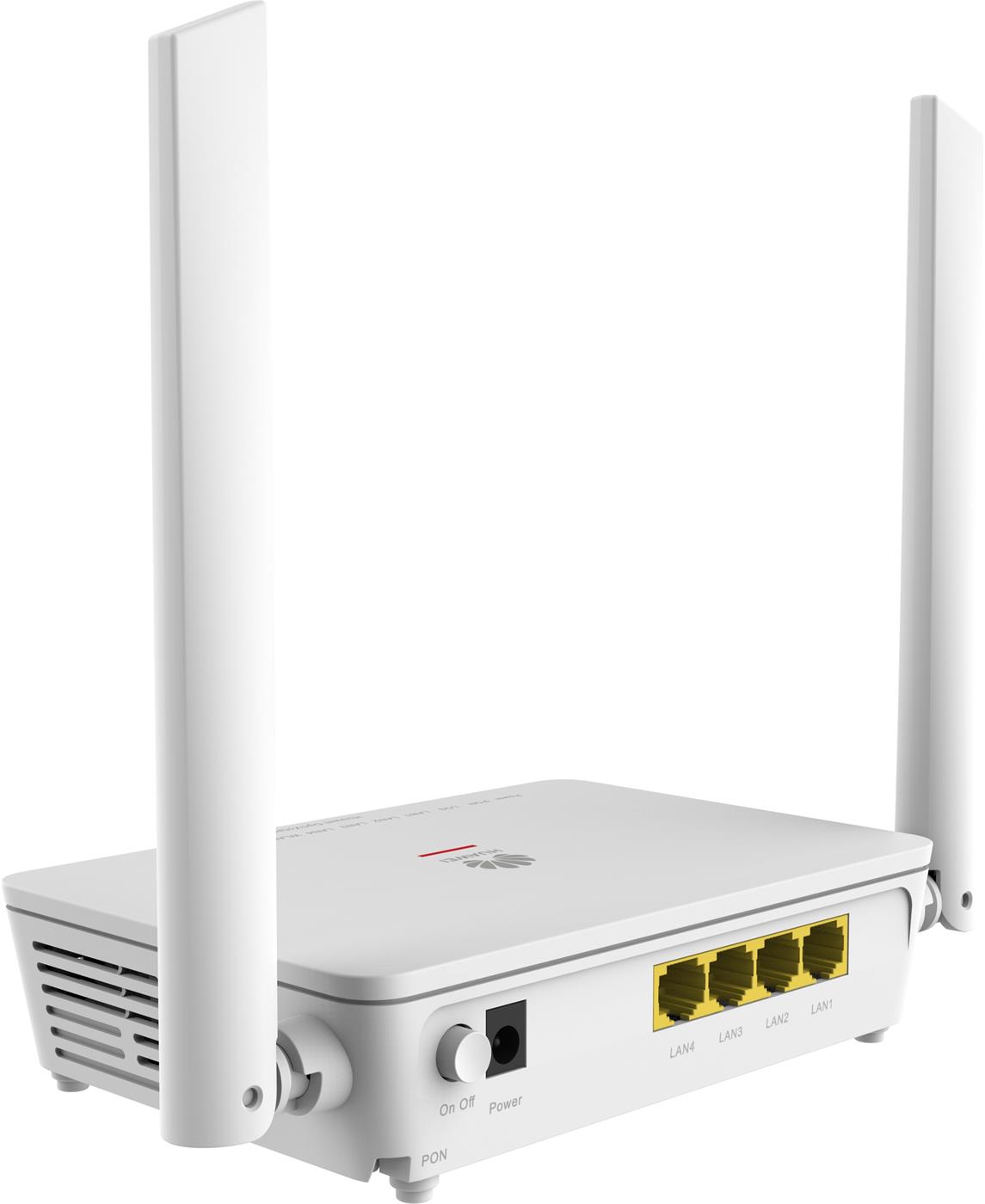

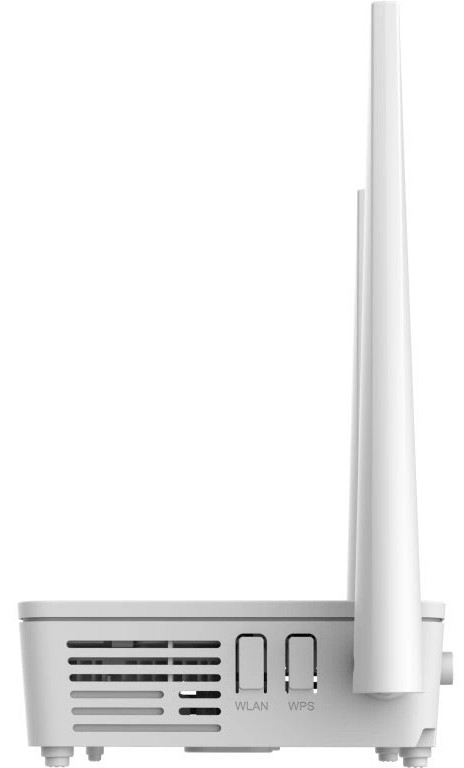

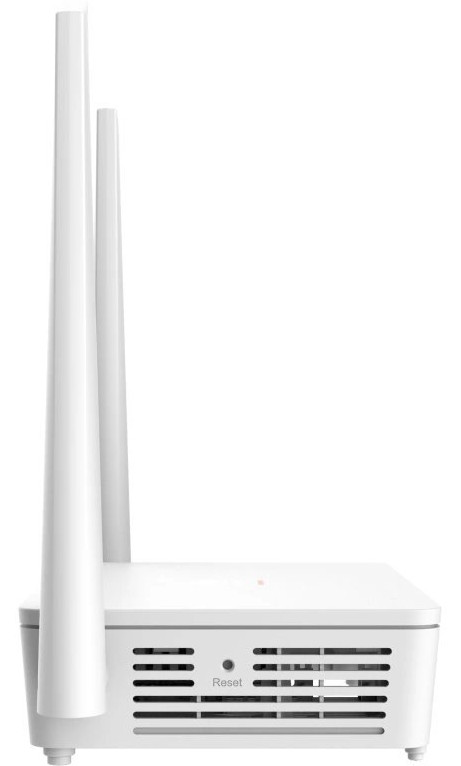

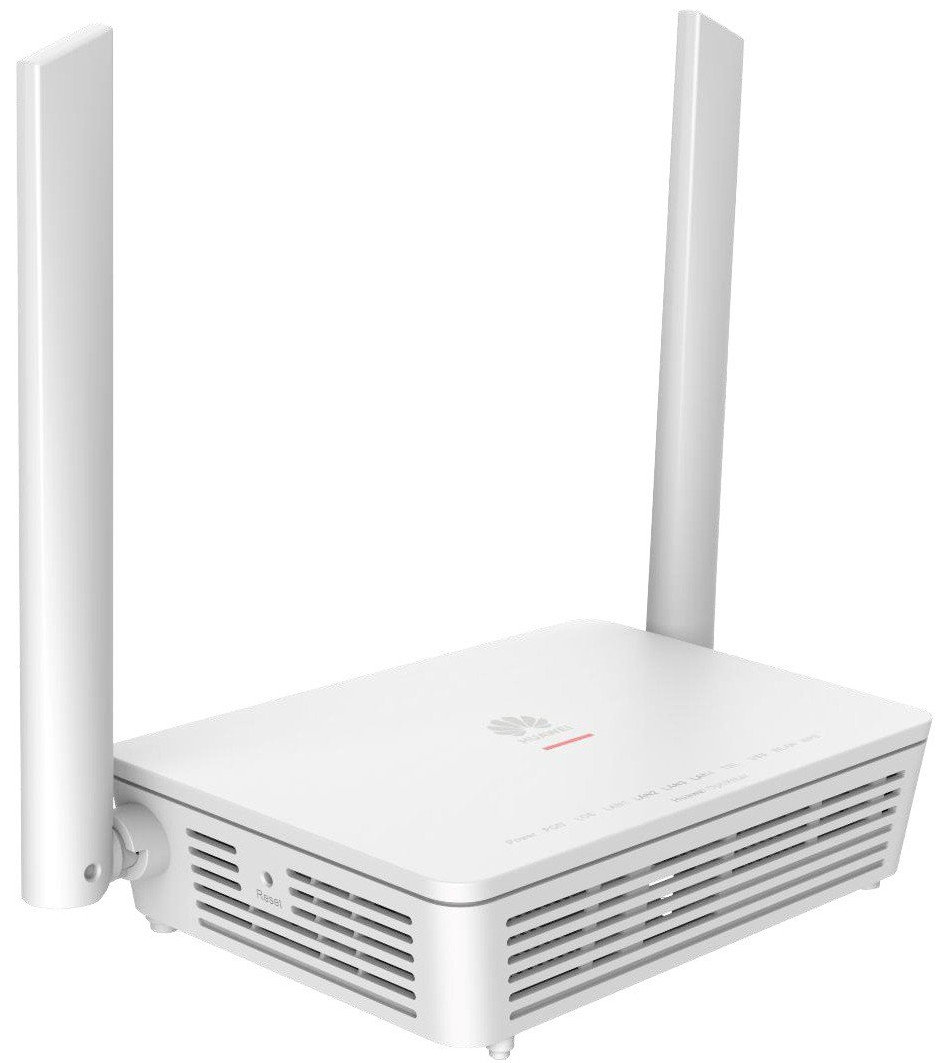

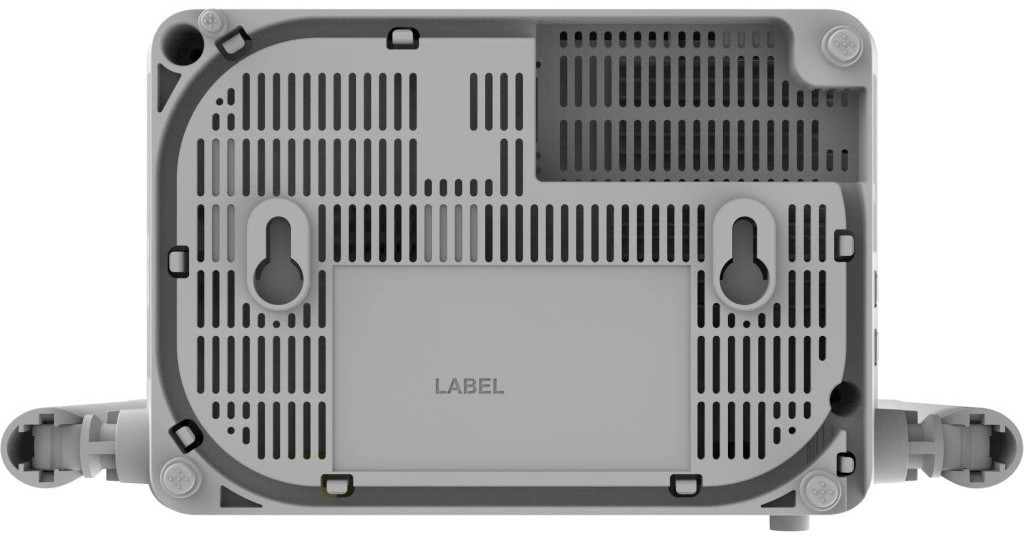

The Huawei OptiXstar EG8041X6-10 is a GPON ONT Gateway with support for Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and a maximum transmission speed of 2402 Mb/s on 5 GHz and 574 Mb/s on 2.4 GHz. The ONT unit is equipped with four LAN ports with speeds of 10/100/1000 Mb/s.
This device is ideal for high-speed internet service providers as it enables extensive coverage, stable and fast data transmission, and efficient network management.
Package contents
Download
Datasheet Quick Start GuideBussines information
