Ubiquiti EdgeSwitch ES-16-150W
Ubiquiti EdgeSwitch ES-16-150W
×
0/0
Temporarily unorderable
Your price excl. VAT
260.75 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 260.82 EUR |
| Your price incl. VAT (21%) | 315.59 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410083 | |
| Part No. | ES-16-150W | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
16 portů, 150W
ES-16-150W
260.75 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(16) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Serial port:
RJ45
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, Passive 24V
PoE Out ports:
16
PoE budget [W]:
150
Max. power consumption [W]:
150
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
443
Height [mm]:
43
Depth [mm]:
221
General
Switchning capacity [Gbps]:
36
MAC address table:
16000
Packet forwarding rate [Mpps]:
26,78
Software
Web management:
Yes
Management:
Web management, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description

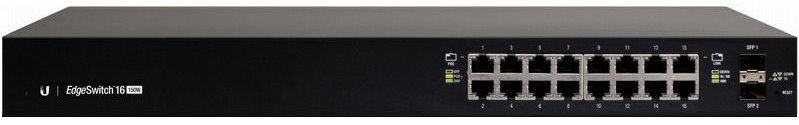

Gigabit L3 PoE switch Ubiquiti EdgeSwitch ES-16-150W in 19" rackmount design with maximum PoE power 150W. Manageable switch with 16 gigabit metallic ports + (2) Gigabit SFP ports and 36Gbps total throughput.
Passive 24V and 802.3af/at PoE
Its biggest advantage is Gigabit PoE on each port, which can be set to be active PoE 802.3af/at with maximum power 34.2W/port or passive 24V with maximum power 17W/por. Automatic detection ensures full functionality of 802.3af and 802.3at devices without prior configuration. Passive 24V PoE must be set manually. Thanks to these features, one active element can be used to power all devices in your network!
Advanced UI
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including: MSTP/RSTP/STP, VLAN, Link Aggregation, DHCP snooping, RADIUS, 802.1X and much more.
