Ubiquiti EdgeSwitch ES-8-150W
Ubiquiti EdgeSwitch ES-8-150W
×
0/0
Your price excl. VAT
174.73 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 174.80 EUR |
| Your price incl. VAT (21%) | 211.51 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10410138 | |
| Part No. | ES-8-150W | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
8 portů, 150W
ES-8-150W
174.73 EUR
FS-A1-250-B
17.12 EUR excl. VAT
20.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Serial port:
RJ45
Power
Power type:
Mains power (230V), DC terminal
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, Passive 24V
PoE Out ports:
8
PoE budget [W]:
150
Max. power consumption [W]:
150
Power via connector/terminal:
42 .. 56V DC, 230V AC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-25 up to 60
Width [mm]:
235
Height [mm]:
43
Depth [mm]:
204
General
Switchning capacity [Gbps]:
20
MAC address table:
16000
Packet forwarding rate [Mpps]:
14,9
Software
Web management:
Yes
Management:
Web management, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.1.2
Default login and password:
ubnt / ubnt
Product description

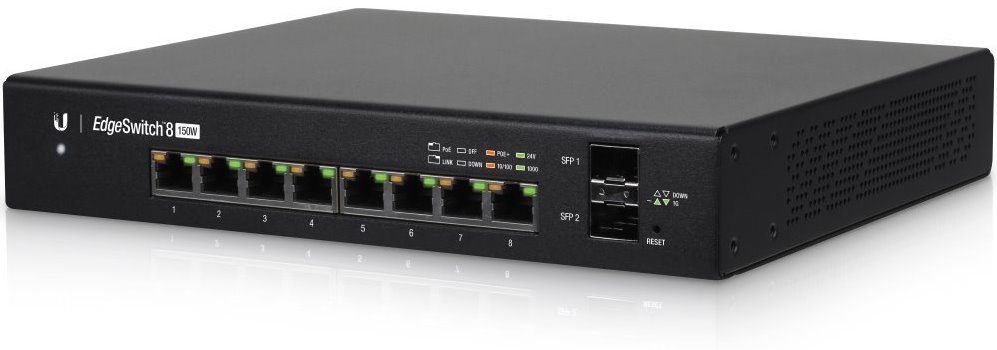

ES-8-150W is L3 Gigabit desktop PoE switch version with 150W POE output power. Managable switch with 8 Gigabit ethernet ports + 2 Gigabit SFP ports and a total throughput 10Gbps.
Biggest advantage is a Gigabit PoE on every port that can be set as active PoE 802.3af /at with maximum output power 34,2W/port or Passive 24V with maximum output power 17W/port. Automatic detection ensures full functionality 802.3af and 802.3at devices without prior configuration. Passive 24V PoE must be set manually.

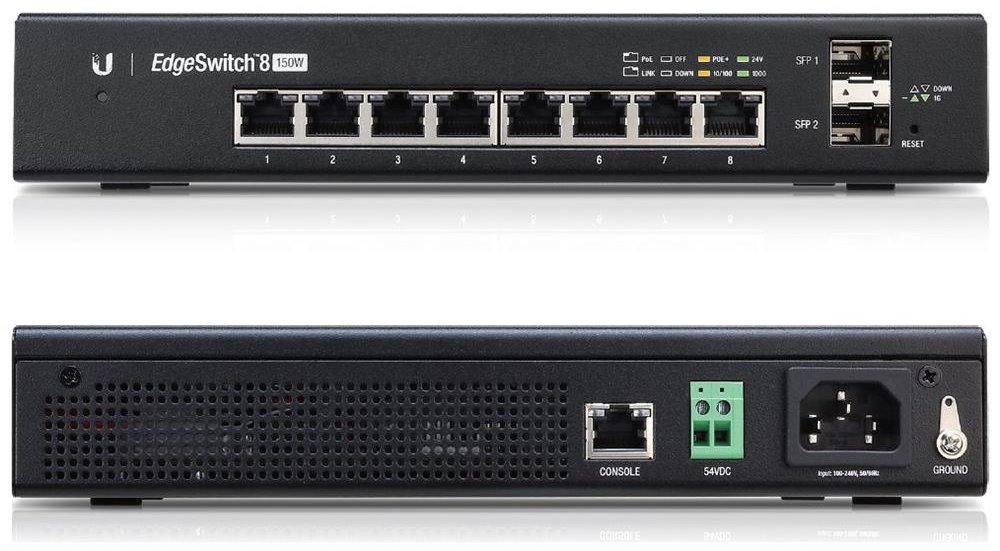

Other advantages of the switch is silent, because has no fan. Other advantages are Redundant or direct DC power supply. Switch can be powering with 230V AC input and DC terminal input with variable power from 42 to 56V.
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

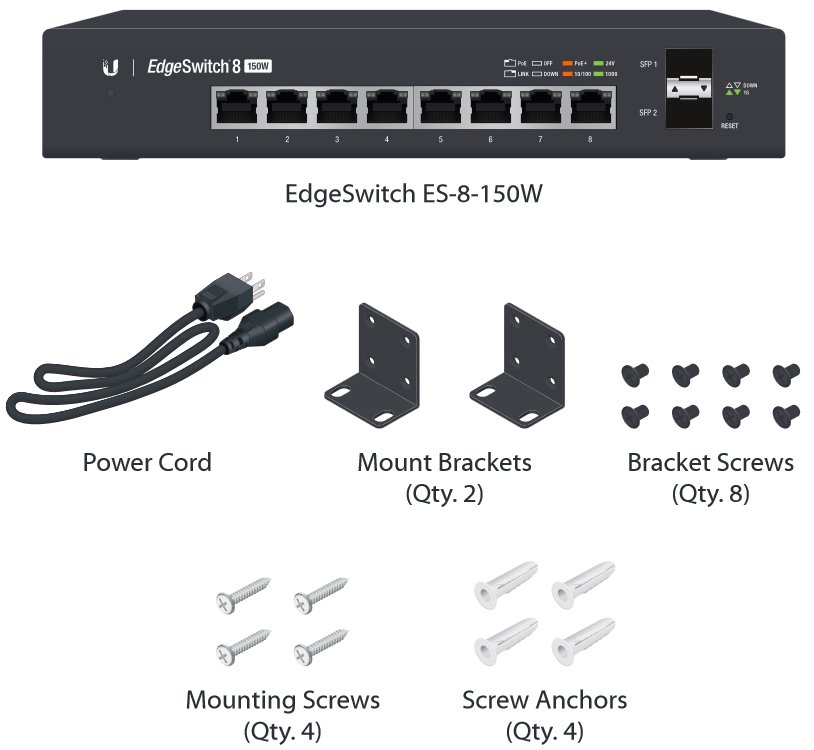

Package contains
Download
Admin Guide Datasheet Latest Firmware Quick Guide SFP compatible listTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
