Ubiquiti EdgeSwitch ES-48-500W

Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
×
0/0
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W
Ubiquiti EdgeSwitch ES-48-500W

Your price excl. VAT
676.75 EUR
Recycling fee 0.07 EUR
Your price with RF 676.82 EUR
Your price incl. VAT (21%) 818.95 EUR
blank
Not in stock
PlzeňNot in stock
Availability
at our branches
 Per orig. box:  2 pcs.
Manufacturer

Ubiquiti

Code10410065
Part No.ES-48-500W
Warranty 24 months
You have a choice of 3 variantscompare all
Ubiquiti EdgeSwitch ES-48-500W
48 portů, 500W
ES-48-500W
676.75 EUR
Not in stock
Ubiquiti EdgeSwitch ES-8-150W
8 portů, 150W
ES-8-150W
177.51 EUR
In Stock
Ubiquiti EdgeSwitch ES-24-250W
24 portů, 250W
ES-24-250W
355.06 EUR
In Stock
  • Related products7
Gembird Power cord 230V, 1,8m, angled
PC-186A-VDE

4.46 EUR excl. VAT
5.40 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
ML-S+85D-03

8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
ML-S+31D-10

13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
ML-S+2733-10

18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
ML-S+3327-10

18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
show moreshow less 2
Parameters
Download
GPSR

Product description

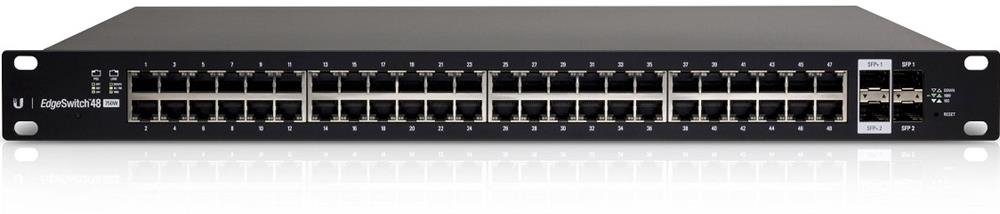

Gigabit L3 PoE switch Ubiquiti EdgeSwitch ES-48-500W in 19" rackmount design with maximum PoE power 500W. Manageable switch with 48 gigabit metallic ports + (2) Gigabit SFP ports + (2)1/10G SFP+ ports and 70Gbps total throughput.

Passive 24V and 802.3af/at PoE

Its biggest advantage is Gigabit PoE on each port, which can be set to be active PoE 802.3af/at with maximum power 34.2W/port or passive 24V with maximum power 17W/por. Automatic detection ensures full functionality of 802.3af and 802.3at devices without prior configuration. Passive 24V PoE must be set manually. Thanks to these features, one active element can be used to power all devices in your network!

UBNT ES-48-500W

24 vs. 48-port models

Compared to 24 port models, 48 port models are equipped with two SFP+ ports for uplink with 10 Gbps.

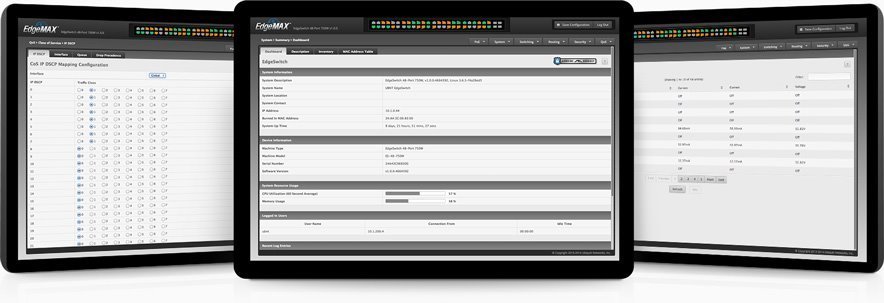

Advanced UI

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including: MSTP/RSTP/STP, VLAN, Link Aggregation, DHCP snooping, RADIUS, 802.1X and much more.

UBNT ES-48-500W

Package contains

  • Device
  • Rackmount screws
  • Power cord

GPSR

Contact:
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (48) 10/100/1000Mbps
Optical interfaces: (2) 1000Mbps + (2) 1G/10Gbps
Serial port: RJ45

Power

Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at, Passive 24V
PoE Out ports: 48
PoE budget [W]: 500
Max. power consumption [W]: 500
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: Yes
Chassis design: Metal
Buttons: Reset
Operating temperature [°C]: -5 up to 40
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 375

General

Switchning capacity [Gbps]: 70
MAC address table: 16000
Packet forwarding rate [Mpps]: 104,16

Software

Web management: Yes
Management: Web management, SSH, Telnet
Features: L3, VLAN, QoS, DHCP snooping
Default IP address: 192.168.1.2
Default login and password: ubnt / ubnt
