MikroTik RouterBOARD RBwAPR-2nD&R11e-LR9, wAP LoRa9 kit
Your price excl. VAT
126.07 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 126.14 EUR |
| Your price incl. VAT (21%) | 152.63 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300576 | |
| Part No. | RBwAPR-2nD&R11e-LR9 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
LoRa9 (902 - 928MHz)
RBwAPR-2nD&R11e-LR9
126.07 EUR
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
ODR-wAP
18.75 EUR excl. VAT
22.69 EUR incl. VAT
In Stock
868_Omni_antenna
37.38 EUR excl. VAT
45.47 EUR incl. VAT
In Stock
ML-WAP-H
9.16 EUR excl. VAT
11.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 902 - 928 MHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
1
Antenna gain [dBi]:
2
Connectors and Interfaces
RF connectors:
(1) SMA female
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
9 .. 30V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Outdoor, Ceiling
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

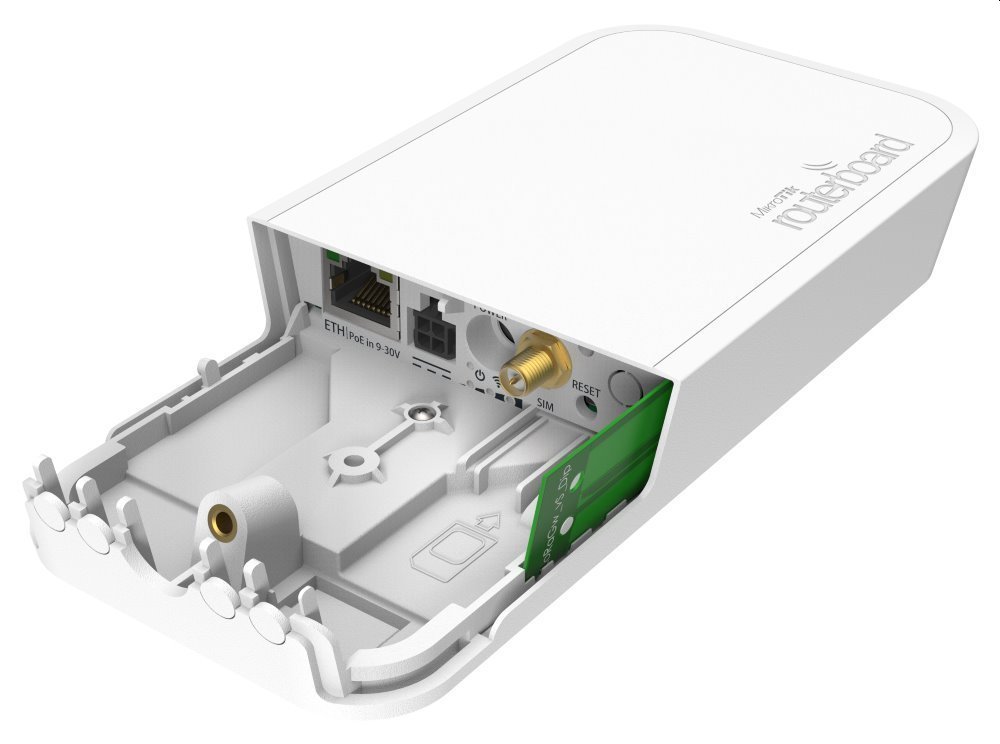

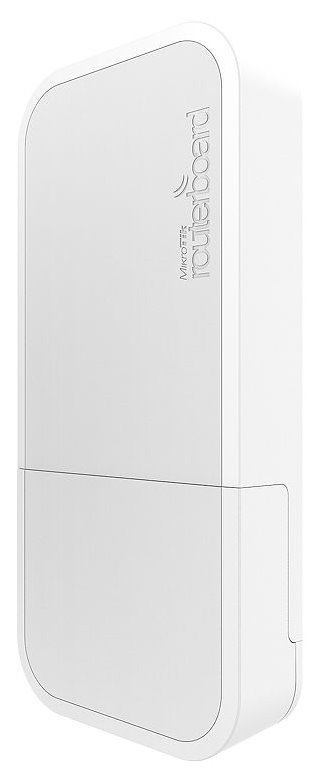

wAP LR9 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR9 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.
What is LoRa Network?
Our LoRa are ready to work with "The Things Network" - the famous open source infrastructure that provides free LoRaWAN network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internet of things within a day. And it is easily upgradable to enterprise-grade network "The Things Industries".
Cattle tracking, smart irrigation, level monitors for liquids, smart pulse sensors and thermostats, smart parking and so on – the possibilities are endless. And the setup is so easy, anyone can learn it. There is a large community of developers and enthusiasts all around the globe – you will never be alone with your questions and ideas regarding the LoRaWAN network. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!

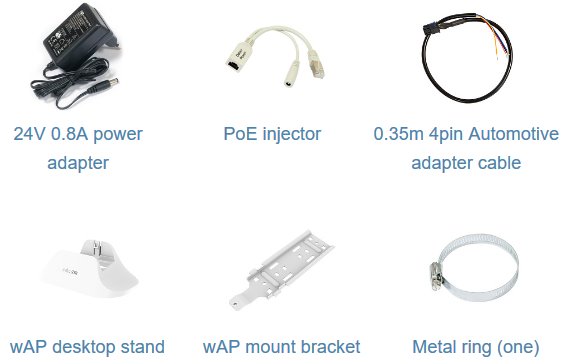

Package contains
Download
Datasheet FCC1 FCC2 Firmware (RouterOS / SwOS) Quick GuideGPSR
