MikroTik RouterBOARD RBwAPR-2nD&R11e-LR8G, wAP LR8G kit
MikroTik RouterBOARD RBwAPR-2nD&R11e-LR8G, wAP LR8G kit
×
0/0
New product
Your price excl. VAT
105.77 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 105.84 EUR |
| Your price incl. VAT (21%) | 128.07 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10904416 | |
| Part No. | RBwAPR-2nD&R11e-LR8G | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
LR8G (863 - 870MHz)
RBwAPR-2nD&R11e-LR8G
105.77 EUR
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 863 - 870 MHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
2
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
1
GPS modul:
Yes
Power
Power over Ethernet:
10 .. 28V DC
Power type:
DC connector, PoE, 4-pin automotive
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Power via connector/terminal:
10 .. 28V DC
Physical characteristics
Design:
Outdoor, On the wall, On the mast
Operating temperature [°C]:
-40 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS v7 - L4
Product description

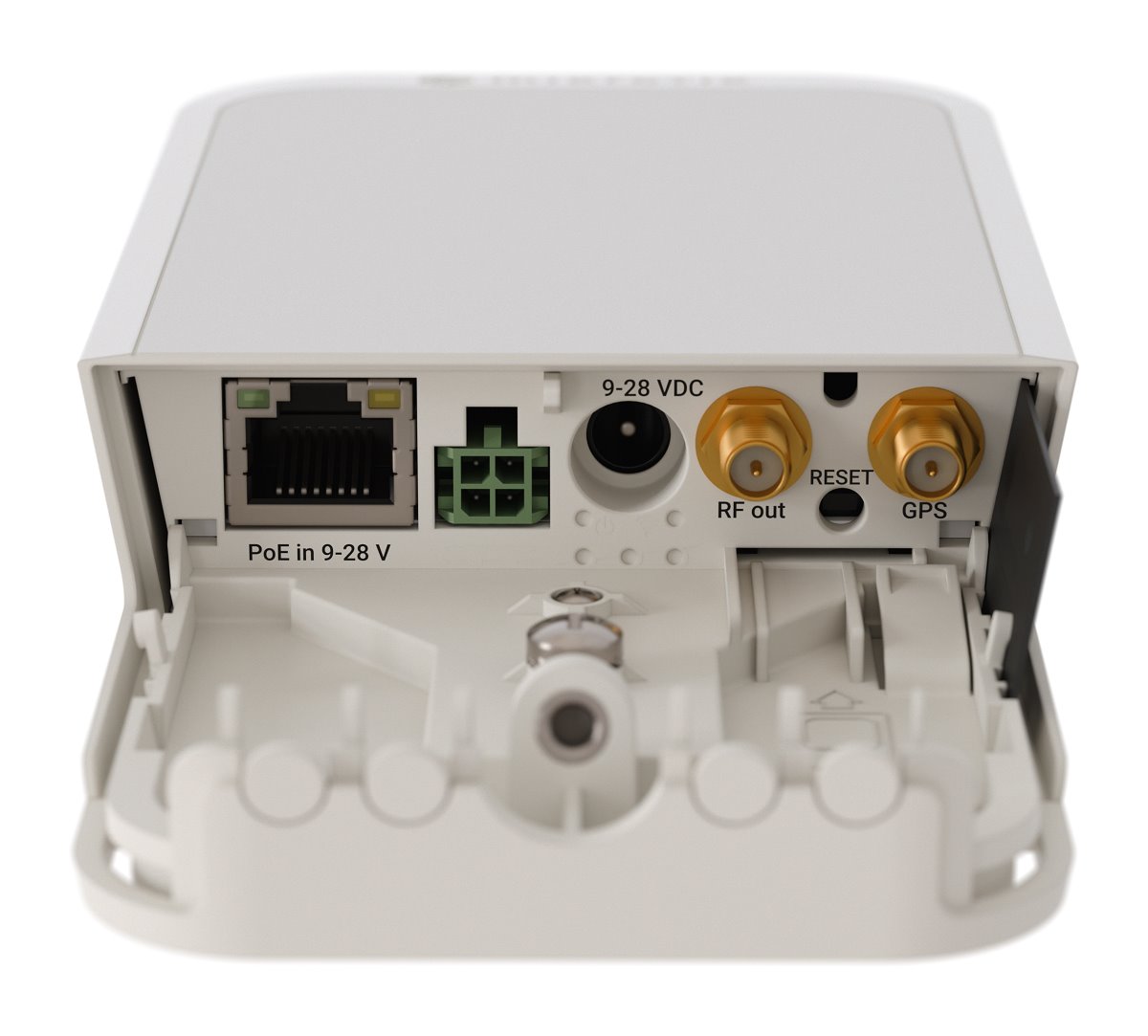

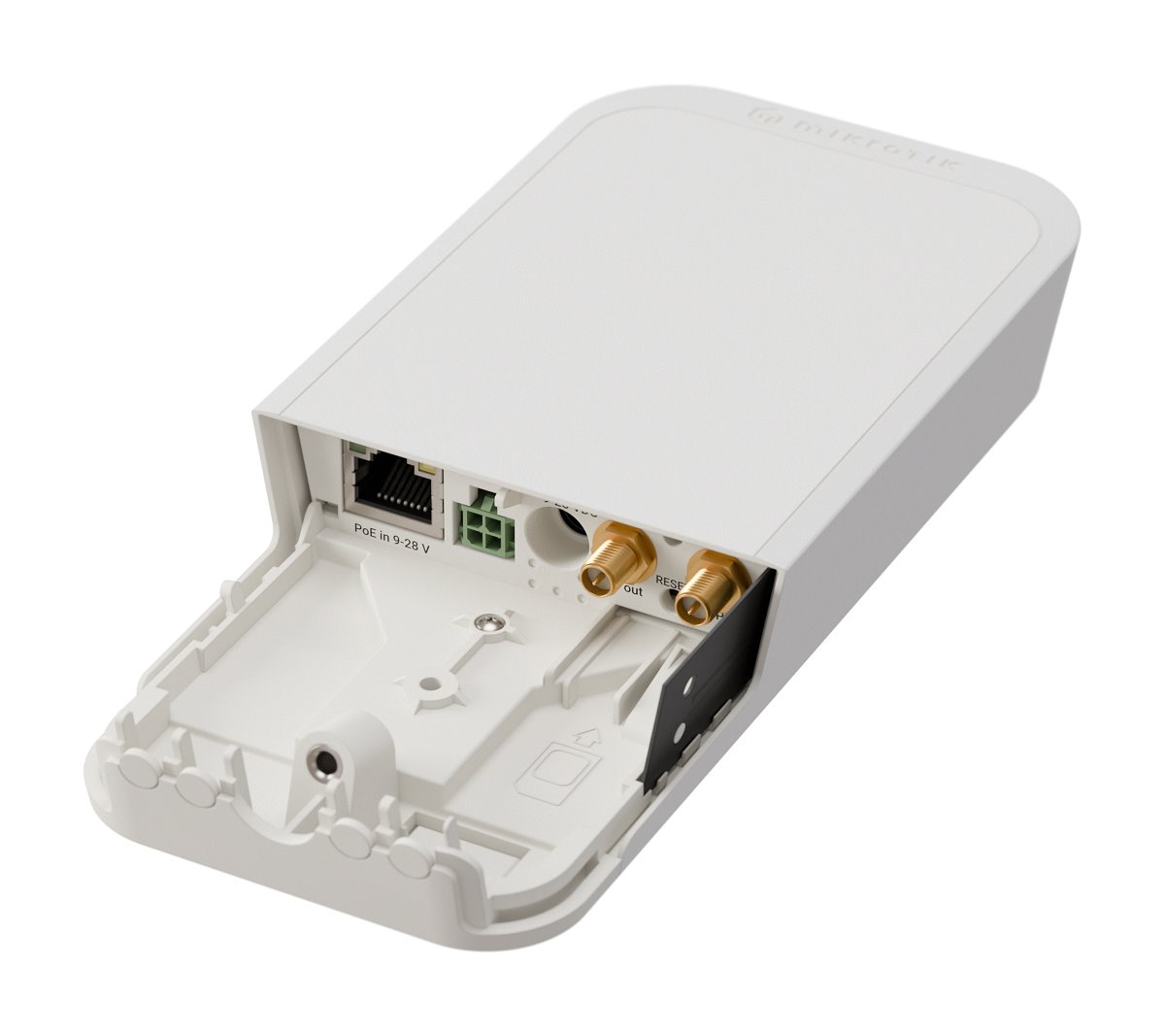

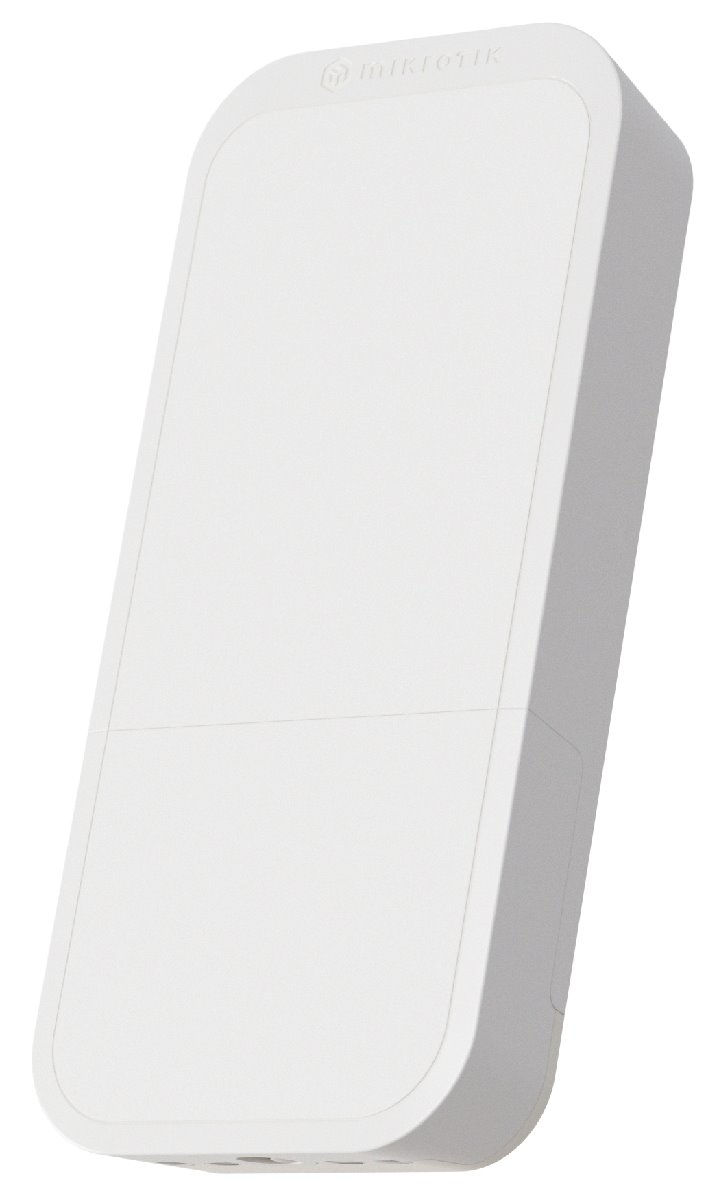

wAP LR8G kit is a complete out-of-the-box solution for use as LoRaWAN gatewayk. The device includes a pre-installed R11e-LR8G module, 1 Ethernet port RJ45, and a 2.4GHz wireless card. All of this comes in the familiar wAP design for outdoor installation on walls or poles.
Thanks to the use of the new LR8G LoRa module, the devicebrings reliable LoRa solutions at an even better price. The wAP LR8G kit supports frequencies 863 - 870 MHz and the updated LoRa module delivers enhanced Rx sensitivity up to -141 dBm, extending your range and improving reliability—even in rough conditions..
What is LoRa good for?
The LoRa network (Long Range) is ideal for long-distance wireless communication with low power consumption, making it perfect for Internet of Things (IoT) applications. It uses low-frequency bands and allows devices to connect over tens of kilometers, making it suitable for monitoring sensors, smart meters, or outdoor equipment.

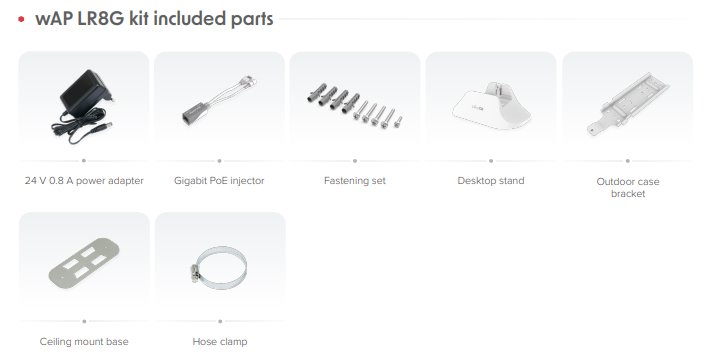

Package Contents
