MikroTik RouterBOARD RBwAPR-2nD&R11e-LR8, wAP LoRa8 kit
Your price excl. VAT
124.08 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 124.15 EUR |
| Your price incl. VAT (21%) | 150.22 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300574 | |
| Part No. | RBwAPR-2nD&R11e-LR8 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
LoRa8 (863 - 870MHz)
RBwAPR-2nD&R11e-LR8
124.08 EUR
ETH-SP-G2
9.85 EUR excl. VAT
12.00 EUR incl. VAT
In Stock
ODR-wAP
18.62 EUR excl. VAT
22.53 EUR incl. VAT
In Stock
868_Omni_antenna
36.81 EUR excl. VAT
44.78 EUR incl. VAT
In Stock
ML-WAP-H
9.09 EUR excl. VAT
11.00 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 863 - 870 MHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
1
Antenna gain [dBi]:
2
Connectors and Interfaces
RF connectors:
(1) SMA female
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
9 .. 30V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Ceiling, Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

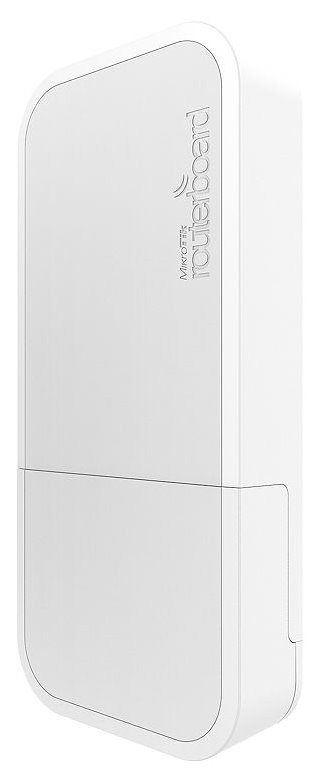

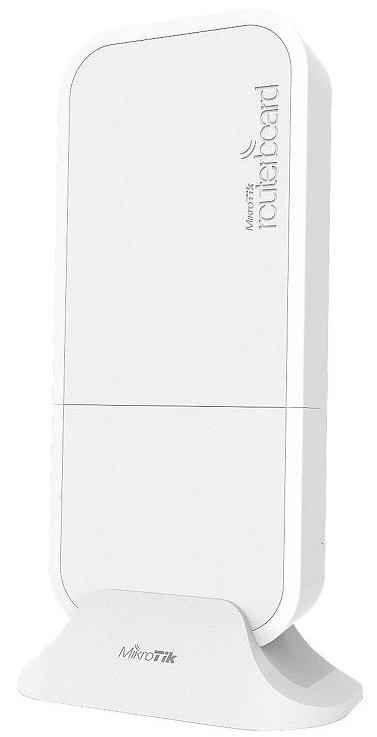

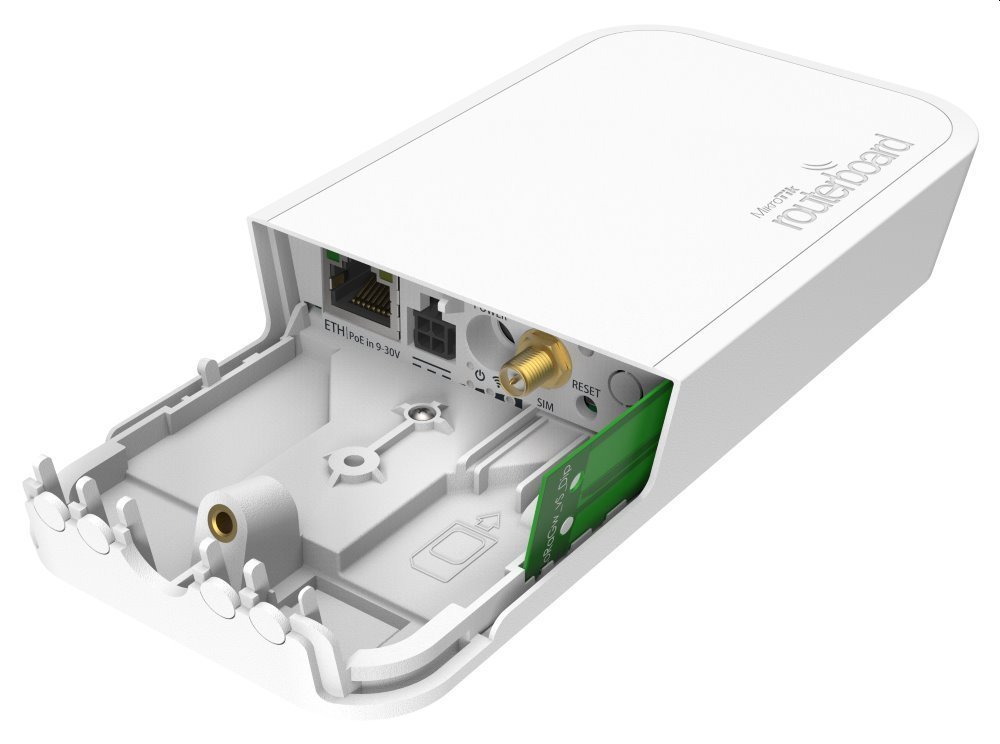

wAP LoRa8 – an out-of-the-box solution to use LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik LoRa Antenna kit.
wAP LoRa8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LoRa8 kit, the long-awaited LoRa solution for LoRa enthusiasts of any level.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
