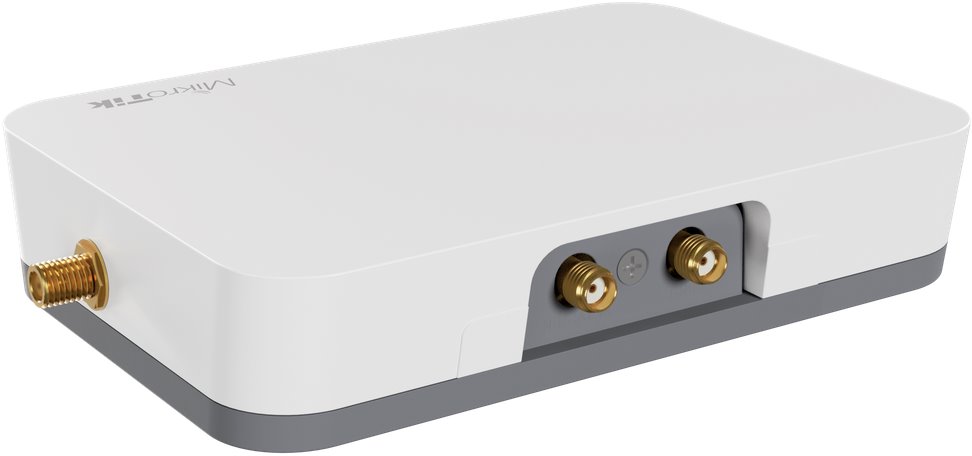

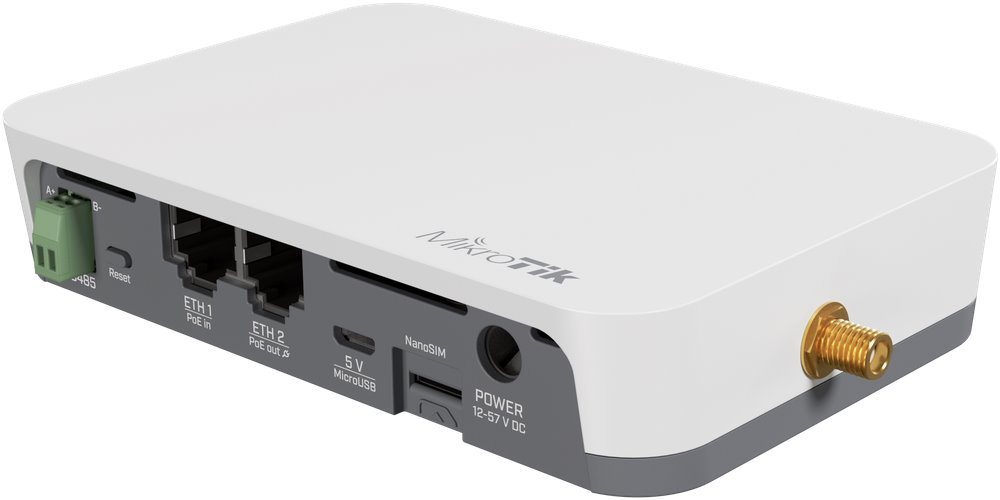

MikroTik RB924iR-2nD-BT5&BG77&R11e-LR9 KNOT LR9 kit - IoT Gateway
Your price excl. VAT
141.92 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 141.99 EUR |
| Your price incl. VAT (21%) | 171.81 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300733 | |
| Part No. | RB924iR-2nD-BT5&BG77&R11e-LR9 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
LoRa 9 (902 - 928 MHz)
RB924iR-2nD-BT5&BG77&R11e-LR9
141.92 EUR
868_Omni_antenna
35.74 EUR excl. VAT
43.49 EUR incl. VAT
In Stock
915_Omni_antenna
35.74 EUR excl. VAT
43.49 EUR incl. VAT
In Stock
HGO-LTE-W
6.12 EUR excl. VAT
7.65 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 902 - 928 MHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
< 2
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (85) 700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (27) 800 MHz

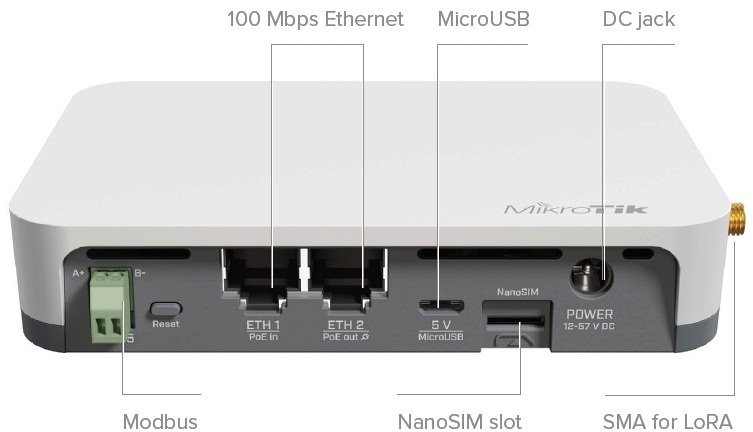

Connectors and Interfaces
RF connectors:
(3) SMA female
LAN speed:
(2) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
1
GPS modul:
Yes
Other features:
Bluetooth, RS485
Power
Power over Ethernet:
12 .. 57V DC
Power type:
PoE, DC connector, USB (5V)
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
PoE budget [W]:
13
Max. power consumption [W]:
5
Power via connector/terminal:
12 .. 57V DC
Physical characteristics
Design:
On the wall, Desktop
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
122
Height [mm]:
26
Depth [mm]:
87
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description
KNOT is a truly universal device with a wide range of connection options and support for protocols and interfaces. It is an IoT Gateway that uses LoRa technology (902 - 928 MHz) but also Narrow Band and CAT-M b>, which are supported by countless mobile operators worldwide including the Czech Republic due to the very low monthly price (compared to LTE) and low bandwidth usage.
KNOT can monitor integrated GPIO, convert RS485/Modbus protocol to TCP/IP as well as Bluetooth packets to TCP/IP using HTTPS or MQTT. You can use KNOT as a transmitter from cable sensors RS485/Modbus to send the data to the Modbus server. Yes, KNOT brings wireless connectivity to wired sensors and actuators such as meters and relays. For example, you can manage a vending machine with temperature and humidity sensors connected to KNOT with just a few megabytes a day!
Key Features

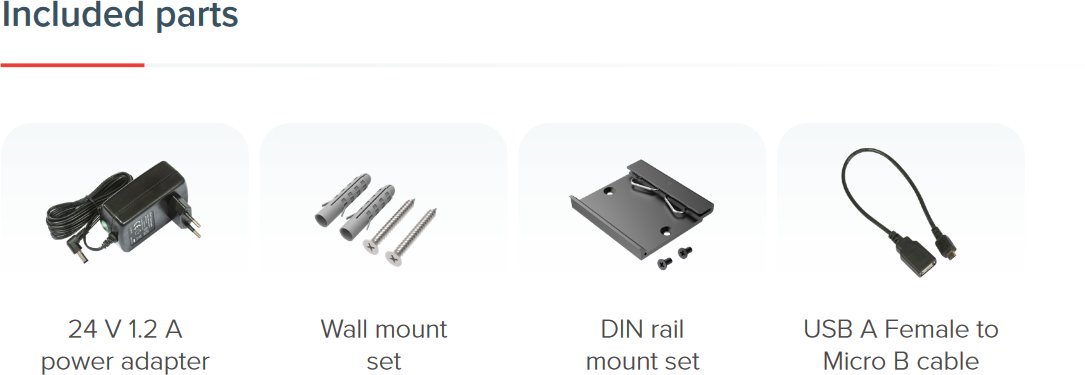

Package contents
Download
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
Bussines information
Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz
