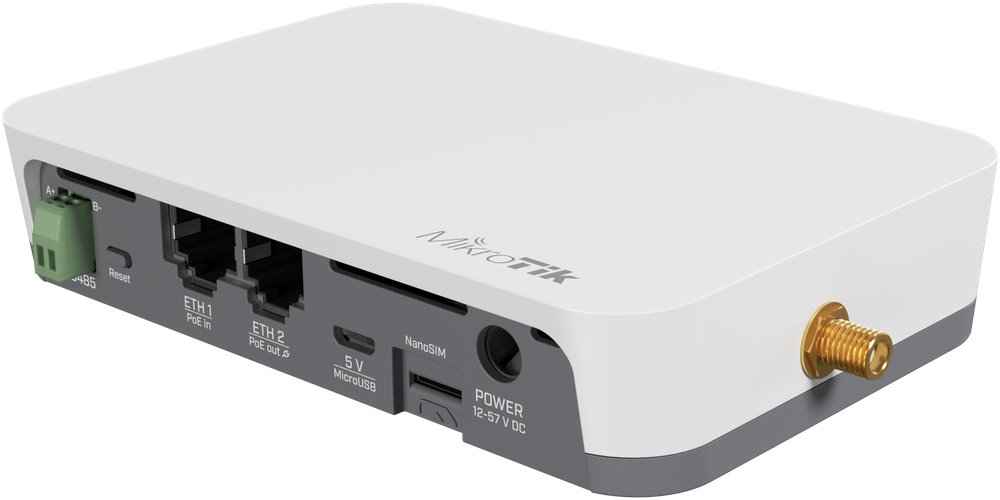

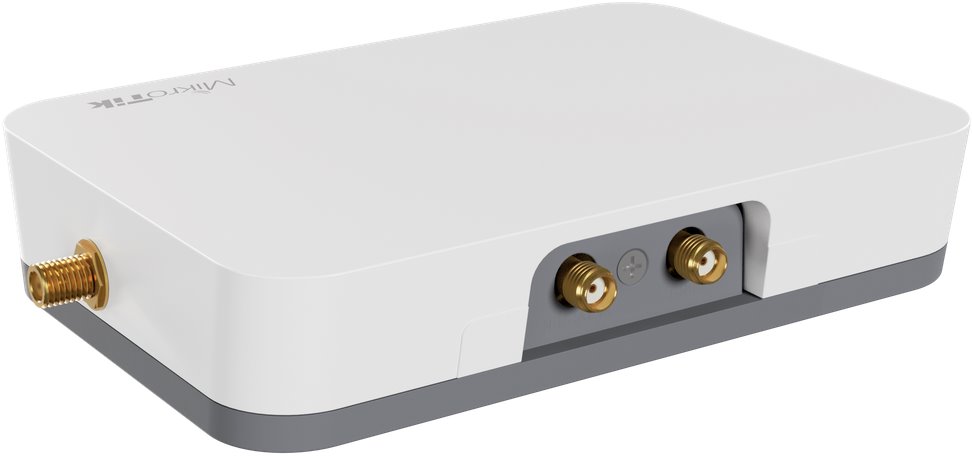

MikroTik RB924iR-2nD-BT5&BG77&R11e-LR8 KNOT LR8 kit - IoT Gateway
Your price excl. VAT
148.53 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 148.60 EUR |
| Your price incl. VAT (21%) | 179.81 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300678 | |
| Part No. | RB924iR-2nD-BT5&BG77&R11e-LR8 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
LoRa 8 (863 - 870 MHz)
RB924iR-2nD-BT5&BG77&R11e-LR8
148.53 EUR
868_Omni_antenna
37.38 EUR excl. VAT
45.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 863 - 870 MHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
22
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
< 2
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (85) 700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (27) 800 MHz
Connectors and Interfaces
RF connectors:
(3) SMA female
LAN speed:
(2) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
1
GPS modul:
Yes
Other features:
Bluetooth, RS485
Power
Power over Ethernet:
12 .. 57V DC
Power type:
PoE, DC connector, USB (5V)
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
PoE budget [W]:
13
Max. power consumption [W]:
5
Power via connector/terminal:
12 .. 57V DC
Physical characteristics
Design:
On the wall, Desktop
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
122
Height [mm]:
26
Depth [mm]:
87
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description
KNOT is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses LoRa (863 - 870 MHz), Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT. You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors and actuators, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!
Key features

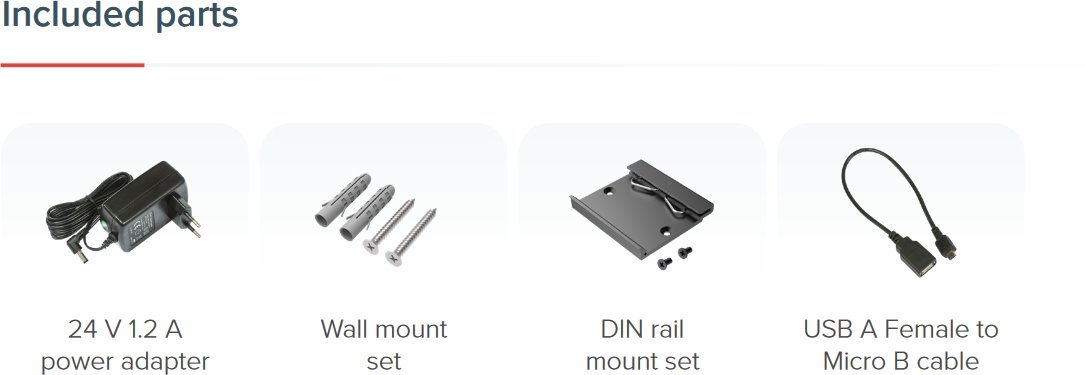

Package contents
Download
CE Datasheet Firmware (RouterOS / SwOS)GPSR
