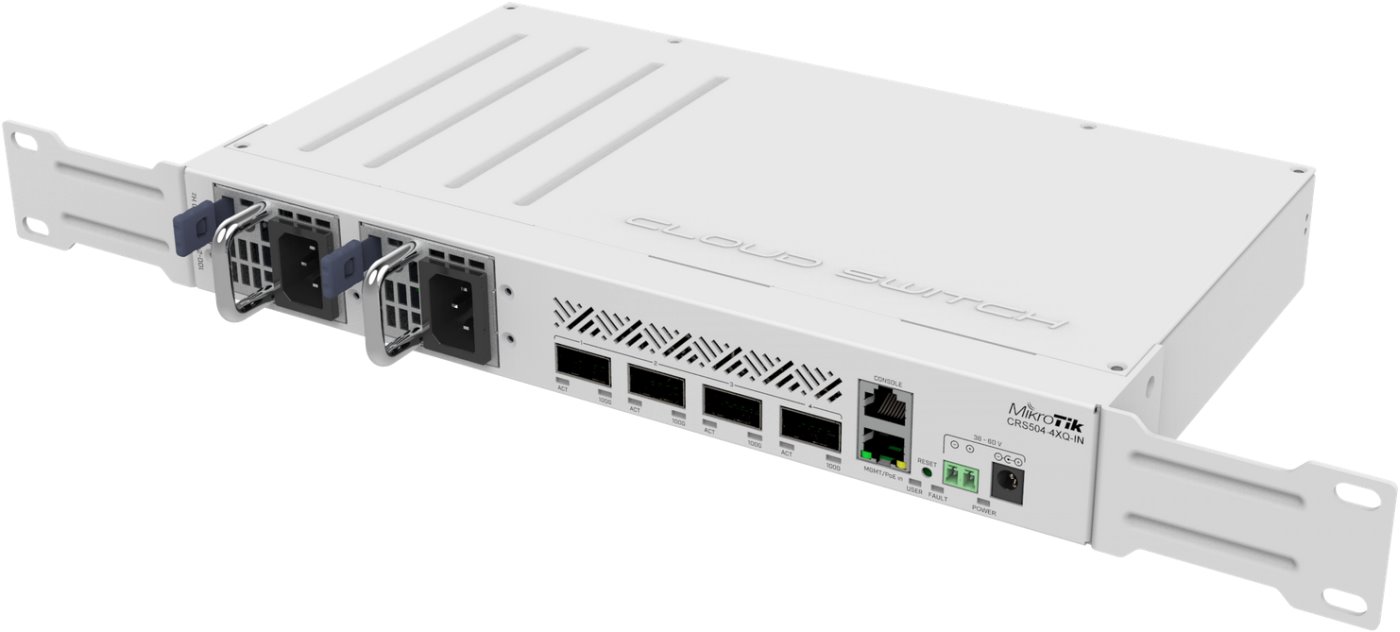

Optical Cloud Router Switch CRS504-4XQ-IN is a suitable 19" rackmount solution for access to 100 Gbps networks and as a small central optical switch that offers 4x QSFP28 s at 100 Gbps, 1x Ethernet port with support for passive PoE power supply and console RJ45 port.The switch can be powered via two redundant Hot-swap sources, DC connector/DC terminal block (36 - 57V DC), as well as via an Ethernet port supporting passive PoE with a voltage of 43 - 57V DC.The maximum power consumption of the device is 41 W.

Equipment

  • (4) 100G (QSFP28)
  • (1) 10/100 /1000Mbps ethernet - with PoE IN support (43 - 57V DC)
  • (1) console RJ45 port
  • QCA9531 processor, 650 MHz frequency, Mipsbe
  • 64MB RAM
  • 16MB storage
  • RouterOS v7 Level 5 operating system
  • Wide range of power options - 2× redundant power supply, PoE, DC connector, DC terminal block

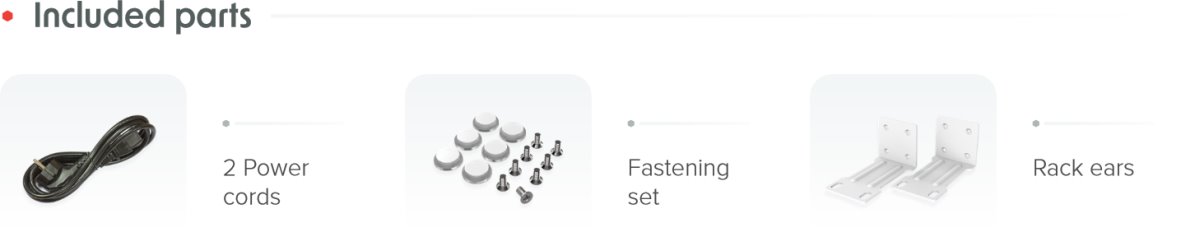

Package Contents

  • (1) Device
  • (2) Power cord
  • (1) 19" rack mounts

Articles and reviews

SFP compatibility list

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Connectors and Interfaces

LAN speed: (1) 10/100Mbps
Optical interfaces: (4) 100G
Serial port: RJ45

Power

Power over Ethernet: 802.3af, 802.3at, 43 .. 57V DC
Power type: PoE, DC connector, DC terminal, Mains power (230V)
PoE type: PoE-In (only)
Redundant power supply: Yes
Max. power consumption [W]: 25
Power via connector/terminal: 36 .. 57V DC, 230V AC

Physical characteristics

Design: Desktop, Rackmount
"U" positions: 1
Fans: Yes
Chassis design: Metal
Buttons: Reset
Operating temperature [°C]: -40 up to 70
Width [mm]: 320
Height [mm]: 44
Depth [mm]: 185

Hardware

CPU: QCA9531
CPU frequency [MHz]: 650
CPU cores: 1
Internal storage [MB]: 16
RAM [MB]: 64

Software

Web management: Yes
Management: Web management
Features: VLAN, QoS, L3
Operating system: RouterOS - L5
IPv6 support: Yes
Default IP address: 192.168.88.1
Default login and password: admin / -
