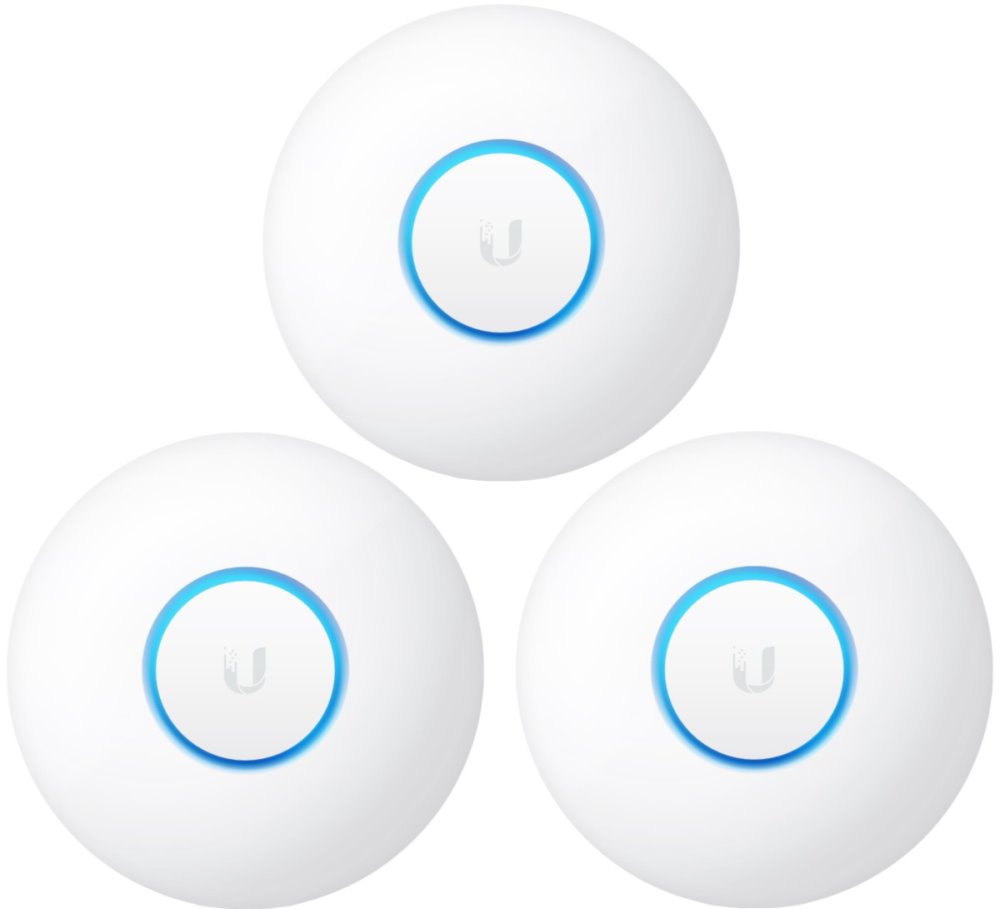

Ubiquiti UniFi UAP-nanoHD-3, Wave2 AC AP, PoE Not Included, 3-pack
Ubiquiti UniFi UAP-nanoHD-3, Wave2 AC AP, PoE Not Included, 3-pack
×
0/0
Your price excl. VAT
425.35 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 425.55 EUR |
| Your price incl. VAT (21%) | 514.92 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901616 | |
| Part No. | UAP-nanoHD-3 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
3 pack
UAP-nanoHD-3
425.35 EUR
RPI303-CK-RM
62.19 EUR excl. VAT
75.33 EUR incl. VAT
In Stock
POE-48-24W-G
12.12 EUR excl. VAT
14.75 EUR incl. VAT
In Stock
MAXPI15
11.72 EUR excl. VAT
14.27 EUR incl. VAT
Expected 21.2.2025
nHD-cover-Concrete-3
35.88 EUR excl. VAT
43.41 EUR incl. VAT
In Stock
nHD-cover-Black-3
43.33 EUR excl. VAT
52.43 EUR incl. VAT
Not in stock
nHD-cover-Wood-3
43.33 EUR excl. VAT
52.43 EUR incl. VAT
In Stock
nHD-cover-Camo-3
35.88 EUR excl. VAT
43.41 EUR incl. VAT
In Stock
nHD-cover-Fabric-3
43.33 EUR excl. VAT
52.43 EUR incl. VAT
Not in stock
nHD-cover-Marble-3
35.88 EUR excl. VAT
43.41 EUR incl. VAT
In Stock
nanoHD-RetroFit-3
25.79 EUR excl. VAT
31.21 EUR incl. VAT
In Stock
nanoHD-RCM-3
43.33 EUR excl. VAT
52.43 EUR incl. VAT
Not in stock
UACC-Lite-AP-AM
18.74 EUR excl. VAT
22.68 EUR incl. VAT
In Stock
D-U6-L
17.46 EUR excl. VAT
21.13 EUR incl. VAT
In Stock
nHD-cover-Black-1
14.51 EUR excl. VAT
17.56 EUR incl. VAT
Not in stock
nHD-cover-Camo-1
14.51 EUR excl. VAT
17.56 EUR incl. VAT
In Stock
nHD-cover-Concrete-1
14.51 EUR excl. VAT
17.56 EUR incl. VAT
In Stock
nHD-cover-Fabric-1
14.51 EUR excl. VAT
17.56 EUR incl. VAT
Not in stock
nHD-cover-Marble-1
14.51 EUR excl. VAT
17.56 EUR incl. VAT
In Stock
nHD-cover-Wood-1
14.51 EUR excl. VAT
17.56 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1733
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
26
Security:
WEP, WPA, WPA2
2.4GHz MIMO:
2 x 2
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
4
Roaming:
Yes
Antenna gain [dBi]:
3
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 48V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
10,5
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 70
Weight [g]:
300
Width [mm]:
160
Height [mm]:
33
Depth [mm]:
160
Software
Operating mode:
Access Point
IPv6 support:
Transparent (bridge mode)
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description
Ubiquiti UAP-nanoHD is 802.11ac UAP device. It is 2x2 MIMO in 2.4GHz band, 4x4 MU-MIMO in 5GHz band Acess point with modulation speed up to 300 + 1733 supporting 802.11/a/b/g/n/ac/ac-wave2. This UAP is designed for example offices, hotels, warehouses and thanks to high performance is suitable for places with high quantity of connected devices. UAP-nanoHD has two dual-band antenas with 3dBi gain and two antennas dedicated for 5GHz band. It full supports roaming for transmission of associated clients between APs. Device features 1x Gbit LAN supporting 48V DC POE (passive and active 802.3af).
MU-MIMO advantages
Thanks to MU-MIMO (Multiple-User - Multiple-In - Multiple-Out) technology UAP AC-HD is able to communicate with several devices at the same time:
Custom Skins

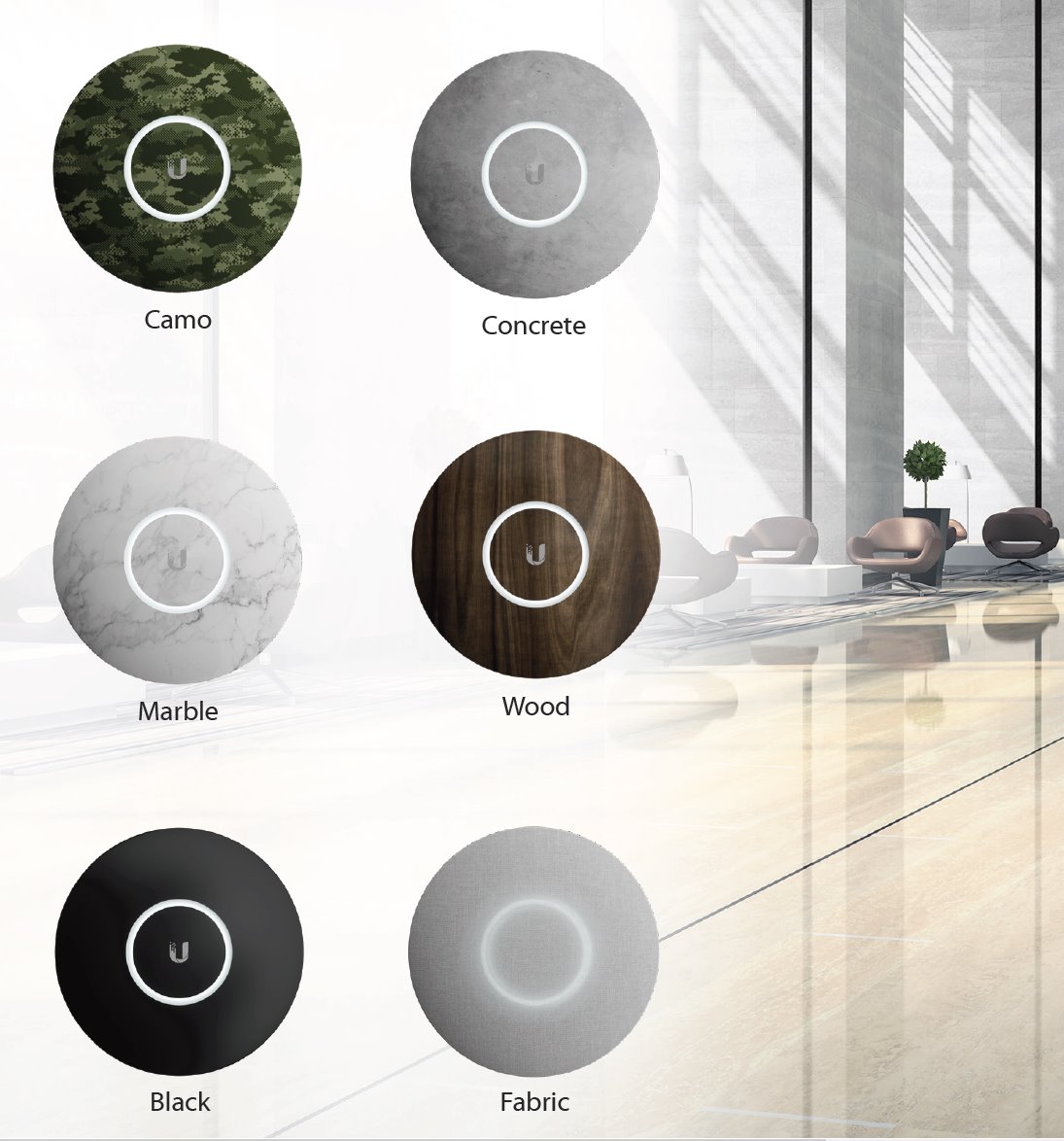

As the first of the UniFi family, this model will have an optional chassis that will be available for purchase, with a choice of a total of six different designs - marble, matt black, concrete, wood, fabric and military camouflage.
Smallest Access Point
UAP-nanoHD is smallest UniFi Access Point Available On the Market. UAP nanoHD is 30% smaller than UAP AC Pro version.
Unit central management
UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on Ubiquiti websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
UniFi product line main advantages
Package contains
Download
Datasheet Návod k použití Quick Guide UniFi Controller v5 User GuideGPSR
