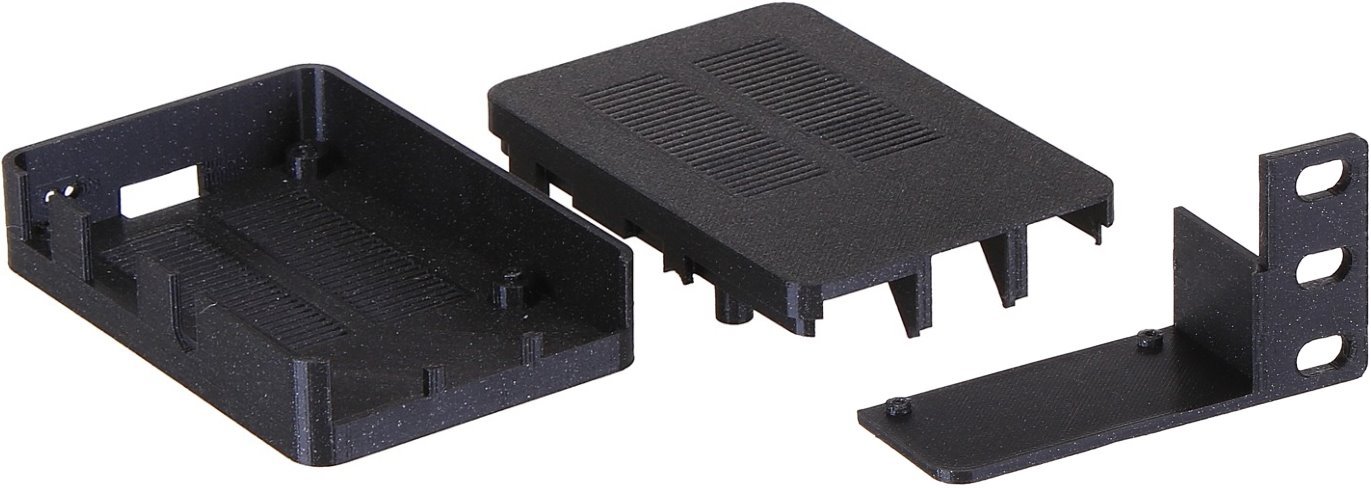

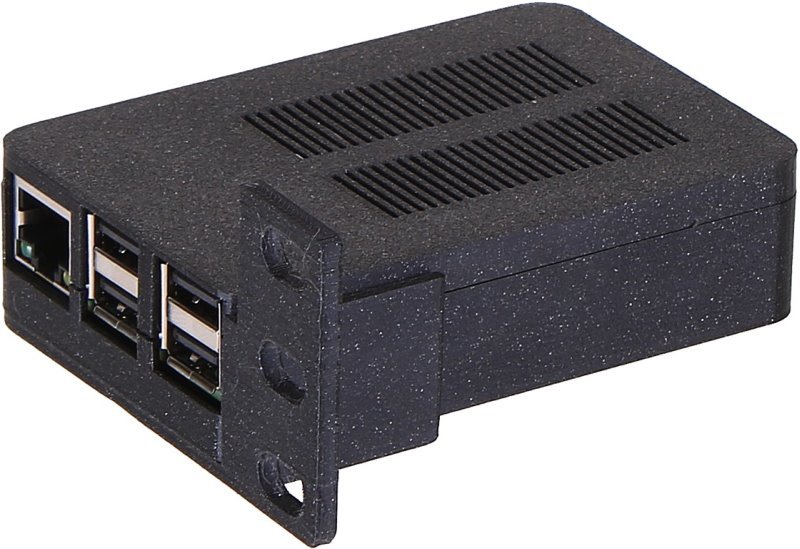

Raspberry Pi 3B+ UniFi Controller, rackmount
Your price excl. VAT
70.58 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 70.65 EUR |
| Your price incl. VAT (21%) | 85.49 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
OEM |
|
|---|---|---|
| Code | 10904034 | |
| Part No. | RPI303-CK-RM | |
| Warranty | 24 months | |
SBC-PoE-Power
14.16 EUR excl. VAT
17.22 EUR incl. VAT
In Stock
PWS006-BLA
14.95 EUR excl. VAT
18.19 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
RPI402-CK-RM
80.07 EUR excl. VAT
96.97 EUR incl. VAT
Expected 19.11.2024
Parameters
Download
Video
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
USB ports 2.0:
4
USB:
Yes
Power
Power type:
USB (5V)
Max. power consumption [W]:
7
Power via connector/terminal:
5V / 2,5A
Physical characteristics
Design:
Desktop, Rackmount
Fans:
No
Operating temperature [°C]:
0 up to 50
Width [mm]:
82
Height [mm]:
44
Depth [mm]:
91
Color:
Black
Hardware
CPU:
ARM Cortex-A53
CPU frequency [MHz]:
1400
CPU cores:
4
RAM [MB]:
1024
Software
Pre-installed controller:
UniFi Network
Default IP address:
Dynamic from DHCP, 192.168.1.30
Default login and password:
Is set by the user at the first startup
Video
Product description
Raspberry Pi 3B + UniFi Controller is a compact device with pre-installed UniFi Controller with the possibility of remote management of all Unifi AP units based on the very high-quality HW platform Raspberry Pi 3B+ with enough power to manage up to 40 devices (UniFi AP, UniFi Switch, USG), which is almost 2× the power compared to the standard UC-CK device from Ubiquiti. Thanks to this device, you no longer have to install UniFi Controller on desktop PCs or servers with much higher power consumption.
The device comes pre-installed with a 32-bit Raspberry Pi OS based on the Debian 11 Bullseye OS. Due to the HW requirements of the 64-bit system and running applications, we do not recommend updating to the 64-bit version of the OS, the device becomes unstable. This disables updating the UniFi application to a newer version than the pre-installed version.
Key Features
Easy installation
Installation of Raspberry Pi 3B+ UniFi Controller (so-called raspberries) is very simple - just connect to the network with an Ethernet cable, connect the power supply, wait for booting (takes about 2 minutes) and using a web browser, simply enter the IP address that your raspberry received from the dhcp server, or the fallback address 192.168.1.30.
Package Contents
Download
Datasheet Manual [CZ] Manual [EN]Bussines information
