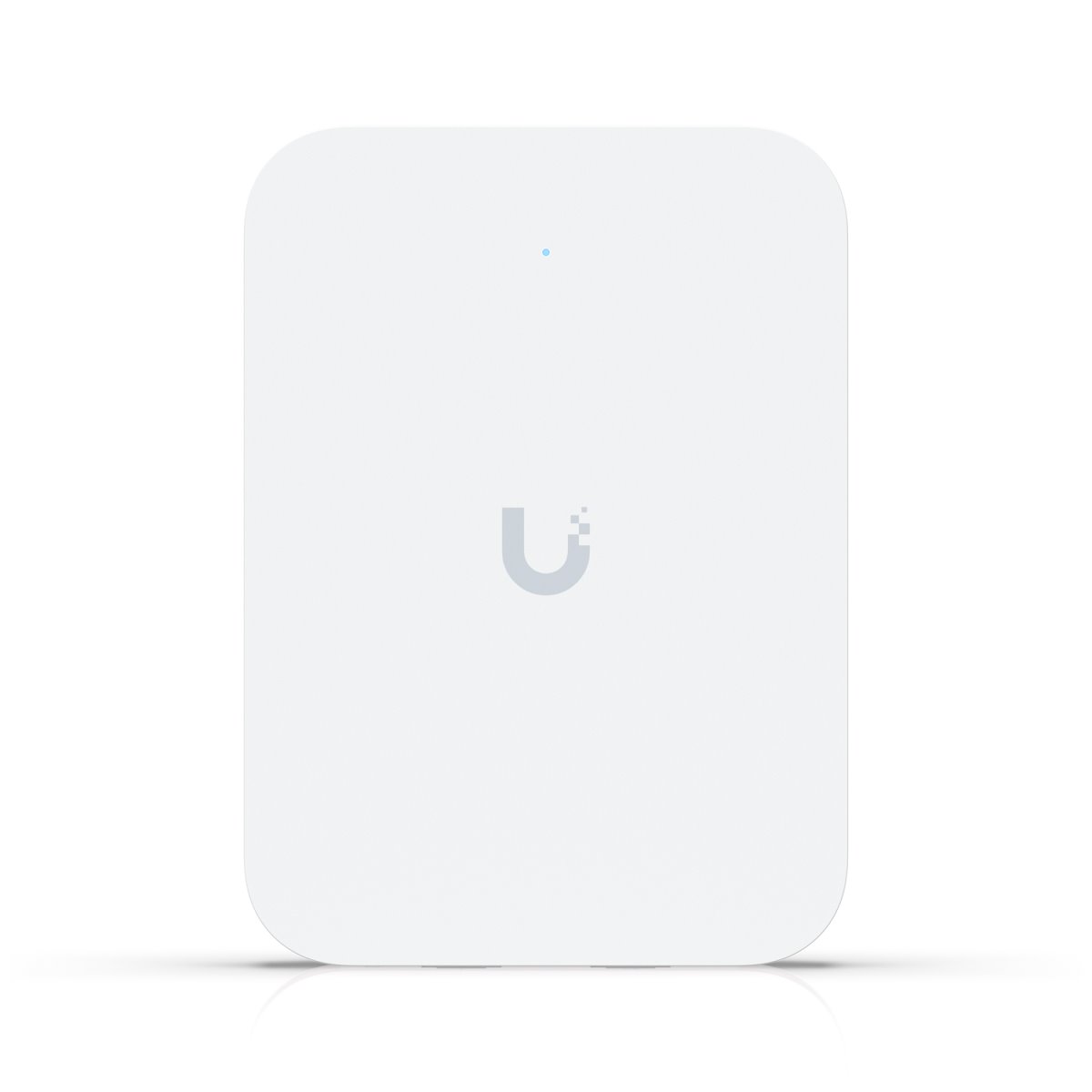

Ubiquiti UniFi AP U7 In-Wall

Product description

The U7-IW is a WiFi 7 access point from the UniFi family, designed for in-wall installation. Dual-band WiFi 7 offers a maximum modulation speed of up to 4.3Gbps in the 5 GHz band and up to 688Mbps in the 2.4 GHz band. For network connectivity, it features a rear (1) 2.5G ETH port, which also serves as a power input via PoE 802.3af/at or passive PoE 42.5 to 57V DC. Even after installation, you will still have access to (2) 2.5G ETH ports, one of which supports PoE-OUT for connecting an additional device. If using the PoE-OUT function, powering by PoE+ 802.3at 30W is required.

Centralized Device Management

To manage the device, you need to download the official software called UniFi Network from the official website, which allows full network control. A significant advantage of UniFi Network is that it is completely free with no limitations! This centralized management system enables you to upload maps, configure key settings such as SSID, guest accounts, landing pages, monitor traffic statistics, and view a list and status of associated clients – all quickly and easily.

Advantages of the UniFi Solution

• Roaming – seamless transition between APs without disconnections
• Wireless uplink – ideal for locations where a data cable cannot be installed
• Up to 8 SSID
• Detailed traffic statistics
• Guest network
• Voucher system
• Load balancing – maintaining even distribution of load / switching clients
• Bandwidth limitation for each SSID

Package Contents

• Device
• Wall-mounting plate
• Screws
