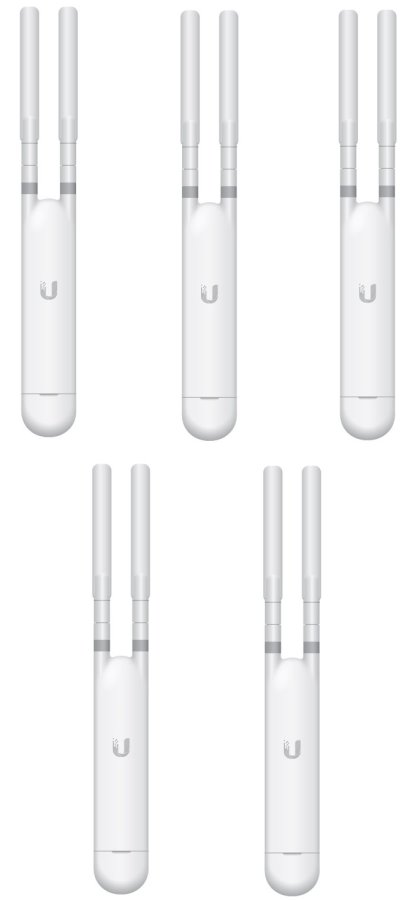

Ubiquiti UniFi AP AC Mesh, UAP-AC-M-5, 5 pack
Ubiquiti UniFi AP AC Mesh, UAP-AC-M-5, 5 pack
×
0/0
Your price excl. VAT
399.28 EUR
| Recycling fee | 0.34 EUR |
|---|---|
| Your price with RF | 399.62 EUR |
| Your price incl. VAT (21%) | 483.54 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
4x 5pack
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10220149 | |
| Part No. | UAP-AC-M-5 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
5 pack
UAP-AC-M-5
399.28 EUR
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
RPI303-CK-RM
71.06 EUR excl. VAT
86.07 EUR incl. VAT
To order within 5d
MAXPI15
11.70 EUR excl. VAT
14.24 EUR incl. VAT
In Stock
POE-48-24W-G
12.22 EUR excl. VAT
14.87 EUR incl. VAT
In Stock
UMA-D
79.90 EUR excl. VAT
96.92 EUR incl. VAT
Not in stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
20
Security:
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
4
Connectors and Interfaces
RF connectors:
(2) RSMA female

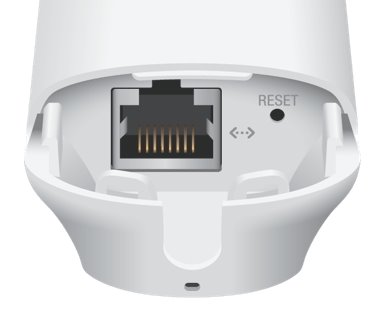

LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 24V DC, 44 .. 57V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
8,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 70
Weight [g]:
152
Width [mm]:
46
Height [mm]:
353
Depth [mm]:
34
Software
Operating mode:
Access Point
IPv6 support:
Transparent (bridge mode)
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

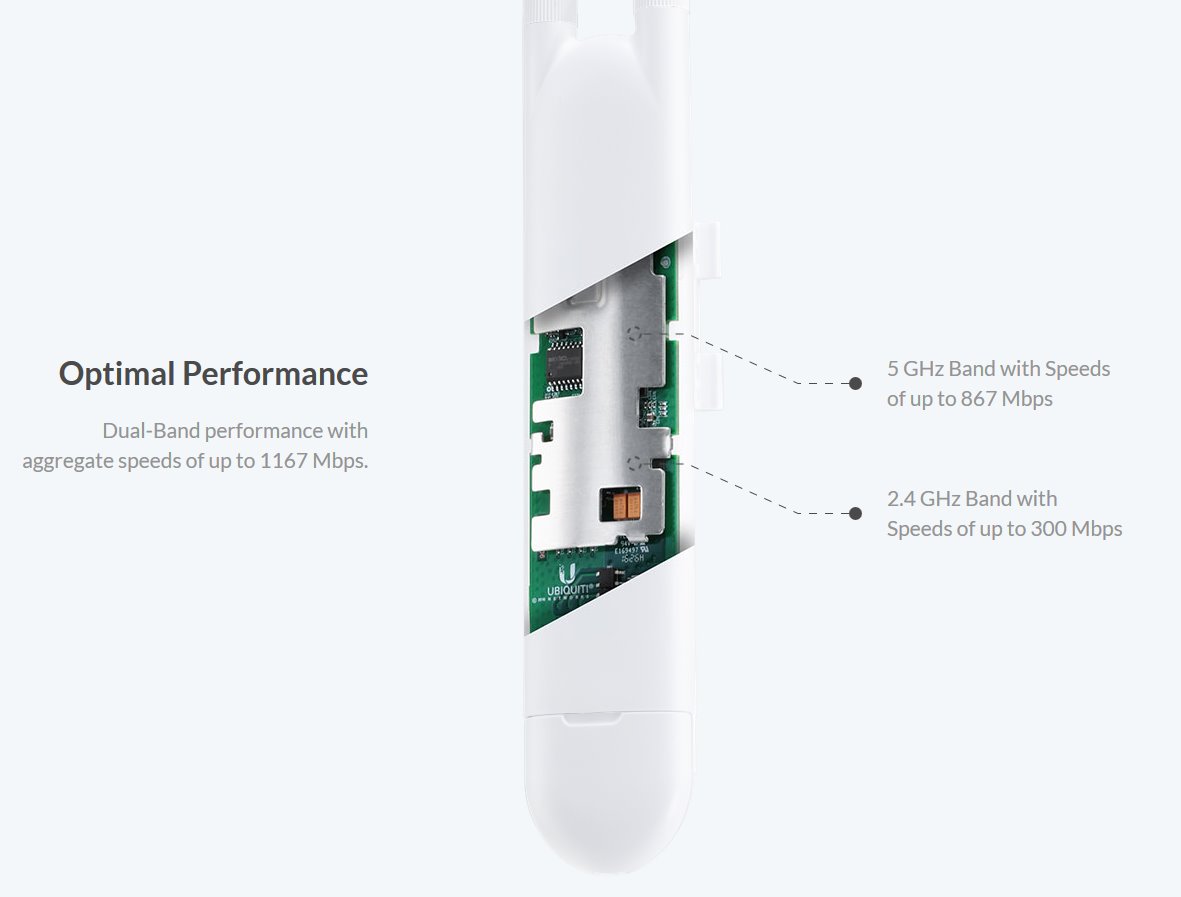

UAP-AC-M is wireless accesspoint 2x2 MIMO with modulation speed up to 300 Mbps for 2.4GHz band (802.11b/g/n) and up to 866 Mbps for 5GHz band (802.11a/n/ac). The UniFi AC Mesh AP is designed to discreetly integrate into any environment and can be used indoors or outdoors. Device is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af alternative A compatible switch, EdgePoint™ EP-R6, UniFi PoE Switch, or the included Gigabit PoEadapter. Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high.gain antenna. (All accessories are included.)
Unit central management
UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on Ubiquiti websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
Main advantages UniFi Mesh product line

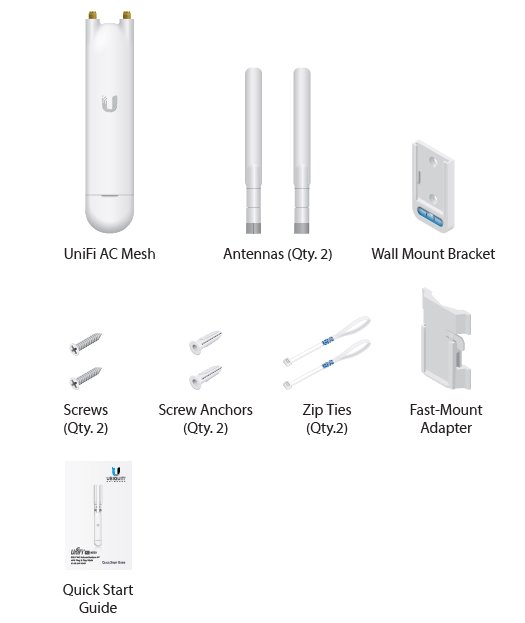

Package contains
