Ubiquiti UniFi AP AC In Wall, UAP-AC-IW, 5-Pack
Ubiquiti UniFi AP AC In Wall, UAP-AC-IW, 5-Pack
×
0/0
Temporarily unorderable
Your price excl. VAT
396.73 EUR
| Recycling fee | 0.34 EUR |
|---|---|
| Your price with RF | 397.07 EUR |
| Your price incl. VAT (21%) | 480.45 EUR |
| blank |
Availability
at our branches
at our branches
Ordering from the internet is not permitted. For more information, please contact our sales department.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10220147 | |
| Part No. | UAP-AC-IW-5 | |
| Warranty | 24 months | |
RPI303-CK-RM
62.19 EUR excl. VAT
75.33 EUR incl. VAT
In Stock
UAP-IW-P
2.83 EUR excl. VAT
3.42 EUR incl. VAT
In Stock
MAXPI15
11.72 EUR excl. VAT
14.27 EUR incl. VAT
Expected 21.2.2025
MAXPI30
15.35 EUR excl. VAT
18.66 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
20
Security:
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
< 2
Connectors and Interfaces
LAN speed:
(3) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at, 44 .. 57V DC
PoE type:
PoE-Out + PoE-In
PoE-Out standards:
802.3af
PoE Out ports:
1
Max. power consumption [W]:
7
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Weight [g]:
200
Width [mm]:
87
Height [mm]:
140
Depth [mm]:
26
Software
Operating mode:
Access Point
IPv6 support:
Transparent (bridge mode)
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

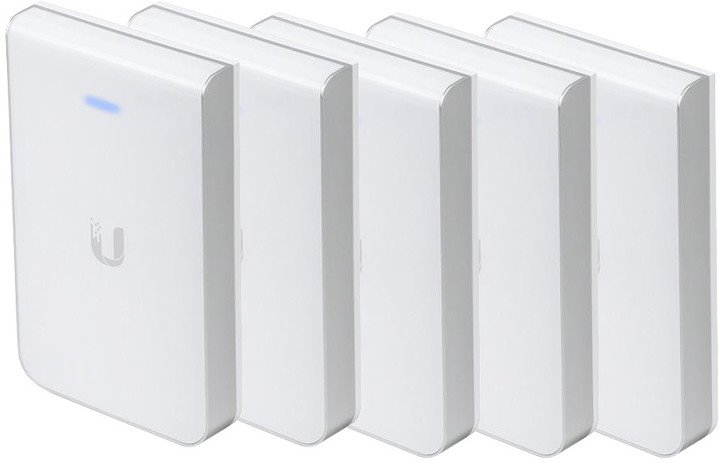

Ubiquiti UniFi AC In-Wall is small and discrete 802.11ac UAP device. It is 2x2 MIMO 2.4G and 2x2 MIMO 5G AP with throughput up to 1167Mbps and supports 802.11a/b/g/n/ac. UAP-AC-IW is designed for offices and hotels. It contains 1 built-in antenna (1dBi / 2.4G, 2dBi/5G) for range up to 25m. This device fully supports roaming and has 3x 10/100/1000Mbps LAN with PoE IN on back port and PoE OUT on one of the front ports - only 802.3af output supported.
Power over Ethernet

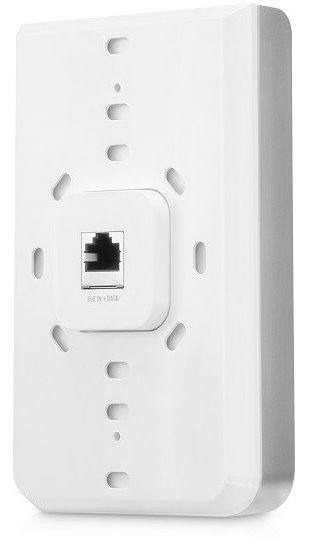

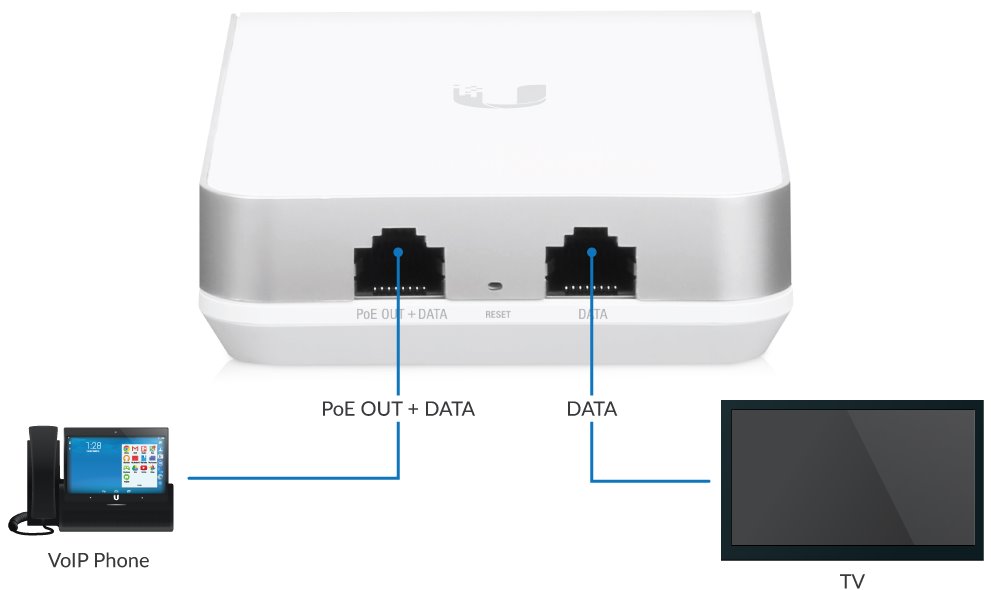

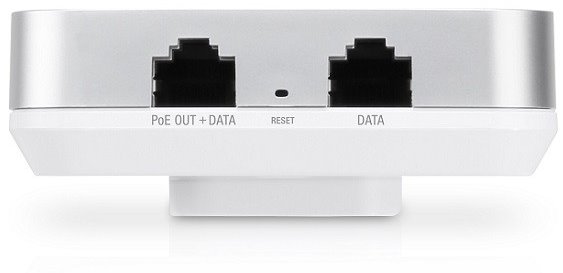

UAP-AC-IW is designed for simple use and quick instalation, but with advanced functions. UAP-AC-IW has 3 eth ports. The first one on the back side designated for device powering - 48V passive PoE, 802.3af and 802.3at. On the front panel are 2 eth ports - one of them supports 802.3af PoE OUT (for example for UVP) and the second is only data port (for example for PC). All ports are 10/100/1000Mbps.
Quick instalation by 2 screws with pitch 83mm, designated for american boxes with dimensions (W x H x D): 57,2 x 95,3 x 85,7 mm.
Unit central management
UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
General advantages of UniFi products
Package contains
Articles and reviews
Download
Datasheet Quick Guide WFA certifikaceGPSR
