Ubiquiti UISP-P-Pro uninterruptible power system UISP Power Pro
Your price excl. VAT
461.26 EUR
Recycling fee | 0.08 EUR |
---|---|
Your price with RF | 461.34 EUR |
Your price incl. VAT (21%) | 558.22 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
Ubiquiti |
|
---|---|---|
Code | 10904116 | |
Part No. | UISP-P-Pro | |
Warranty | 24 months |
You have a choice of 2 variantscompare all
UISP Power Pro
UISP-P-Pro
461.26 EUR
UACC-Cable-PT-0.5M
8.85 EUR excl. VAT
10.71 EUR incl. VAT
In Stock
UACC-Cable-PT-3M
18.50 EUR excl. VAT
22.38 EUR incl. VAT
In Stock
UACC-Cable-PT-10M
38.06 EUR excl. VAT
46.05 EUR incl. VAT
In Stock
UACC-Cable-PT-Ext
27.75 EUR excl. VAT
33.66 EUR incl. VAT
In Stock
UISP-Console
237.67 EUR excl. VAT
287.67 EUR incl. VAT
In Stock
UISP-R-Pro
367.91 EUR excl. VAT
445.26 EUR incl. VAT
In Stock
UACC-PSU-27V-250W
119.37 EUR excl. VAT
144.53 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Power
Charging function:
Yes
Power [W]:
240 / 480
Output Voltage [V]:
27
Physical characteristics
Construction:
Rackmount
Operating temperature [°C]:
-10 up to 50
Weight [g]:
4160
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
268
Software
Web management:
Yes
Product description

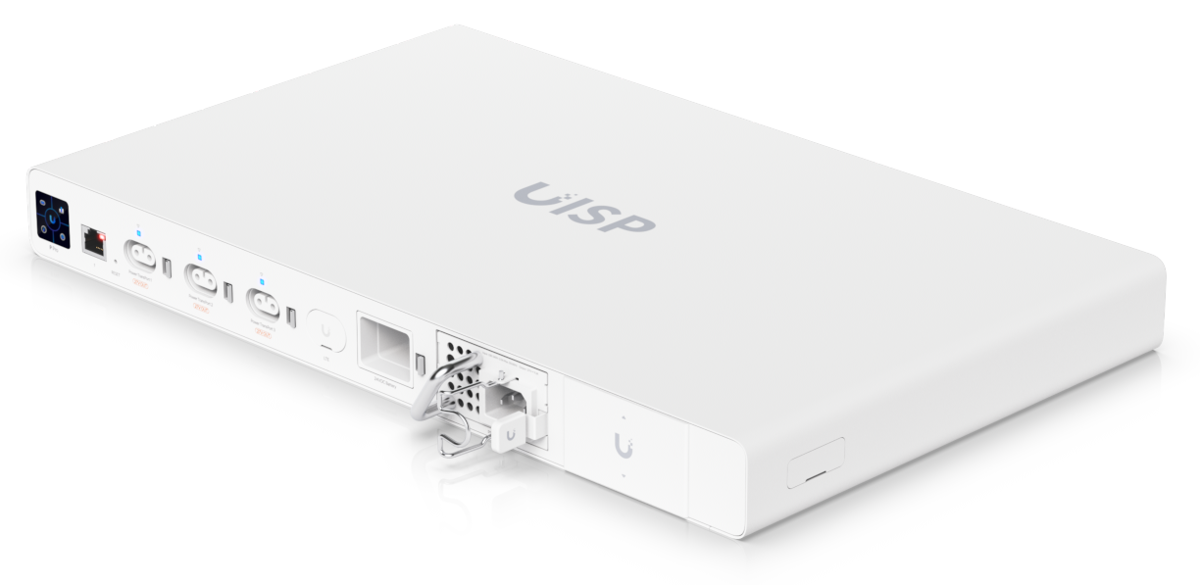

Uninterruptible power management system designed to support high-capacity WISP deployment sites. Equipped with one power source from the factory, it provides a power of 240W at an output voltage of 27V DC. Optionally, a second power supply can also be purchased and installed, thanks to which the output power will increase up to 480W. In addition to power supply from the 230V network, the UISP Power Pro can also be powered by a lead-acid battery with a voltage of 24V as a backup (the maximum current load corresponds to a power of 500W, i.e. 20.83A).
The device has three TransPort outputs, which are compatible with selected devices from the UISP product line. In addition to the TransPort outputs, there are 2 shafts for power sources on the front (1 installed from the factory), a connector for a lead-acid battery, and there is also a 1.3" touch screen, 1x R45 management port and a connector for an LTE module with antenna.
For immediate notification of a change in status, an LTE module is available, which is included in the package with mounting accessories. After inserting a SIM card with SMS-over-LTE (LTE Cat M1) support, the device sends notifications about its status. The LTE module can be attached directly to the device or using an extension cable to a magnetic surface, or an adhesive holder can be used.
Compatible devices from the UISP series:
Package contents:
Download
Datasheet Quick Installation GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
