Ubiquiti UISP-S-Pro, UISP Switch Pro
Ubiquiti UISP-S-Pro, UISP Switch Pro
×
0/0
Your price excl. VAT
365.01 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 365.08 EUR |
| Your price incl. VAT (21%) | 441.75 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903508 | |
| Part No. | UISP-S-Pro | |
| Warranty | 24 months | |
UISP-P
276.27 EUR excl. VAT
334.38 EUR incl. VAT
In Stock
UISP-P-Pro
471.34 EUR excl. VAT
570.42 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(4) 1G/10Gbps
Other features:
Touchscreen, Bluetooth
Power
Power type:
DC connector, Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
Passive 24V
PoE Out ports:
16
PoE budget [W]:
220
Max. power consumption [W]:
30
Power via connector/terminal:
27V / 9,3A, 230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
268
General
Switchning capacity [Gbps]:
128
Packet forwarding rate [Mpps]:
95,2
Software
Management:

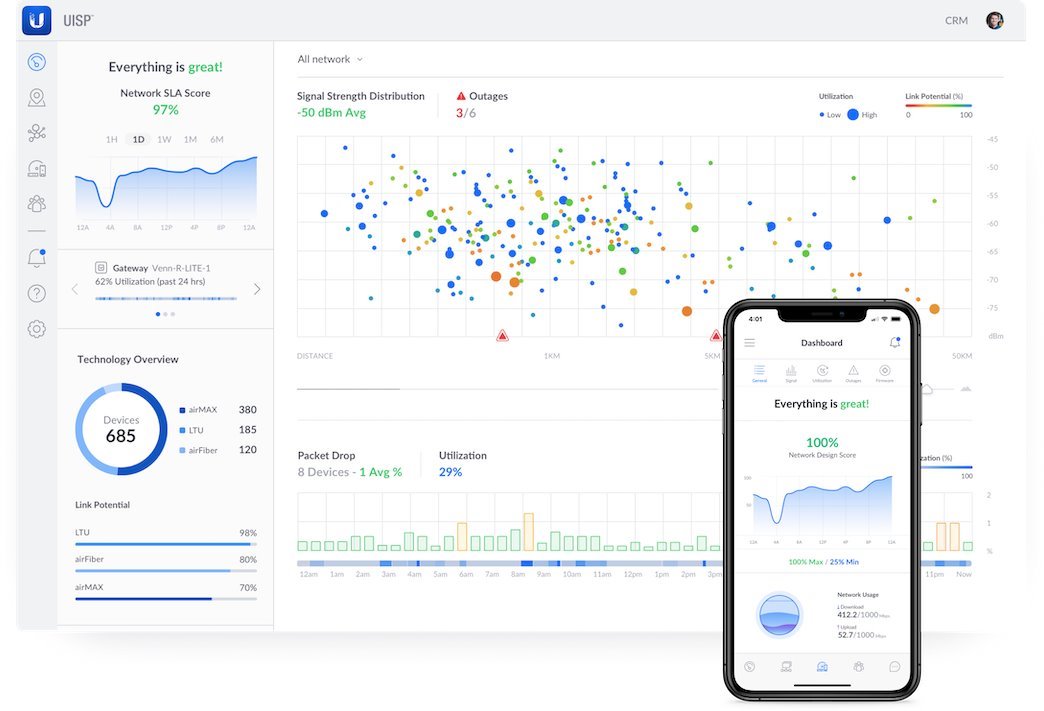

UISP application
Product description

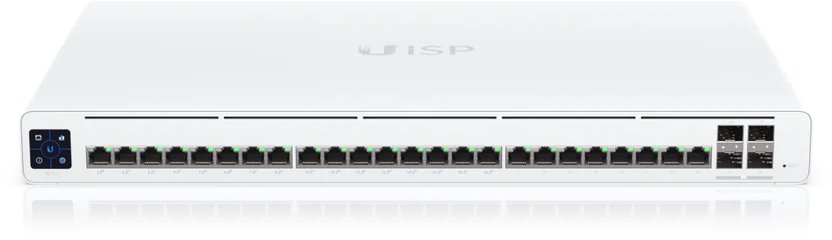

UISP-S-Pro is an ideal switch for deployment between ISP providers. It is a fanless L2 PoE switch with 24x Gigabit LAN and 4x SFP/SFP+ ports for further expansion using optical fiber. The UISP Switch is a cost-effective solution where gigabit wireless speeds are needed quickly and affordably. With a total 220W PoE budget and a maximum of 30W/port (4-wire pairs) or 15W/port (2-wire pairs), the switch provides considerable power to each connected radio in the PoE ports . For larger deployments, pair it with UISP Console to create a cohesive routing and switching hub. The UISP Switch is ONLY managed by the UISP App, a centralized platform where you can monitor and manage all your UISP devices.
Key Features

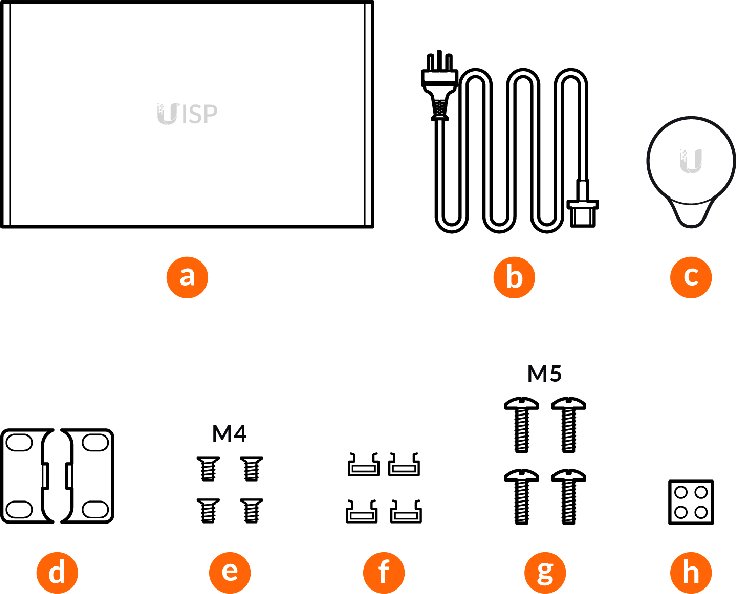

Package contents
Download
Datasheet Quick Start GuideGPSR
