Ubiquiti UISP-FIBER-XGS, UISP Fiber XGS-PON ONU
Ubiquiti UISP-FIBER-XGS, UISP Fiber XGS-PON ONU
×
0/0
Your price excl. VAT
133.12 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 133.19 EUR |
| Your price incl. VAT (21%) | 161.16 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904091 | |
| Part No. | UISP-FIBER-XGS | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
UISP-FIBER-XGS
UISP-FIBER-XGS
133.12 EUR
UISP-FIBER-OLT-XGS
2 773.89 EUR excl. VAT
3 356.49 EUR incl. VAT
Not in stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Optics
Transmission speed:
9,95 / 9,95 Gbps
Wavelength - Tx/Rx [nm]:
1270 / 1577
Distance [km]:
20
Transfer type:
XGS-PON
Polishing type:
APC
Tx power [dBm]:
4 up to 9
Receiver sensitivity [dBm]:
-9 up to -26
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 100M/1G/2.5G/5G/10G
Power
Max. power consumption [W]:
8
Power via connector/terminal:
5V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-15 up to 45
Width [mm]:
100
Height [mm]:
27
Depth [mm]:
100
Product description

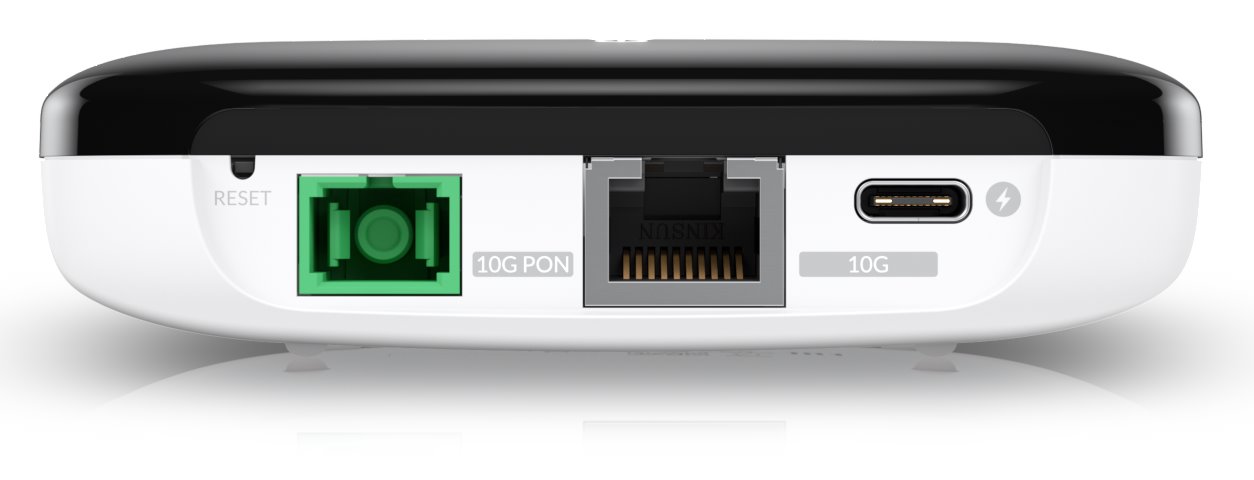

UISP-FIBER-XGS is a CPE ONU unit for XGS/XG-PON solutions, with which you can upgrade your network to 10Gbit. The device itself serves to convert GPON to LAN and only supports Bridge mode, not Router mode. For connection to the XGS/XG-PON network, it uses 1x SC connector with APC polishing and a maximum speed of 9.95 Gb/s downstream and 9.95 Gb/s upstream. The TX range is from 4 to 9 dBm and RX sensitivity from -9 to -26 dBm. It is powered by a 5V/3A USB-C adapter.
Package Contents
Download
Datasheet Installation manualGPSR
