Ubiquiti UISP-FIBER-XG, UISP Fiber XG-PON ONU
Ubiquiti UISP-FIBER-XG, UISP Fiber XG-PON ONU
×
0/0
Your price excl. VAT
89.80 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 89.87 EUR |
| Your price incl. VAT (21%) | 108.74 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904092 | |
| Part No. | UISP-FIBER-XG | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
UISP-FIBER-XG
UISP-FIBER-XG
89.80 EUR
UISP-FIBER-OLT-XGS
2 672.41 EUR excl. VAT
3 233.70 EUR incl. VAT
Not in stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
UACC-UF-WDM-XGS
229.81 EUR excl. VAT
278.15 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
Transmission speed:
9,95 / 2,44 Gbps
Wavelength - Tx/Rx [nm]:
1270 / 1577
Distance [km]:
20
Transfer type:
XG-PON
Polishing type:
APC
Tx power [dBm]:
2 up to 7
Receiver sensitivity [dBm]:
-9 up to -27
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 100/1000/2500Mbps
Power
Power over Ethernet:
24V DC
Max. power consumption [W]:
6
Power via connector/terminal:
5V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-15 up to 45
Width [mm]:
100
Height [mm]:
27
Depth [mm]:
100
Product description

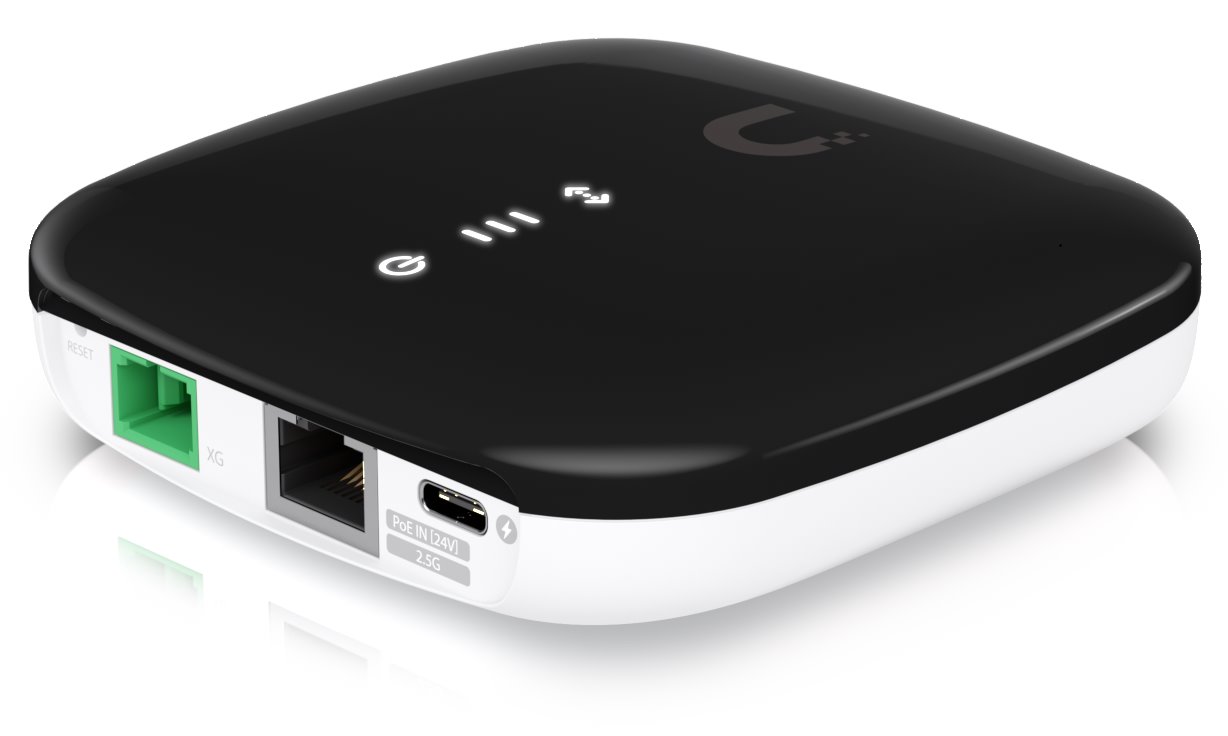

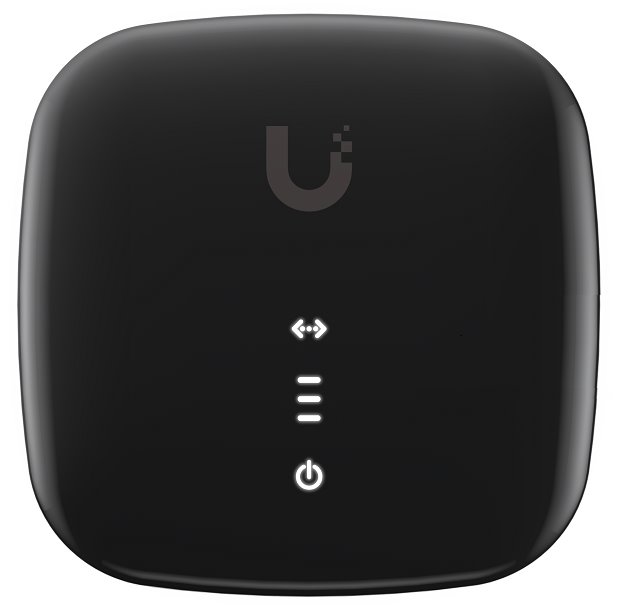

UISP-FIBER-XG is a CPE ONU unit for XGS/XG-PON solutions. The device itself serves to convert optical GPON to metallic LAN and only supports Bridge mode, not Router mode. For connection to the XGS/XG-PON network, it uses 1x SC connector with APC polishing and a maximum speed of 9.95 Gb/s downstream and 2.44 Gb/s upstream. The transmitting power ranges from 2 to 7 dBm and the reception sensitivity from -9 to -27 dBm. For LAN connection there is 2.5G LAN port with 24V DC POE-IN support. Unit also can be powered by a 5V/3A USB-C adapter.
Package Contents
Download
Datasheet Installation ManualGPSR
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel
support@ui.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
