Ubiquiti UF-LOCO - U Fiber LOCO
Ubiquiti UF-LOCO - U Fiber LOCO
×
0/0
Your price excl. VAT
39.67 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 39.74 EUR |
| Your price incl. VAT (21%) | 48.09 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10901737 | |
| Part No. | UF-LOCO | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
POE-24-12W-G
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
ACB-ISP
24.24 EUR excl. VAT
29.42 EUR incl. VAT
In Stock
ACB-AC
63.90 EUR excl. VAT
77.40 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Optics
Transmission speed:
2.488 / 1.244 Gbps
Distance [km]:
20
Transfer type:
GPON
Polishing type:
APC
Tx power [dBm]:
1.5 up to 5
Receiver sensitivity [dBm]:
-8 up to -28
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 10/100/1000Mbps
Power
Power over Ethernet:
24V DC
Max. power consumption [W]:
3,5
Power via connector/terminal:
5V / 1A
Physical characteristics
Operating temperature [°C]:
-10 up to 45
Width [mm]:
77
Height [mm]:
26
Depth [mm]:
77
Product description
Modern, elegant industrial design, robust design and high performance - this is U Fiber Loco, a CPE unit for GPON solutions.
Device status information

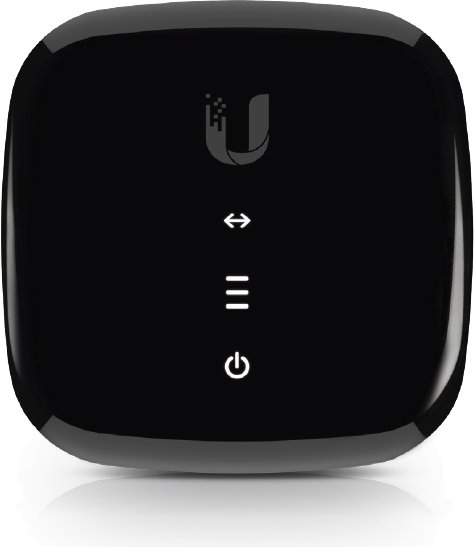

Compared to version UF-NANO on this unit lacks an information LED display, instead, everything you need shown in 3-state diodes - Ethernet connections, received signal strength indication and power.
Power options

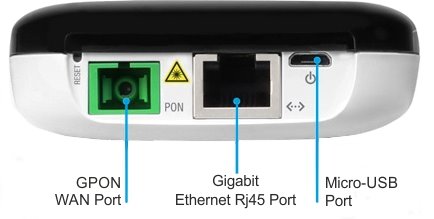

The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.
GPON technology

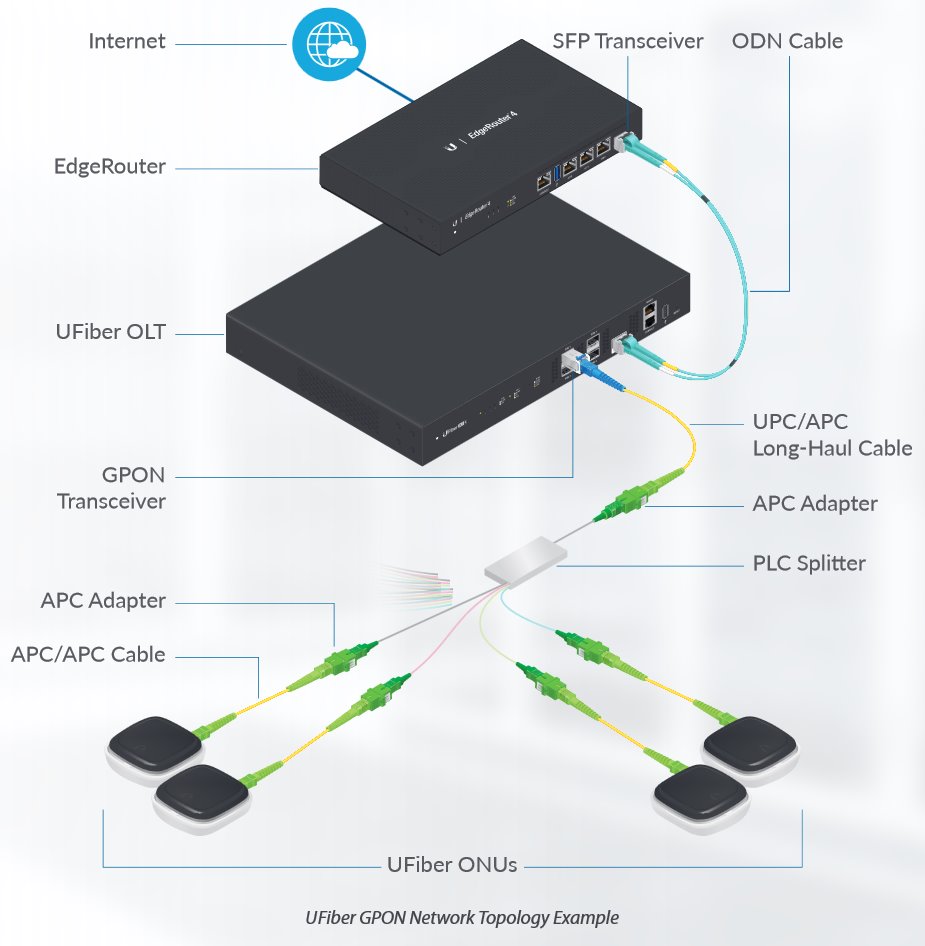

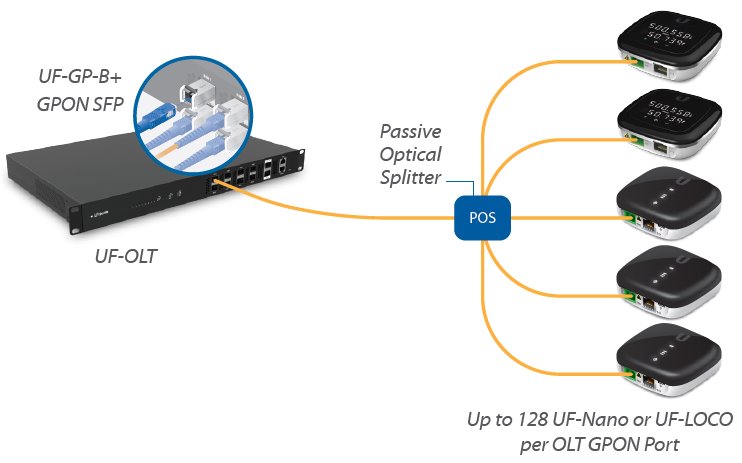

Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UF-OLT and third-party OLT devices.
Package contains
Download
Datasheet Quick GuideGPSR
