Ubiquiti UAP-XG Enterprise UniFi Access Point XG
Your price excl. VAT
641.01 EUR
Recycling fee | 0.07 EUR |
---|---|
Your price with RF | 641.08 EUR |
Your price incl. VAT (21%) | 775.71 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
Ubiquiti |
|
---|---|---|
Code | 10901703 | |
Part No. | UAP-XG | |
Warranty | 24 months |
RPI303-CK-RM
70.46 EUR excl. VAT
85.34 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1733 + 1733
Transmission speed - 2.4GHz [Mb/s]:
800
Tx power 2.4GHz [dBm]:
25
Tx power 5GHz [dBm]:
25
Security:
WPA2 AES
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4

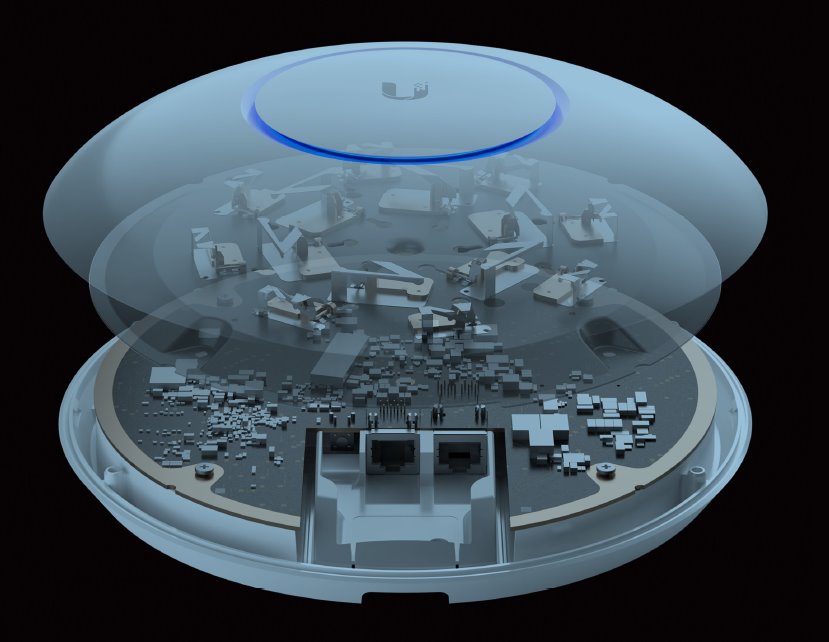

Type of antenna:
Built-in
Internal antennas:
14
Roaming:
Yes
Antenna gain [dBi]:
6, 8
Connectors and Interfaces

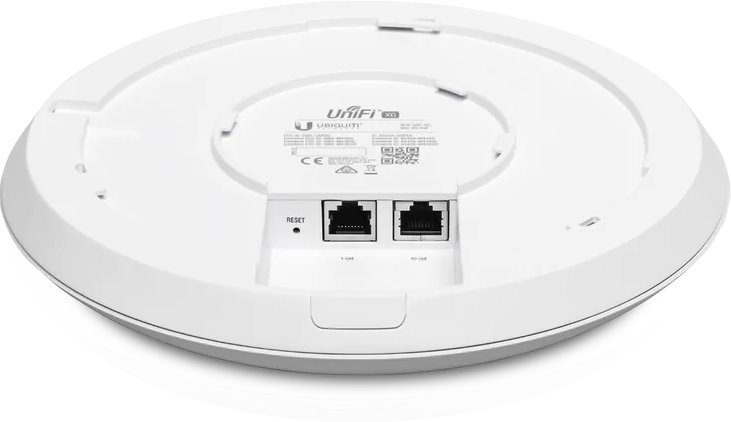

LAN speed:
(1) 10/100/1000Mbps + (1) 1/10Gbps ICM
Gigabit LAN:
Yes
Power
Power over Ethernet:
44 .. 57V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
31
Physical characteristics

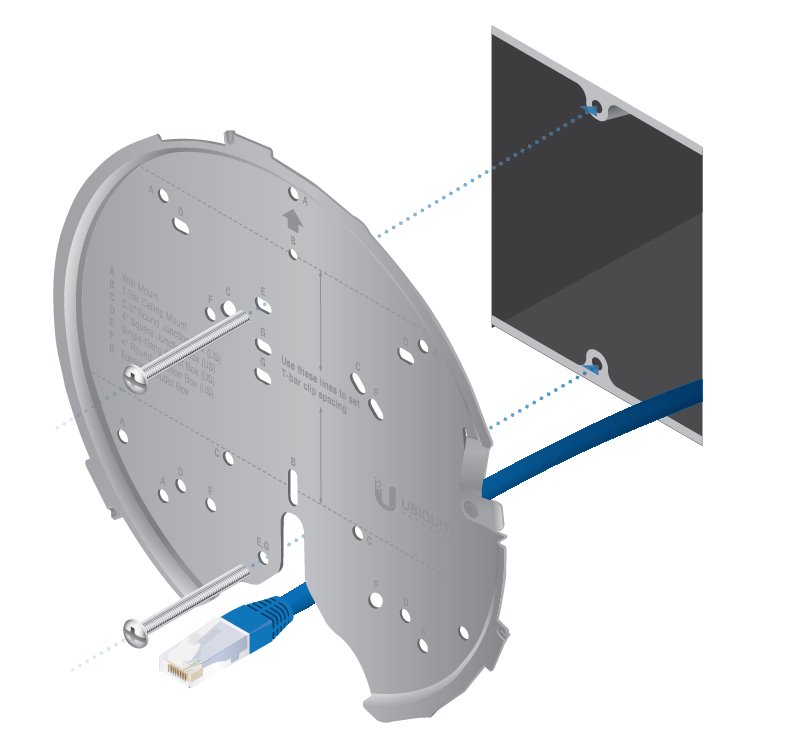

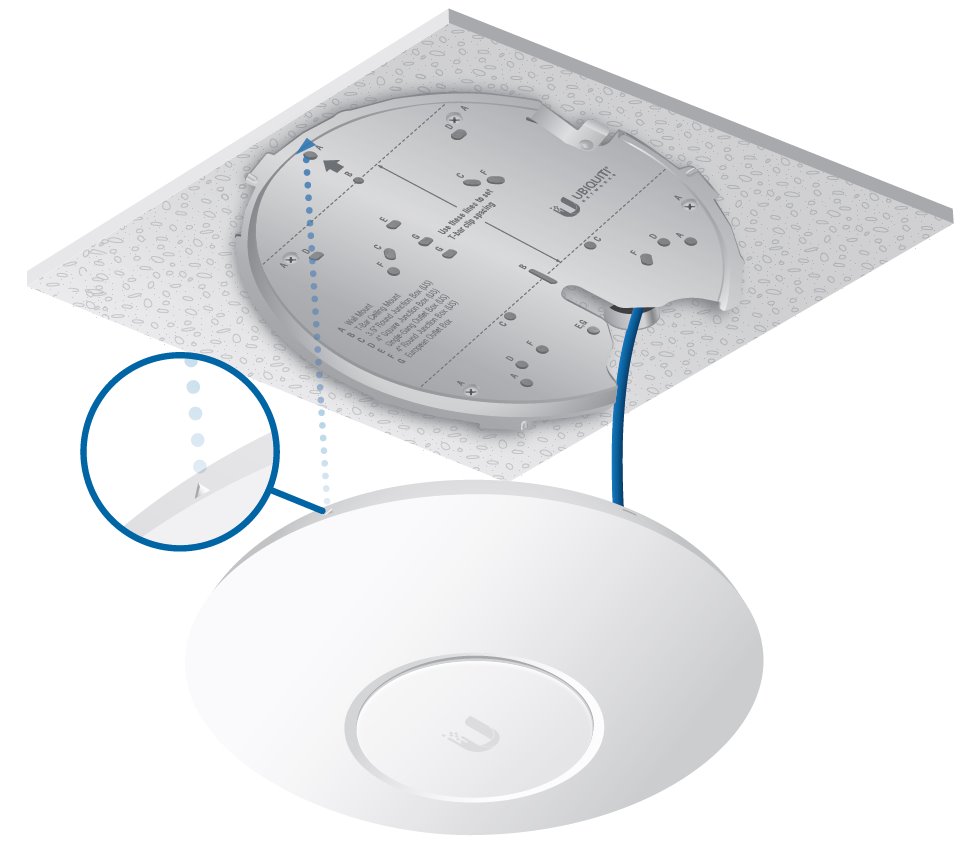

Design:
On the wall, Ceiling
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-10 up to 60
Weight [g]:
1200
Width [mm]:
228
Height [mm]:
50
Depth [mm]:
228
Software
Operating mode:
Access Point
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
UAP-XG is the ideal unit to cover a small area with large numbers of people - such as auditoriums, concert halls, etc. -. The total wireless modulation rate of 800 Mbps + 1733 Mbps will be converted into a cable thanks to a pair of Ethernet ports (1x 10/100 / 1000Mbps, 1x 1 / 10Gbps IMC) that both support input POEs according to the new 802.3bt standard . Power can also be supplied by the included passive POE adapter 50V / 1,2A.
UAP-XG offers up to 28 non-overlapping channels , 3 channels at 2.4GHz and 25 channels at 5GHz (including DFS channels). Thanks to 3 radio parts (1x 2.4GHz, 2x 5GHz) each unit can handle up to 1500 users, but the recommended number is half the theoretical maximum, ie 250 clients for each radio part.
Main MU-MIMO advantages
Thanks to MU-MIMO (Multiple-User - Multiple-In - Multiple-Out) technology UAP AC-HD is able to communicate with several devices at the same time:
Unit central management
UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on Ubiquiti websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
UniFi product line main advantages
Package contains
Download
Datasheet Návod k použitíTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
