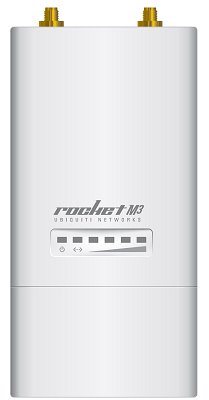

Ubiquiti Rocket M3
We are sorry, this product is no longer in our offer.
AMO-3G12
125.36 EUR excl. VAT
151.93 EUR incl. VAT
In Stock
FL-RM-RM-0015
6.25 EUR excl. VAT
7.56 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
3.5 GHz
WiFi standards:
airMAX
Transmission speed - 3.5GHz [Mb/s]:
300
Security:
WPA2 AES
Type of antenna:
Detachable
Detachable antennas:
2
Connectors and Interfaces
RF connectors:
(2) RSMA female
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
6,5
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-30 up to 75
Weight [g]:
500
Width [mm]:
80
Height [mm]:
160
Depth [mm]:
30
Hardware
CPU:
Atheros MIPS 24KC
CPU frequency [MHz]:
400
RAM [MB]:
64
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description

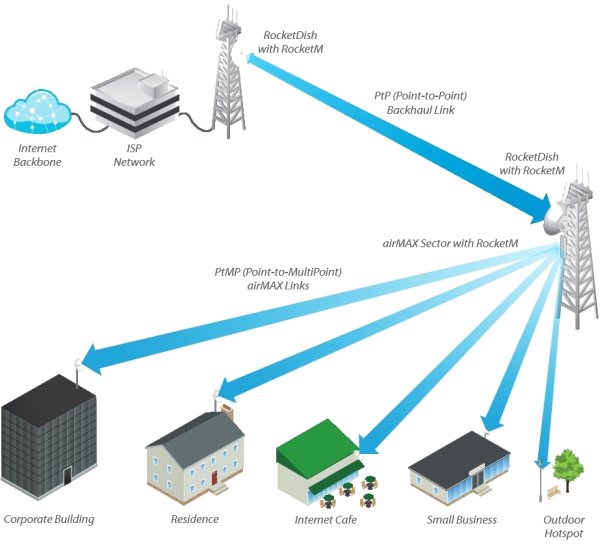

Rocket M3 is a powerful outdoor unit for the 3.5GHz band (3370 - 3730MHz) designed for direct mounting on the UBNT airMAX antenna series. Unit allows real communication speeds up to 150+ Mbps.It is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.

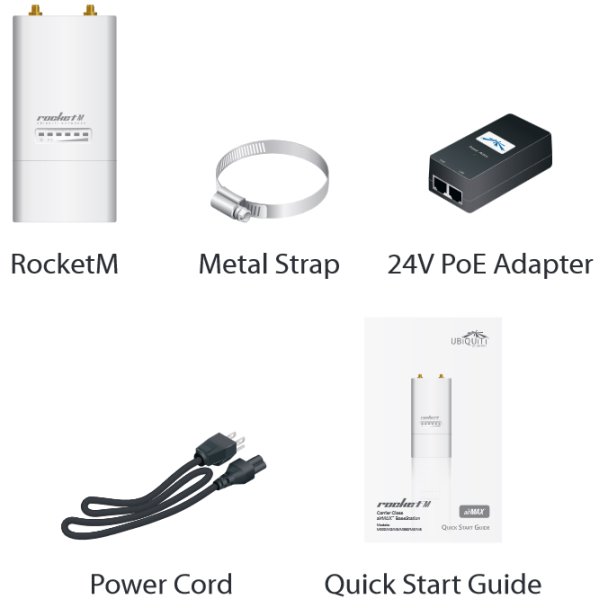

Package contains
Download
CE Datasheet Firmware Návod k použití Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
