Ubiquiti dual omni antenna airMAX 2x2 MIMO 3,5GHz, 12dBi, rocket kit
Ubiquiti dual omni antenna airMAX 2x2 MIMO 3,5GHz, 12dBi, rocket kit
×
0/0
Your price excl. VAT
125.36 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 125.56 EUR |
| Your price incl. VAT (21%) | 151.93 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
4 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10140108 | |
| Part No. | AMO-3G12 | |
| Warranty | 24 months | |
Parameters
Download
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,6
Cross-Pol Isolation [dB]:
25
Wireless frequency:
3.5 GHz
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
360
Antenna gain [dBi]:
12
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA female
Physical characteristics
Designed for mast diameter [mm]:
30 up to 80
Wind load [km/h]:
200
Purpose:
Outdoor
Material:
UV stabilized ABS plastic
Weight [kg]:
0,8
Width [mm]:
90
Height [mm]:
799
Depth [mm]:
65
Product description

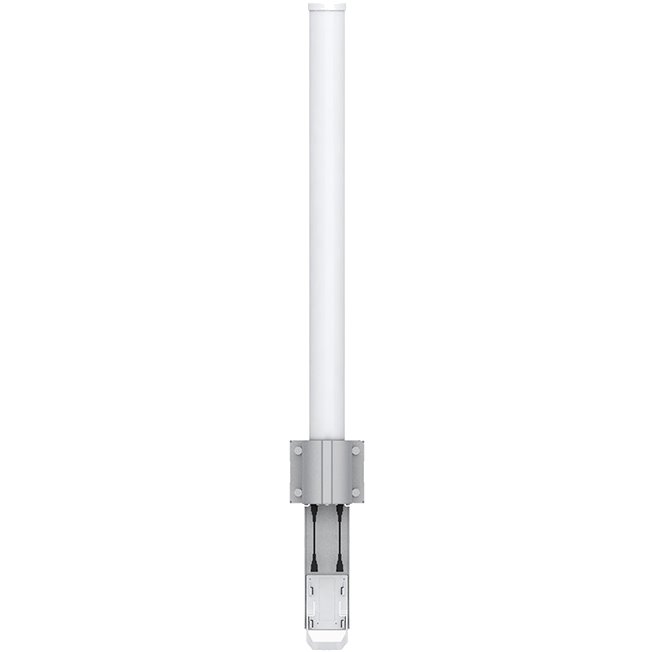

AMO-3G12 is 2x2 MIMO omnidirectional antenna with 12dBi gain, 360°/7° beam angles and is designed for 3.5GHz band. It was designed to seamlessly integrate with Rocket M radio series.
Plug and Play Integration
Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

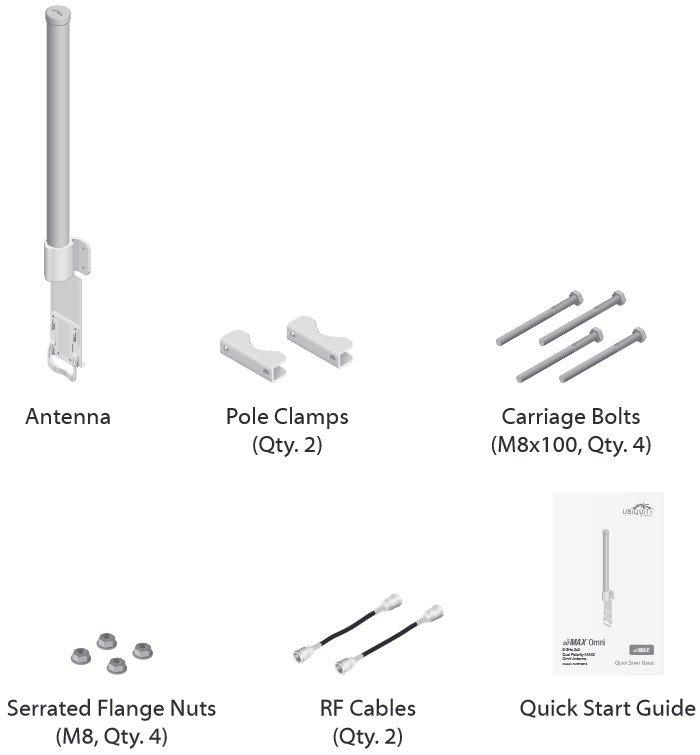

Package contains
Download
Datasheet Quick Start GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
