Ubiquiti NanoBridge M3, outdoor, 3.5GHz MIMO, 2x 22dBi, AirMAX
We are sorry, this product is no longer in our offer.
Ubiquiti NanoBridge M3, outdoor, 3.5GHz MIMO, 2x 22dBi, AirMAX
×
0/0
Temporarily unorderable
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
3.5 GHz
WiFi standards:
airMAX
Transmission speed - 3.5GHz [Mb/s]:
300
Security:
WPA2 AES
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
22
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
8
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-30 up to 75
Weight [g]:
4656
Width [mm]:
492
Height [mm]:
705
Depth [mm]:
440
Hardware
CPU:
Atheros MIPS 24KC
CPU frequency [MHz]:
400
RAM [MB]:
32
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default login and password:
ubnt / ubnt
Video
Product description

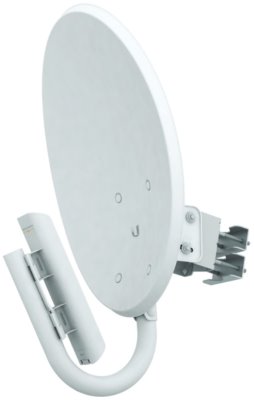

Unique outdoor unit Ubiquiti NanoBridge M3 with dual parabolic antenna and electronics placed in the satellite dish. The unit is powered by a passive 24V PoE source, which is included. The unit is designed mainly for construction of point-to-point links or as a client station of multipoint systems with TDMA airMAX protocol. The real transmission capacity of the link is about 90+ Mbps. The device can operate in the 3370 to 3730MHz band. The unit allows you to set the bandwidth of 5, 8, 10, 20, 25 and 40MHz.
AirMAX TDMA
The greatest advantage of any airMAX device is in addition to the high transfer rate thanks to the 802.11n standard, the use of TDMA time multiplex. The TDMA airMAX protocol provides excellent scalability and high throughput while maintaining low latencies in PtMP networks.
Package contains
Note: If you operate this facility in the Czech Republic, you do so at your own risk and expose yourself to possible prosecution by the CTU. Operation of this equipment is not possible without a license.
Download
CE Datasheet Firmware Návod k použitíTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
