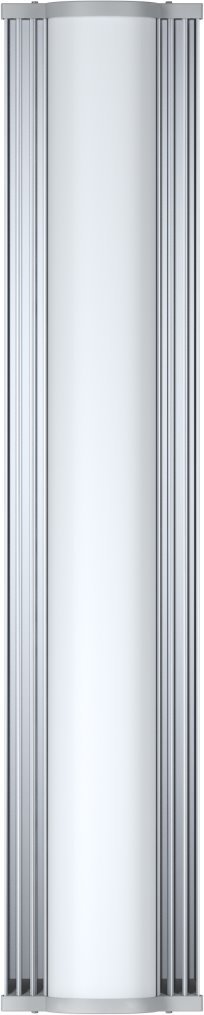

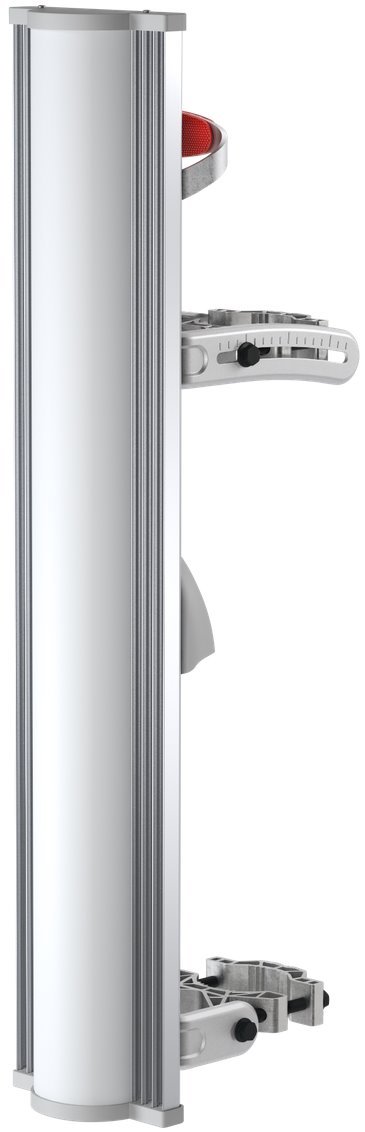

RF elements AS-2-17 - Array Sector Antenna 2.4 GHz, 17dBi
Your price excl. VAT
131.18 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 131.38 EUR |
| Your price incl. VAT (21%) | 158.97 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 10210176 | |
| Part No. | AS-2-17 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
17 dBi
AS-2-17
131.18 EUR
Parameters
Download
Video
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,6
F/B ratio [dB]:
21
Cross-Pol Isolation [dB]:
30
Wireless frequency:
2.4 GHz

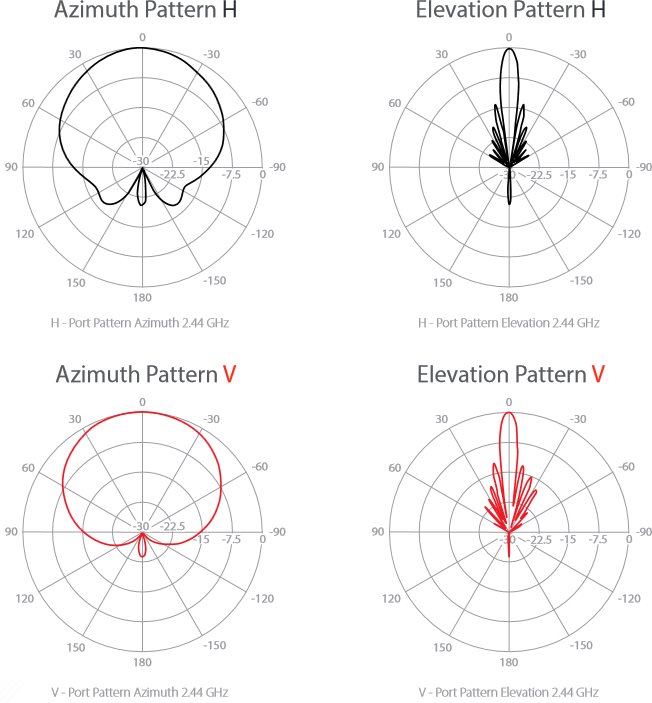

Elevation beam width (-6dB) [°]:
10
Azimuth beam width (-6dB) [°]:
115
Antenna type:
Sector
Antenna gain [dBi]:
17
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA male
Physical characteristics

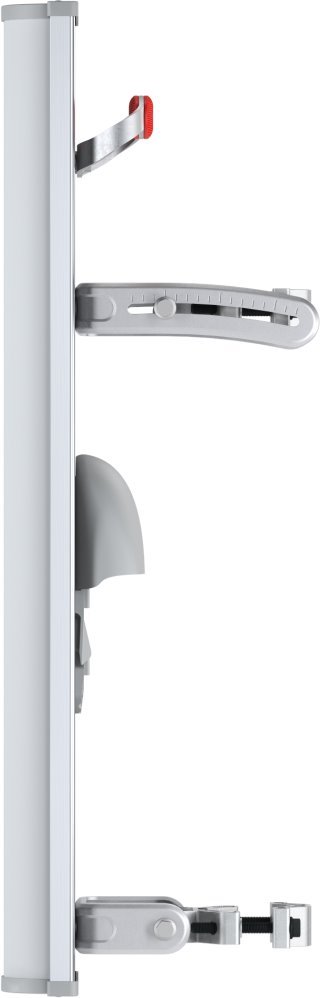

Designed for mast diameter [mm]:
40 up to 80
Wind load [km/h]:
160
Protection class:
IP55
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]:
-35 up to 60
Weight [kg]:
3,9
Width [mm]:
160
Height [mm]:
804
Depth [mm]:
63
Video
Product description

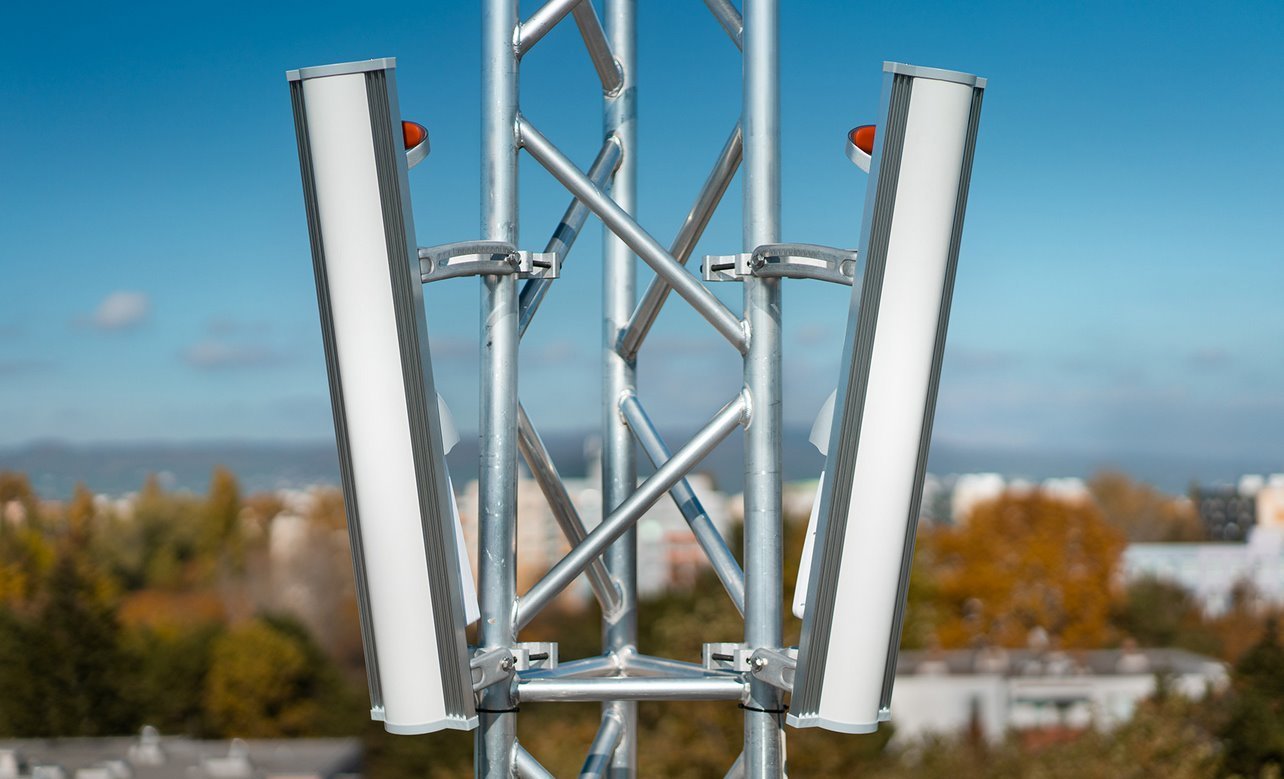

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. Sector dualpolarization antenna Array Sector 2-14 from the manufacturer RF Elements operating in the 2.4 GHz band with 17 dBi gain and a beam angle of 115°. Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.
Stable Gain Across The Band
The gain of Array Sector antennas remains very stable across the whole useful frequency band. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.
Wide Platform Compatibility

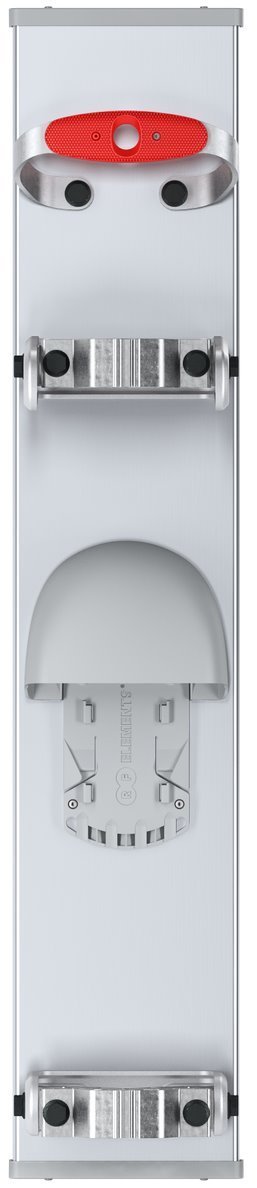

Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.
Package contains
