RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi

RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
×
0/0
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi

Your price excl. VAT
123.23 EUR
Recycling fee 0.20 EUR
Your price with RF 123.43 EUR
Your price incl. VAT (21%) 149.35 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

RF elements

Code10210170
Part No.AS-2-14
Warranty 24 months
You have a choice of 2 variantscompare all
RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
14 dBi
AS-2-14
123.23 EUR
In Stock
RF elements AS-2-17 - Array Sector Antenna 2.4 GHz, 17dBi
17 dBi
AS-2-17
137.69 EUR
Ordered, unknown date
  • Related products1
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
PK35S421V100

12.44 EUR excl. VAT
15.05 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR

Product description

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. Sector dualpolarization antenna Array Sector 2-14 from the manufacturer RF Elements operating in the 2.4 GHz band with 14 dBi gain and a beam angle of 112°. Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

RF elements AS-2-14

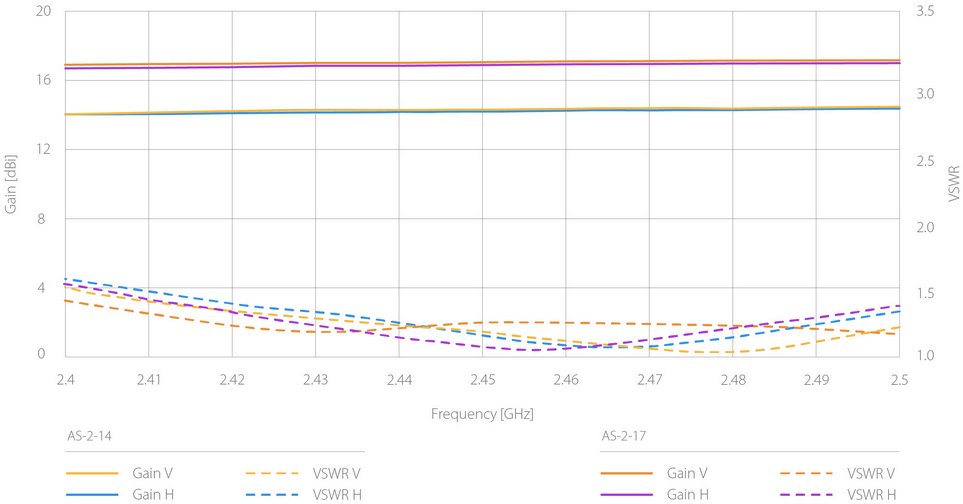

Stable Gain Across The Band

The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 2400 - 2484 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.

RF elements AS-2-14

Wide Platform Compatibility

Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.

RF elements AS-2-14
  • RF elements - StationBox S, StationBox S CARRIER CLASS, RockShield
  • Ubiquiti - Rocket M2, Rocket 2ac Prism
  • MikroTik - BaseBox, NetBox, NetMetal
  • TP-Link - Pharos WBS210
  • Cambium Networks - ePMP 1000AP a CSM

Package contains

  • Antenna
  • Holder (mast clamps, screws)
  • Plastic unit cover

Download

Datasheet

GPSR

Contact:
RF elements s.r.o.
Gagarinova 5B, Bratislava, Slovakia
info@rfelements.com

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 2 x 2
Polarization: VH
VSWR: < 1,6
F/B ratio [dB]: 21
Cross-Pol Isolation [dB]: 35
Wireless frequency: 2.4 GHz
Elevation beam width (-6dB) [°]: 21
Azimuth beam width (-6dB) [°]: 112
Antenna type: Sector
Antenna gain [dBi]: 14

Connectors and Interfaces

Rocket kit: Yes
RF connectors: (2) RSMA male

Physical characteristics

Designed for mast diameter [mm]: 40 up to 80
Wind load [km/h]: 160
Protection class: IP55
Purpose: Outdoor
Material: Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]: -35 up to 60
Weight [kg]: 3,7
Width [mm]: 160
Height [mm]: 804
Depth [mm]: 63
