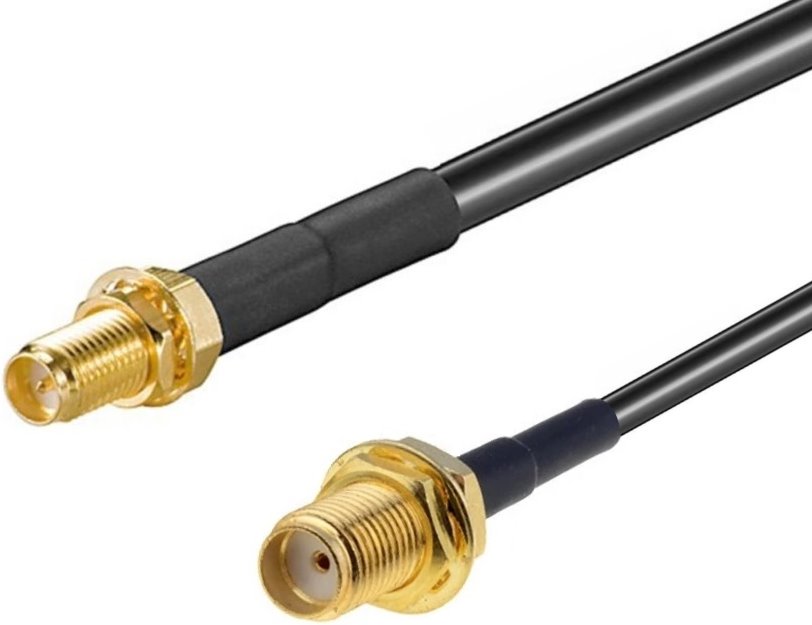

Pigtail RF240 6m - SMA female / RSMA female
Pigtail RF240 6m - SMA female / RSMA female
×
0/0
Your price excl. VAT
10.23 EUR
| Your price incl. VAT (21%) | 12.38 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 11010568 | |
| Part No. | 08-SF-RF-06 | |
| Warranty | 24 months | |
You have a choice of 13 variantscompare all
6m
08-SF-RF-06
10.23 EUR
Parameters
GPSR
Technical parameters
Wireless features
Wireless frequency:
0 up to 6 GHz
Connectors and Interfaces
Connectors:
SMA female - RSMA female, RSMA female - SMA female
Physical characteristics
Cable type:
RF240
Maximum loss - 5GHz [dB]:
4,9
Maximum loss - 2.4GHz [dB]:
3,2
Length [m]:
6
Product description
Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 6m is terminated with crimped connectors, SMA female on one side and RSMA female on the other.
Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 GHz and 5 GHz installations outdoors, including harsh climatic conditions to connect active and passive wireless components ( antenna / radio) or to extend an existing cable.
