Pigtail RF240 2m - RSMA female / N male
Pigtail RF240 2m - RSMA female / N male
×
0/0
Your price excl. VAT
8.33 EUR
| Your price incl. VAT (21%) | 10.08 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MaxLink |
|
|---|---|---|
| Code | 11010435 | |
| Part No. | 08-RF-NM-02 | |
| Warranty | 24 months | |
You have a choice of 13 variantscompare all
2m
08-RF-NM-02
8.33 EUR
Parameters
GPSR
Technical parameters
Wireless features
Wireless frequency:
0 up to 6 GHz
Connectors and Interfaces
Connectors:
RSMA female - N male, N male - RSMA female
Physical characteristics
Cable type:
RF240
Maximum loss - 5GHz [dB]:
2,3
Maximum loss - 2.4GHz [dB]:
1,5
Length [m]:
2
Product description

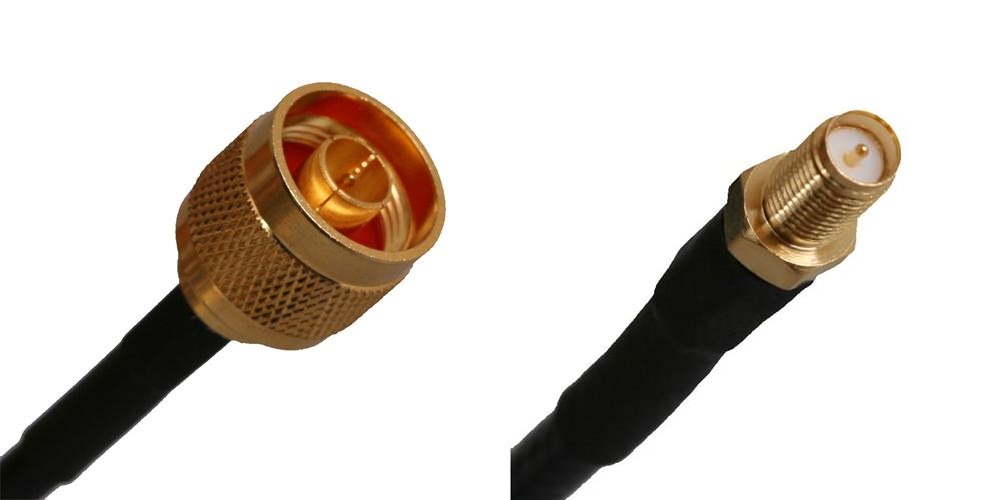

Professional high-frequency cable designed for the frequency range 0 to 6 GHz. The cable with a length of 2m is terminated with crimped connectors, RSMA female on one side and N male on the other.
Due to low attenuation and small bending radius , the cable between ISPs is often used in both 2.4 GHz and 5 GHz installations outdoors, including harsh climatic conditions to connect active and passive wireless components ( antenna / radio) or to extend an existing cable.
GPSR
DISCOMP s.r.o.
Cvokařská 8 Plzeň 31200 CZ
info@discomp.cz
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
