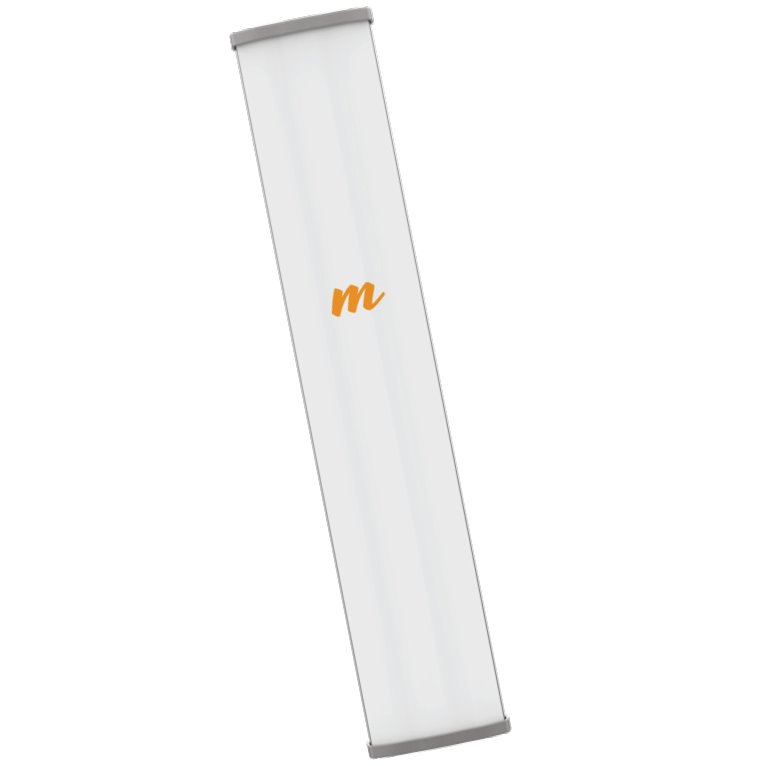

Mimosa N5-45x4 sector slant antenna 45°, 22dBi, 4x N female
Your price excl. VAT
310.98 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 311.18 EUR |
| Your price incl. VAT (21%) | 376.53 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | 10160092 | |
| Part No. | 100-00084(N5-45x4) | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
Nové/New - 22dBi, 4x N female
100-00084(N5-45x4)
310.98 EUR
S2501
6.70 EUR excl. VAT
8.11 EUR incl. VAT
In Stock
100-00037-01(A5c-EF)
680.89 EUR excl. VAT
823.96 EUR incl. VAT
Expected 15.4.2025
B-100-00037-01(A5c-EF)
519.04 EUR excl. VAT
628.12 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
MIMO, SISO:
4 x 4 (slant - 45° turned)
Polarization:
VH (slant)
Cross-Pol Isolation [dB]:
30
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
9
Azimuth beam width (-6dB) [°]:
42
Antenna type:
Sector
Antenna gain [dBi]:
22
Connectors and Interfaces
RF connectors:
(4) N female
Physical characteristics

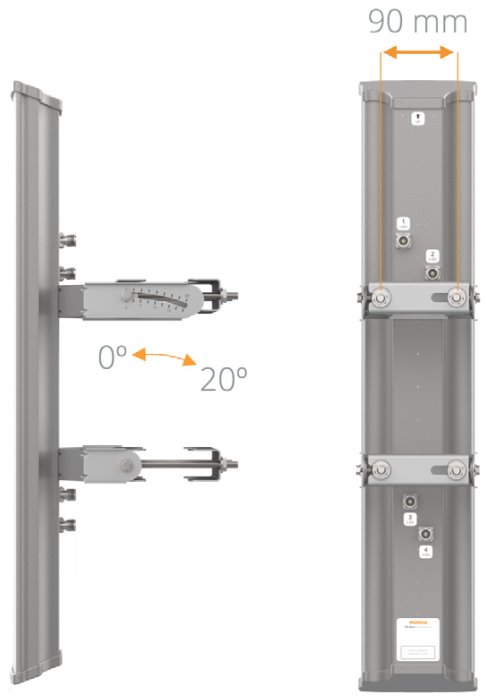

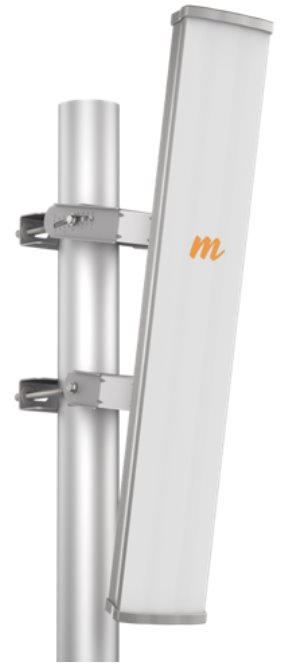

Designed for mast diameter [mm]:
38 up to 90
Wind load [km/h]:
200
Protection class:
IP55
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 55
Weight [kg]:
4,1
Width [mm]:
143
Height [mm]:
734
Depth [mm]:
76
Video
Product description
The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.
No Sidelobes
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42o half-power beamwidth with non-existent side lobes.
Industry’s Highest Front-to-Back Ratio
With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.
Beamformed High Gain

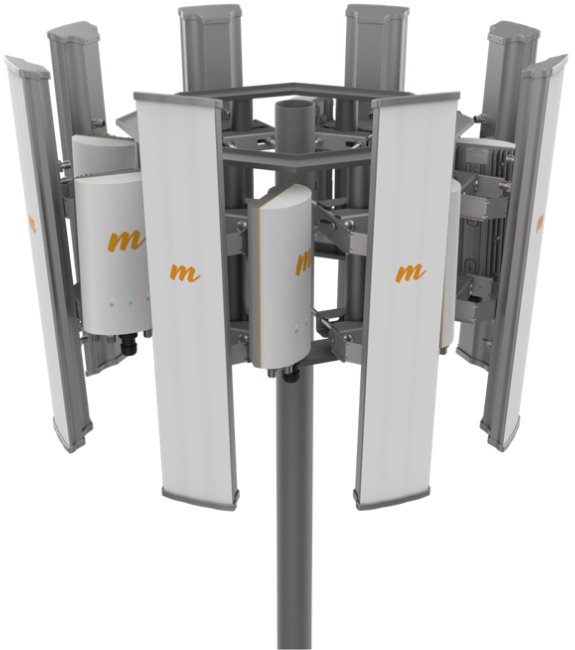

The N5-45x4, paired exclusively with Mimosa’s 4x4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink.

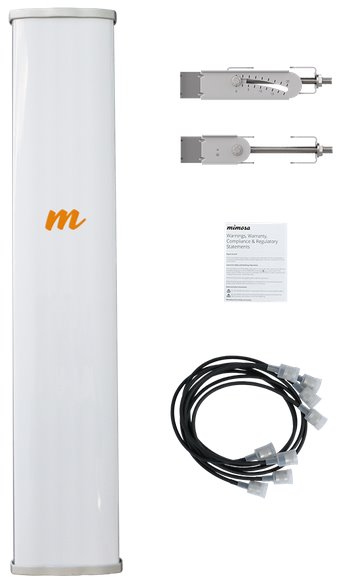

Package contains
