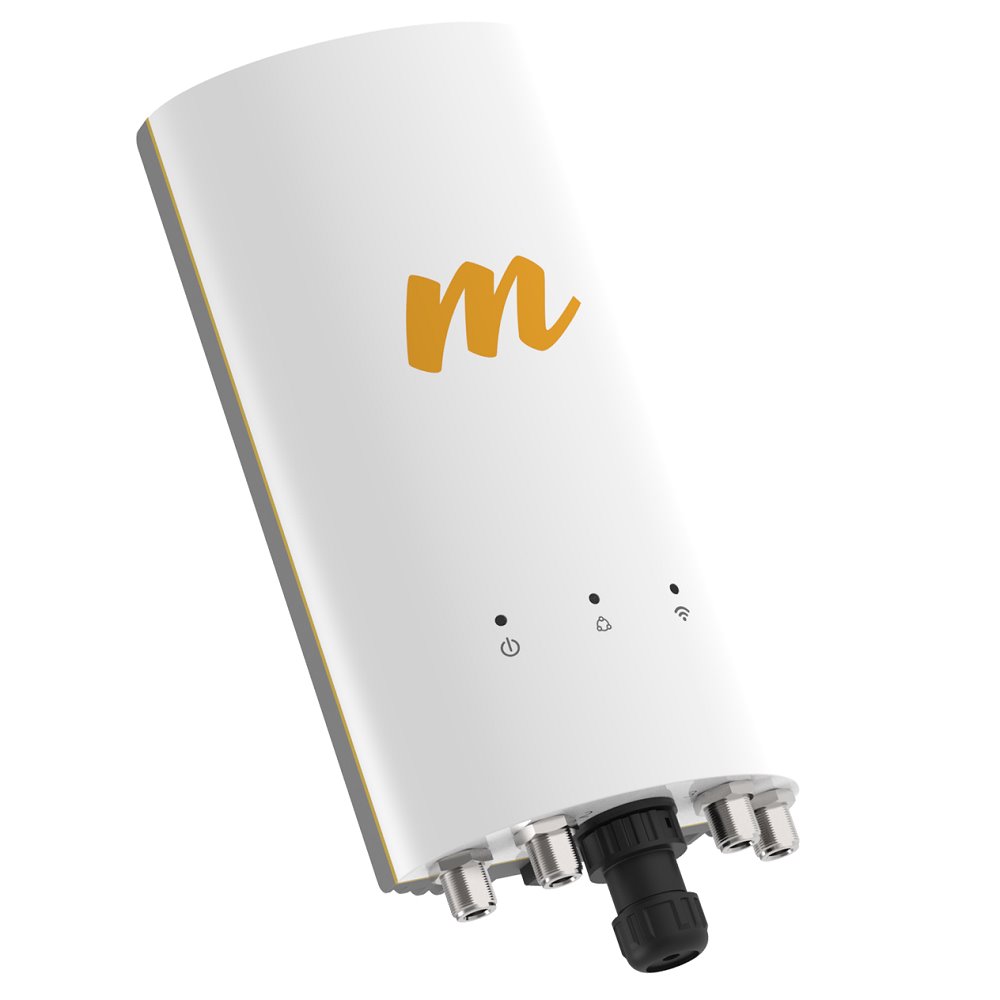

Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency - Bazar
Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency - Bazar
×
0/0
Unpacked
-11%
Your price excl. VAT
518.31 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 518.38 EUR |
| Your price incl. VAT (21%) | 627.24 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | B10160032 | |
| Part No. | B-100-00037-01(A5c-EF) | |
| Warranty | 12 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
S2501
6.49 EUR excl. VAT
7.85 EUR incl. VAT
In Stock
100-00075(N5-360)
315.96 EUR excl. VAT
382.55 EUR incl. VAT
In Stock
100-00084(N5-45x4)
325.68 EUR excl. VAT
394.31 EUR incl. VAT
In Stock
B-100-00084(N5-45x4)
201.19 EUR excl. VAT
243.68 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
Technical parameters
Wireless features
Sensitivity [dBm]:
-93
Maximum modulation:
256 QAM
Wireless frequency:
5 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1733
Tx power 5GHz [dBm]:
30
Security:
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO:
4 x 4
Type of antenna:
Detachable
Detachable antennas:
4
Connectors and Interfaces

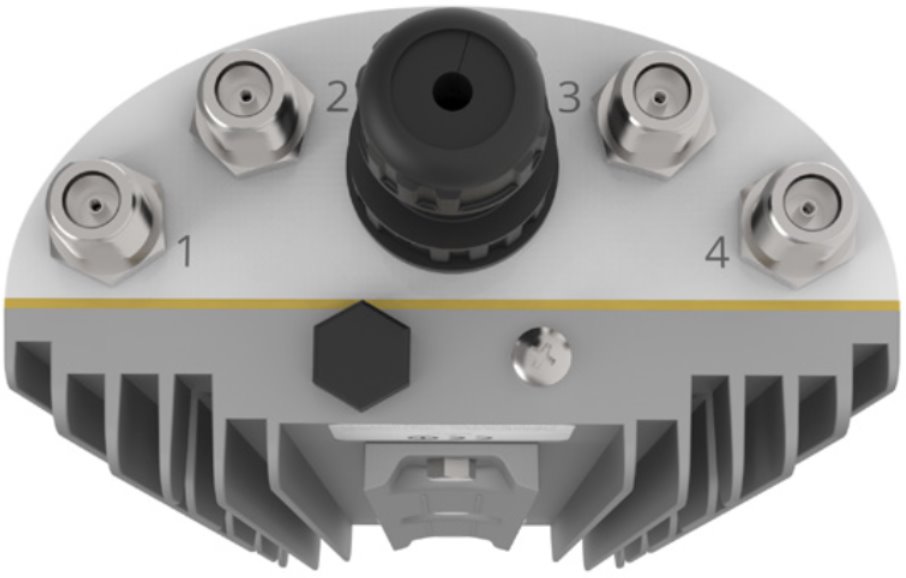

RF connectors:
(4) N female
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
GPS modul:
Yes
Other features:
WiFi management radio
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
25
Physical characteristics
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 55
Weight [g]:
1750
Width [mm]:
151
Height [mm]:
300
Depth [mm]:
85
Software
Operating mode:
Access Point
Default IP address:
Dynamic from DHCP, 192.168.1.10
Default login and password:
Is set by the user at the first startup
Video
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
The unit is only unpacked, it was used as a display piece when meeting with customers..
Increased Capacity at Each Site

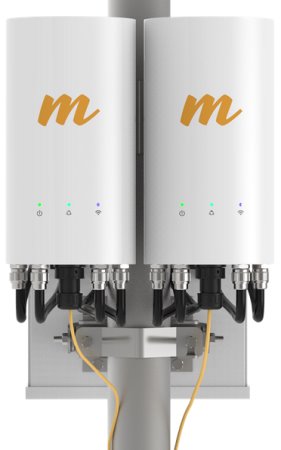

With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole.
Ultra-High Client Capacity

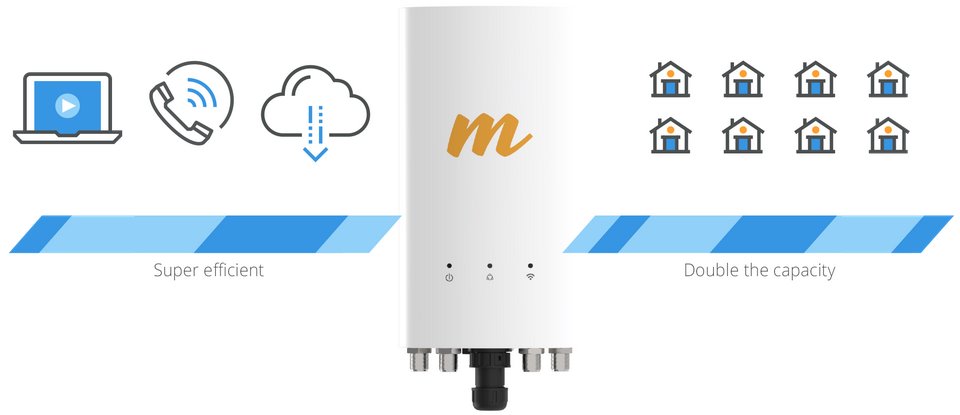

TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction and allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
Fiber Speeds
With client speeds capable of 500+ Mbps and access point capacity up to 1.5 Gbps, the A5 delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to- the-premises.
Extended Frequency
The new model A5c-EF (Extended Frequency) can operate from the 4900MHz up to 6400MHz frequency spectrum, which is next 200MHz above further than the previous model.
