MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 2024
MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 2024
×
0/0
Your price excl. VAT
74.80 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 74.87 EUR |
| Your price incl. VAT (21%) | 90.59 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10904180 | |
| Part No. | wAPR-2nD&EC200A-EU | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, LTE
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
25
2.4GHz MIMO:
1 x 1 SISO
Type of antenna:
Built-in
Antenna gain [dBi]:
2
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
9 .. 30V DC
Power type:
DC connector, PoE, 4-pin automotive
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Design:
Outdoor, On the wall, On the mast, Desktop, Ceiling
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 60
Width [mm]:
85
Height [mm]:
185
Depth [mm]:
30
Hardware
CPU:
QCA9531
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating mode:
Client, AP Router, Access Point, Client Router (wisp), Cellular router
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

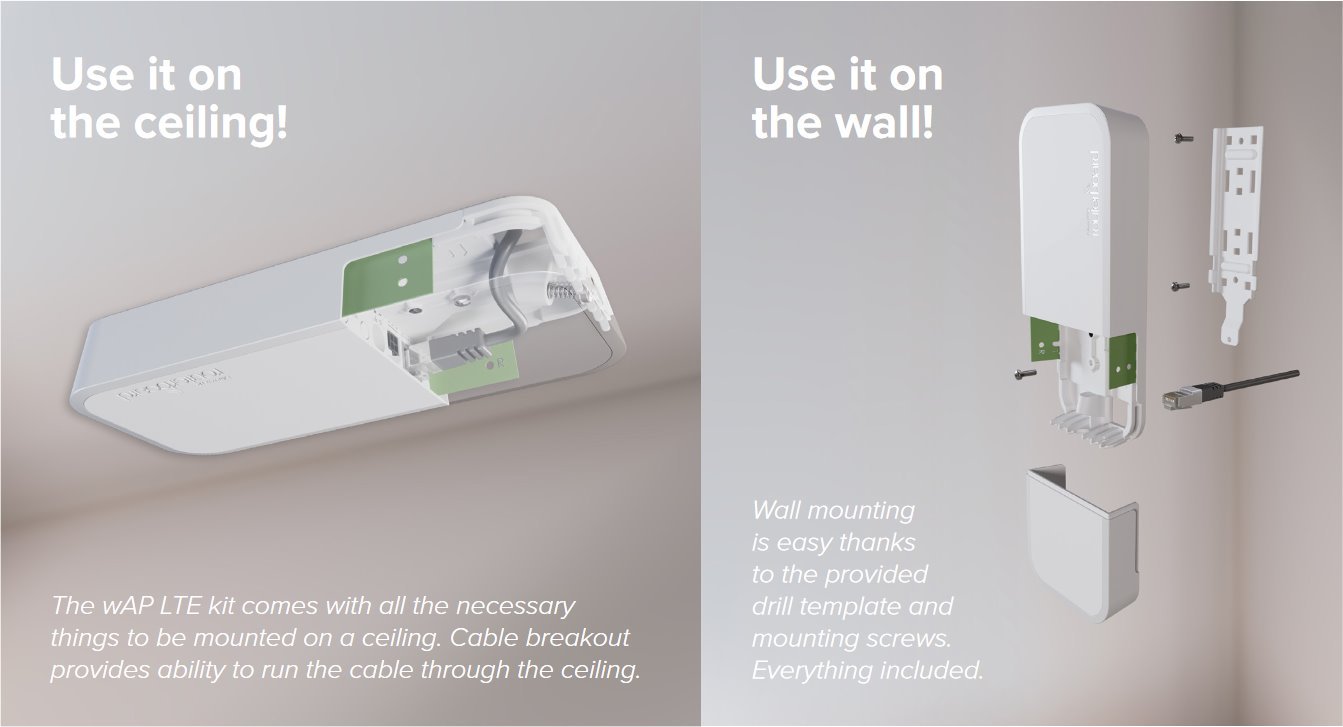

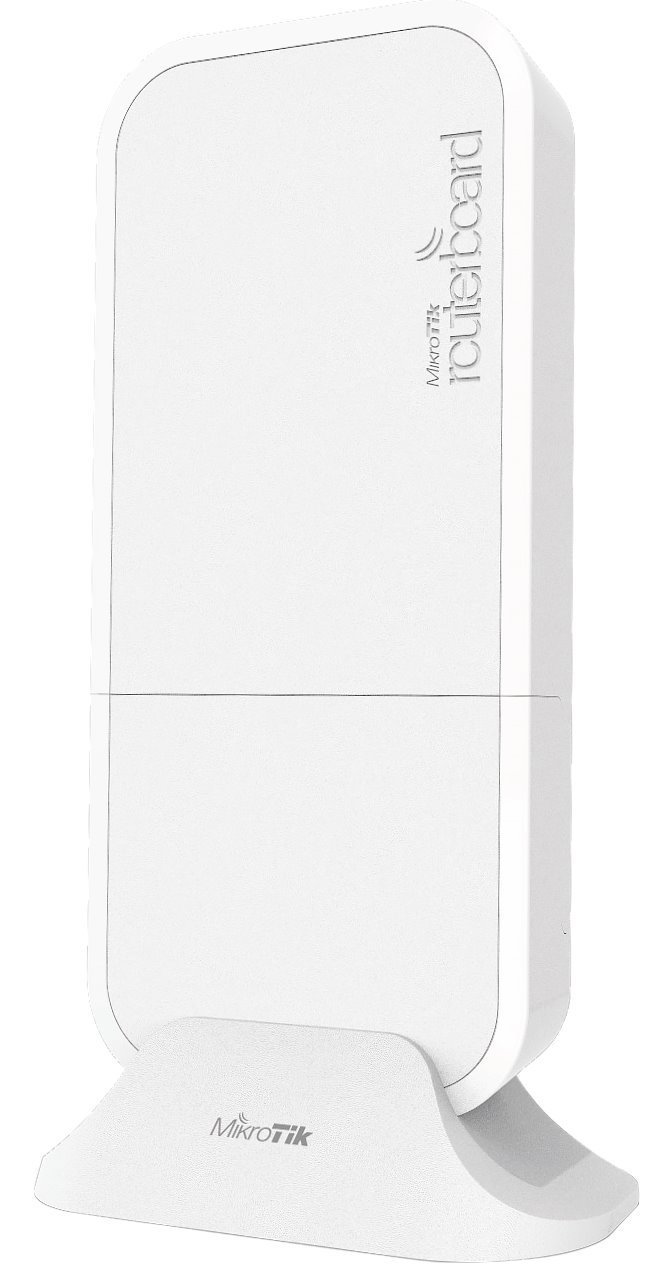

A new revision of the successful wAP LTE Kit model. It is a small access point in an outdoor design with the option of placing it indoors using the stand included in the package. Inside we find a built-in miniPCI-e LTE card EC200A-EU which supports 2G, 3G and 4G (LTE) networks. Furthermore, the wAP is also equipped with a built-in 4 dBi GSM antenna for connecting to a mobile operator. There is a 2.4 GHz radio part with a transmission speed of up to 300 Mbps for connecting home devices, and you can use one 10/100 Mbps LAN port with PoE support for cable devices.
Key Features
Package contents
Download
CE Datasheet Firmware (RouterOS / SwOS)GPSR
