MikroTik TG-BT5-OUT, IoT Bluetooth outdoor tag for KNOT
MikroTik TG-BT5-OUT, IoT Bluetooth outdoor tag for KNOT
×
0/0
Your price excl. VAT
12.66 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 12.73 EUR |
| Your price incl. VAT (21%) | 15.40 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300680 | |
| Part No. | TG-BT5-OUT | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
Outdoor
TG-BT5-OUT
12.66 EUR
Parameters
Download
Technical parameters
Power
Battery capacity [mAh]:
550
Physical characteristics
Protection class:
IP69
Weight [g]:
27
Width [mm]:
38
Height [mm]:
16
Depth [mm]:
32
Product description

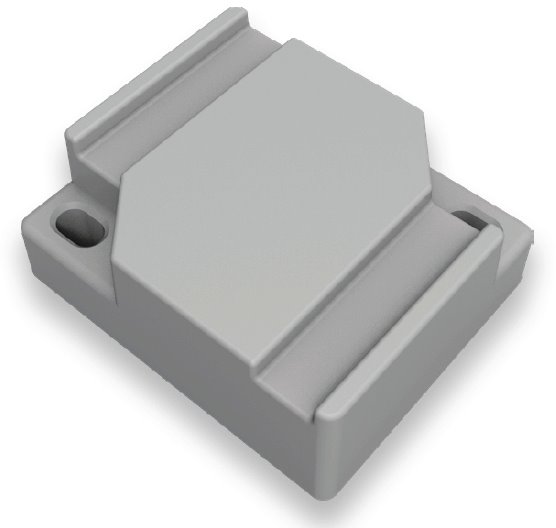

This version of our BLE tags comes completely sealed, cast in industrial-grade molds to give it a solid IP69k ingress protection rating. In other words, this tag is dust-tight – nothing gets in, and it is fully protected against close-range high-pressure, high-temperature spray downs. Perfect for industrial telemetry systems or to track all kinds of heavy equipment and materials at a construction site.
Supported BLE telemetry formats

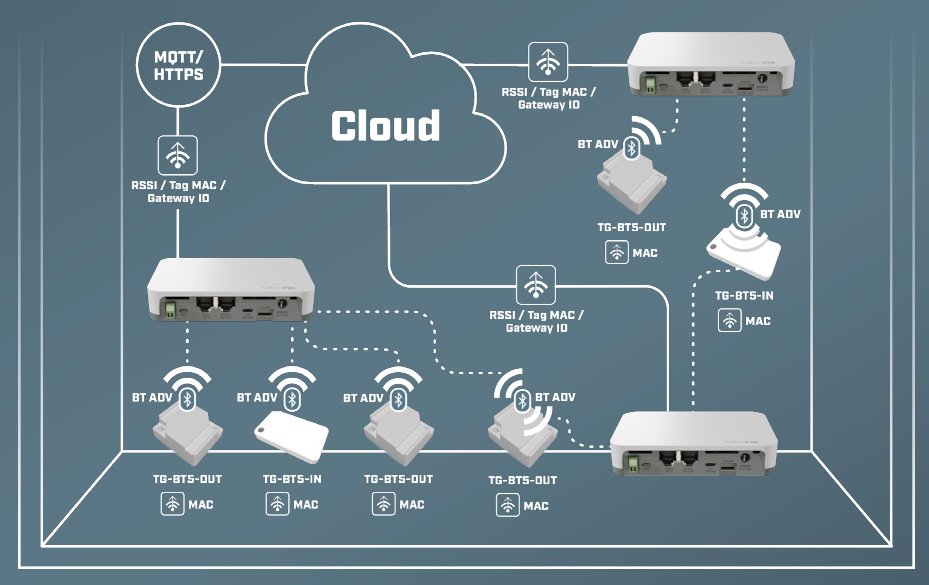

How does it work?

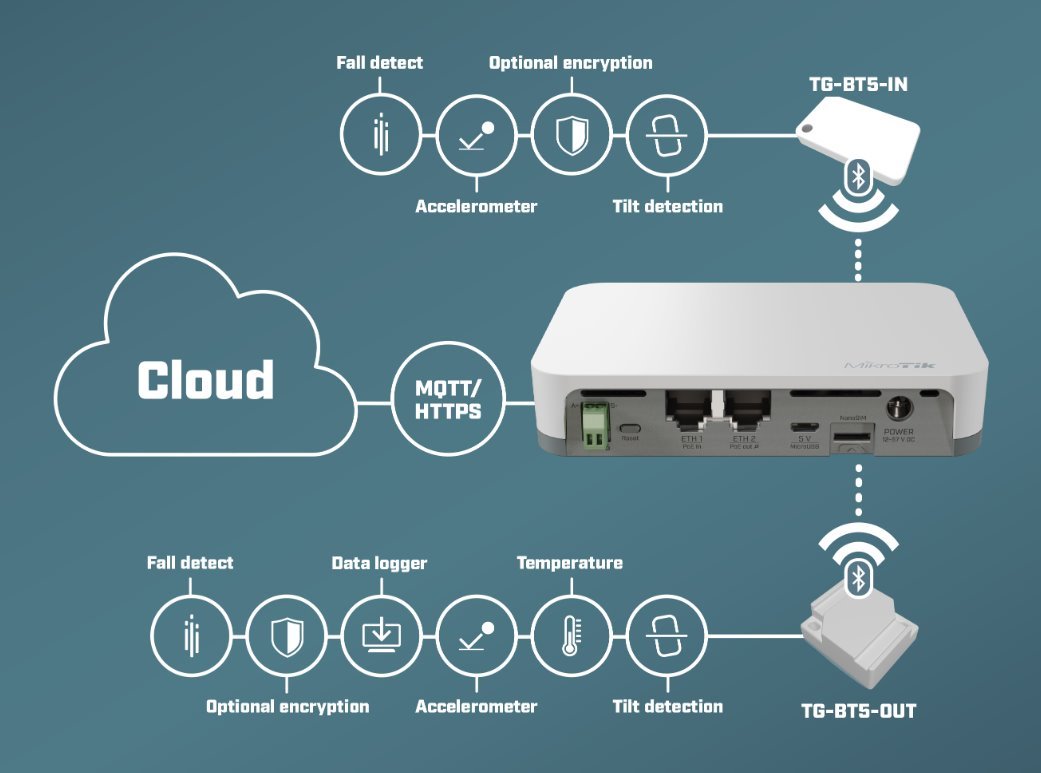

There is an NFC encoded MAC address and optional encryption. Unlike the indoor version, the outdoor tag comes with a built-in temperature sensor that can be used for condition monitoring. The ±0.5°C precision can be very useful in cold supply chain logistics.
TG-BT5-OUT features an improved 550 mAH battery that will last around five years (with a sending interval of 1s). It is suitable for strapping to all kinds of surfaces, and it can handle a temperature range of -20°C to 85°C.
You can use Beacon manager app to configure advertisement packet type, accelerometer parameters (power mode, triggers, data rate, etc), and update the firmware.
Download
Aplikační případy CE DatasheetTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
