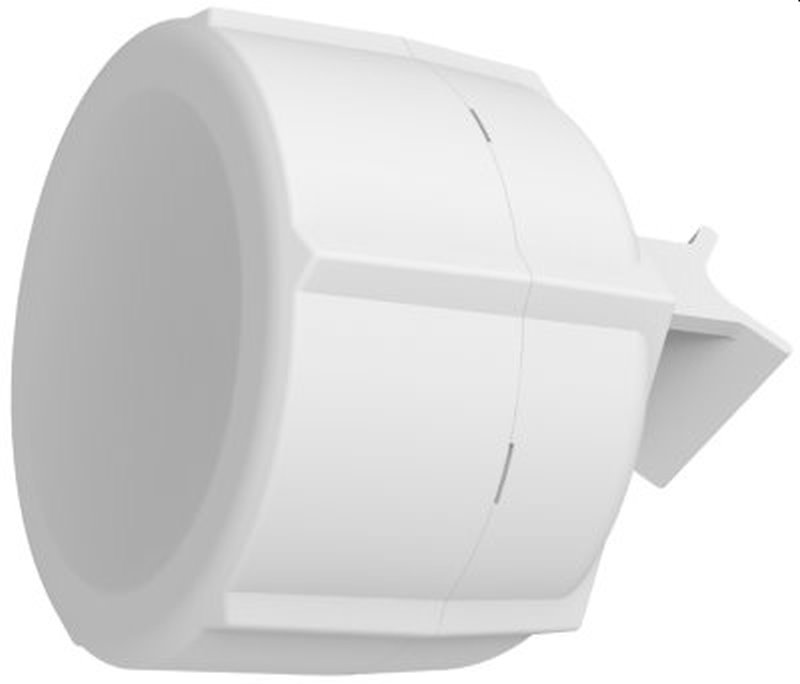

MikroTik RouterBOARD RBSXTR&R11e-LTE6, SXT LTE6 kit
MikroTik RouterBOARD RBSXTR&R11e-LTE6, SXT LTE6 kit
×
0/0
Sale
Your price excl. VAT
130.79 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 130.86 EUR |
| Your price incl. VAT (21%) | 158.34 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300590 | |
| Part No. | RBSXTR&R11e-LTE6 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
LTE 6
RBSXTR&R11e-LTE6
130.79 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
LTE
Elevation beam width (-6dB) [°]:
60
Azimuth beam width (-6dB) [°]:
60
Type of antenna:
Built-in
Internal antennas:
2

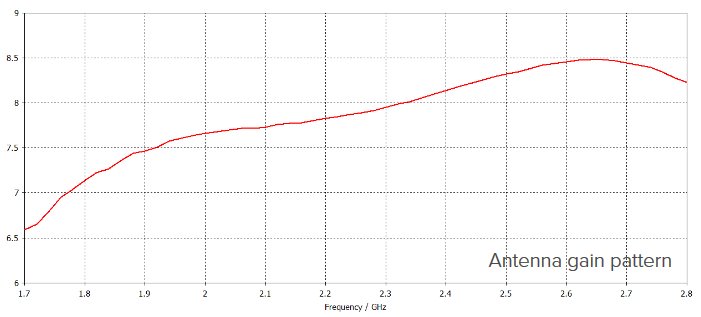

Antenna gain [dBi]:
9
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (12) 700 MHz, (41n) 2500 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
2
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
140
Height [mm]:
140
Depth [mm]:
103
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating mode:
3G/4G Router
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.
The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

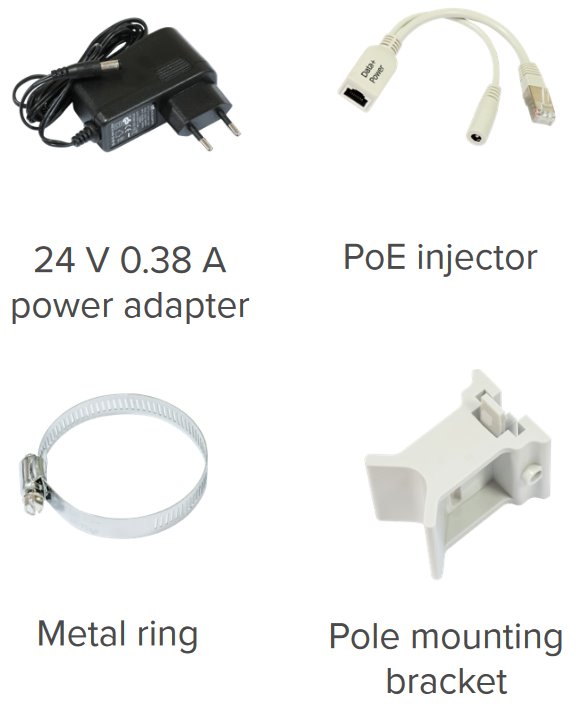

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
