MikroTik RouterBOARD RBSXTLTE3-7, SXT LTE kit
We are sorry, this product is no longer in our offer.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300236 | |
| Part No. | RBSXTR&R11e-LTE | |
You have a choice of 3 variantscompare all
LTE
RBSXTR&R11e-LTE
112.15 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
LTE
Elevation beam width (-6dB) [°]:
60
Azimuth beam width (-6dB) [°]:
60
Type of antenna:
Built-in
Internal antennas:
1

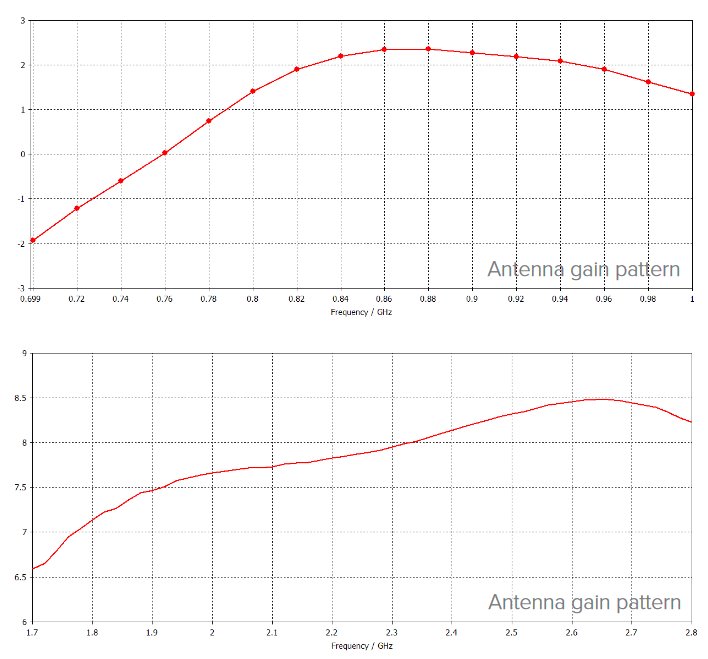

Antenna gain [dBi]:
9
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (4) 1700 MHz, (5) 850 MHz, (8) 900 MHz, (12) 700 MHz, (20) 800 MHz, (3) 1800 MHz, (7) 2600 MHz
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
SIM slot:
Yes
SIM slots quantity:
2
Power
Power over Ethernet:
802.3af, 802.3at, 18 .. 57V DC
Power type:
PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Width [mm]:
140
Height [mm]:
140
Depth [mm]:
103
Hardware
CPU:
QCA9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating mode:
3G/4G Router
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

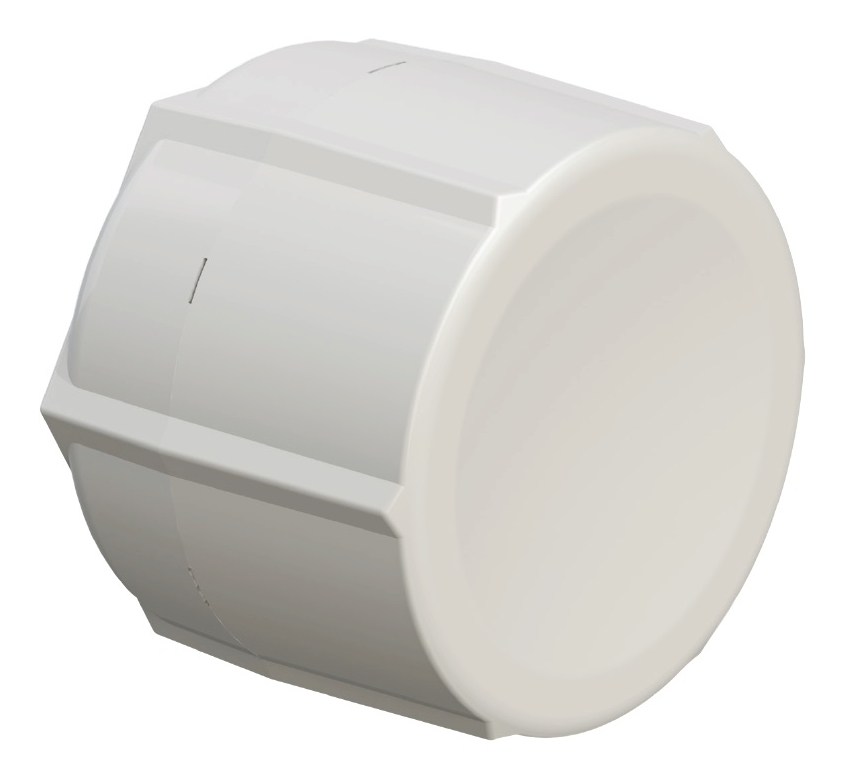

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18 - 57 V and is 802.3af/at compliant.
The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
Comparison with previous version
In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.

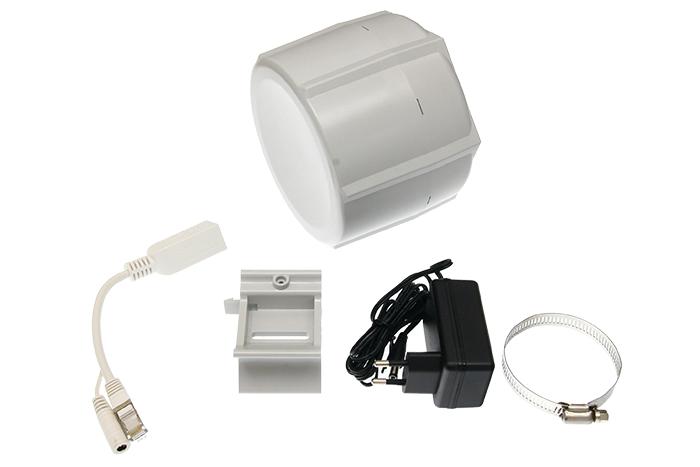

Package contains
Download
Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
