MikroTik RouterBOARD RBmAPL-2nD, mAP lite
Your price excl. VAT
23.49 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 23.56 EUR |
| Your price incl. VAT (21%) | 28.51 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
20 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300238 | |
| Part No. | RBmAPL-2nD | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
1x LAN
RBmAPL-2nD
23.49 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
22
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
< 2
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af, 802.3at, 10 .. 60V DC
Power type:
PoE, USB (5V)
PoE type:
PoE-In (only)
Max. power consumption [W]:
3,5
Power via connector/terminal:
5 .. 10V DC
Physical characteristics
Design:
Desktop
Operating temperature [°C]:
-30 up to 70
Width [mm]:
48
Height [mm]:
11
Depth [mm]:
49
Hardware
CPU:
QCA9533
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

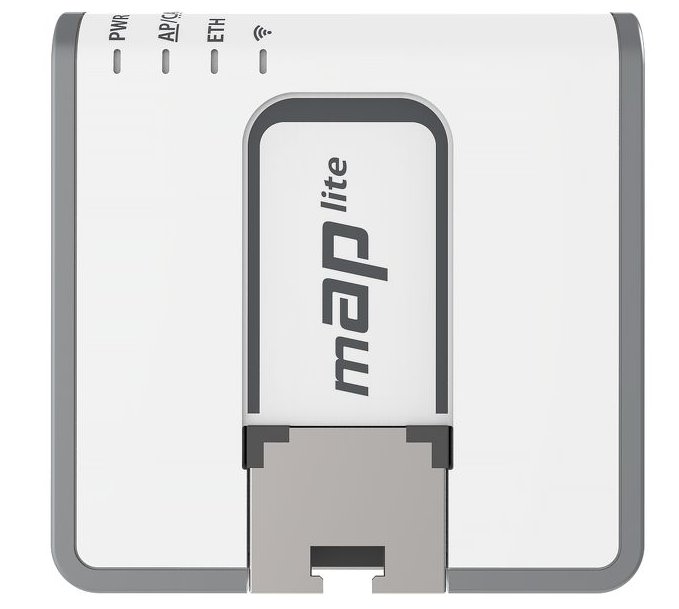

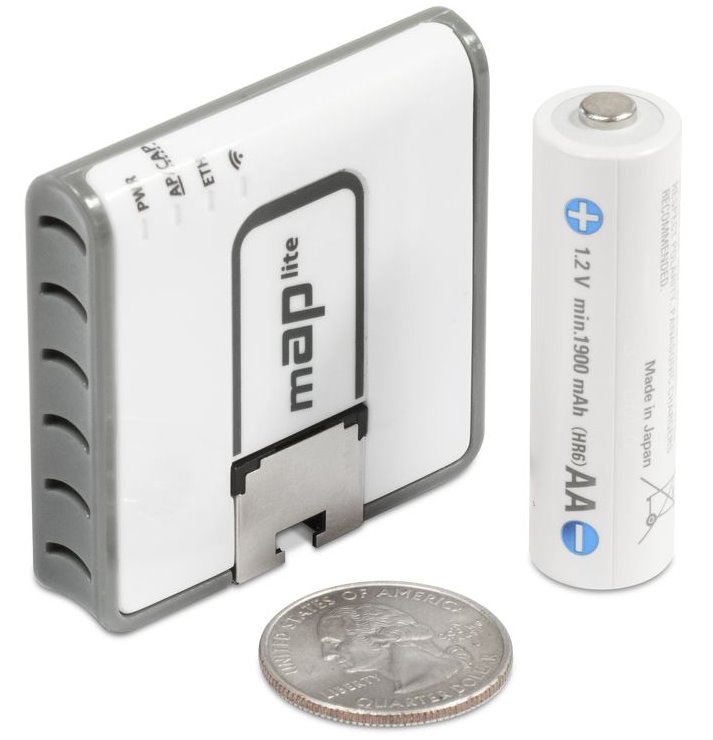

RBmAPL-2nD is the smallest wireless Access Point with full RouterOS support and a built-in 2.4GHz radio part with support for 802.11b/g/n standards. The whole device is barely bigger than a matchbox and a special ethernet port was used to make it.
RBmAPL-2nD is an excellent device suitable as a travel router to create a WiFi hotspot or as a client device to increase the range of your mobile devices.

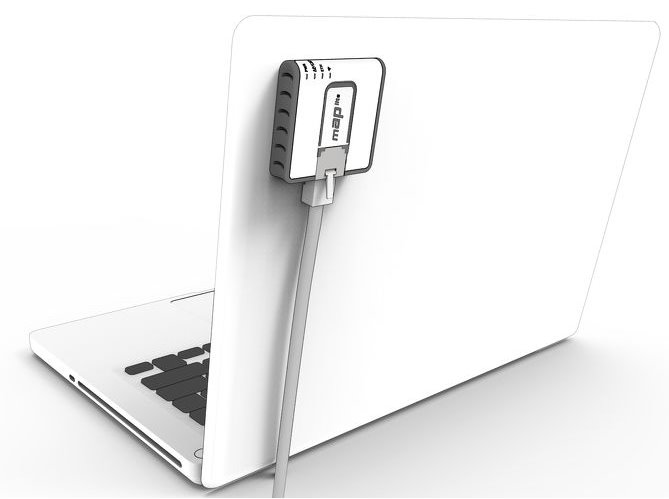

Built-in magnet
The router comes with a built-in magnet, thanks to which it will stick to any iron surface - useful when configuring MikroTik servers with your mobile phone/tablet. In the case of non-metallic material, a double-sided sticker is also included in the package.
Important features
Download
CE Datasheet Firmware (RouterOS / SwOS) PoE-IN compatibility list Quick Guide RouterOS software manualGPSR
