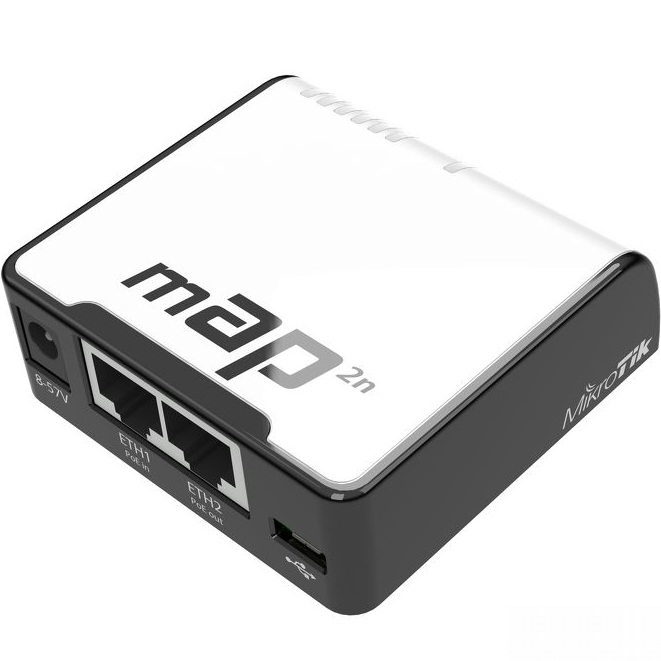

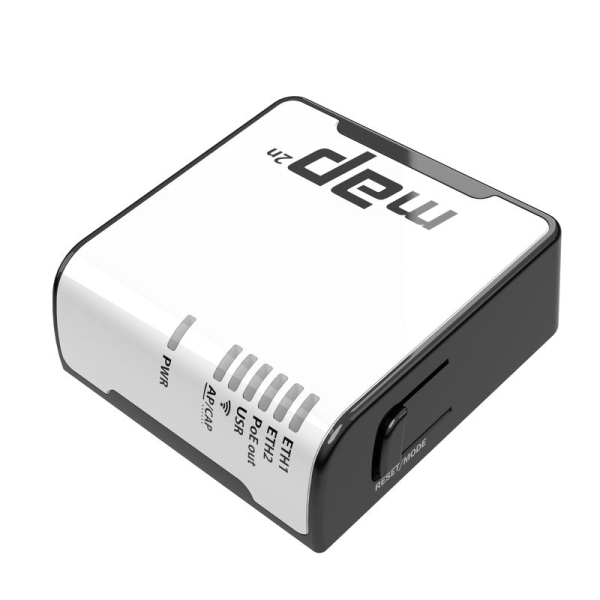

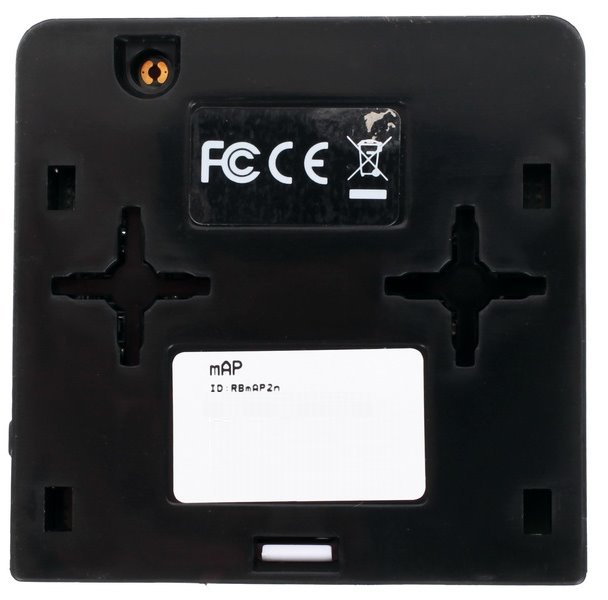

MikroTik RouterBOARD RBmAP2nD, mAP
Your price excl. VAT
33.29 EUR
Recycling fee | 0.07 EUR |
---|---|
Your price with RF | 33.36 EUR |
Your price incl. VAT (21%) | 40.37 EUR |
blank |
Availability
at our branches
at our branches
Per orig. box:
20 pcs.
Manufacturer |
MikroTik |
|
---|---|---|
Code | 10300190 | |
Part No. | RBmAP2nD | |
Warranty | 24 months |
You have a choice of 2 variantscompare all
2x LAN
RBmAP2nD
33.29 EUR
ZDROJ-24/0,38
1.58 EUR excl. VAT
2.01 EUR incl. VAT
In Stock
POE-24-12W
6.05 EUR excl. VAT
7.41 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Tx power [dBm]:
22
Wireless frequency:
2.4 GHz
WiFi standards:
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
300
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
< 2
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
USB ports 2.0:
1
USB:
Yes
Power
Power over Ethernet:
10 .. 57V DC
Power type:
DC connector, PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
2
Power via connector/terminal:
10 .. 57V DC
Physical characteristics
Design:
Desktop
Operating temperature [°C]:
-10 up to 70
Width [mm]:
68
Height [mm]:
19
Depth [mm]:
68
Hardware
CPU:
AR9531
CPU frequency [MHz]:
650
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description
The mAP (micro Access Point) is a tiny size wireless 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
