MikroTik RouterBOARD RBLHGGR&R11e-LTE6, LHGG LTE6 kit
We are sorry, this product is no longer in our offer.
solidMOUNT
21.04 EUR excl. VAT
25.46 EUR incl. VAT
In Stock
QMP-LHG
4.75 EUR excl. VAT
5.75 EUR incl. VAT
In Stock
LHGmount
9.45 EUR excl. VAT
11.43 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
LTE
Elevation beam width (-6dB) [°]:
25
Azimuth beam width (-6dB) [°]:
25
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
17
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (12) 700 MHz, (41n) 2500 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
SIM slot:
Yes
SIM slots quantity:
1
Power
Power over Ethernet:
802.3af, 802.3at, 12 .. 57V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
8
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 70
Width [mm]:
391
Height [mm]:
391
Depth [mm]:
237
Hardware
CPU:
88F3720
CPU frequency [MHz]:
800
CPU cores:
2
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating mode:
3G/4G Router
Operating system:
RouterOS - L3
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

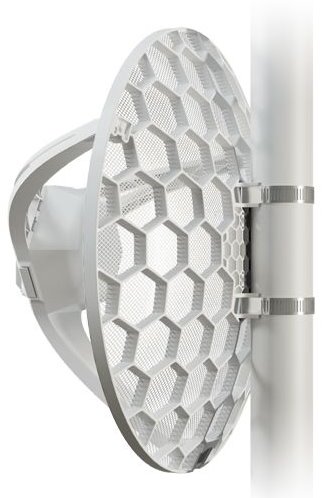

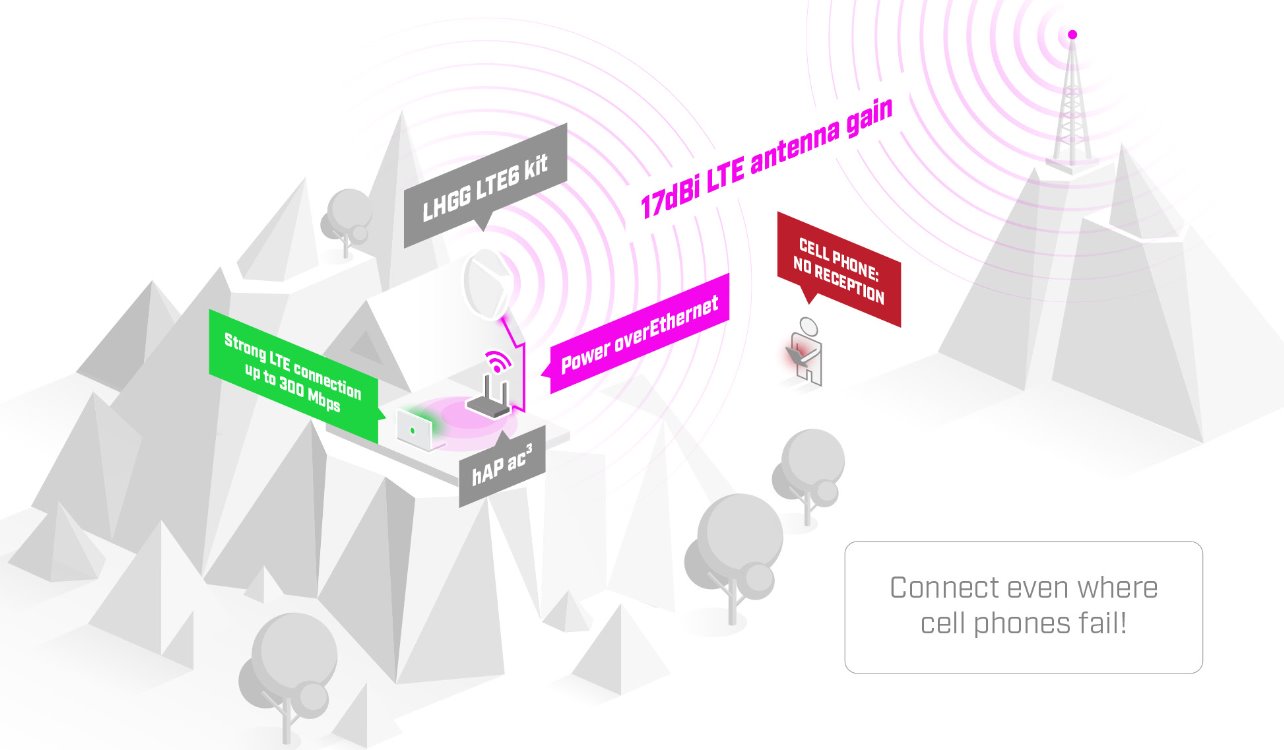

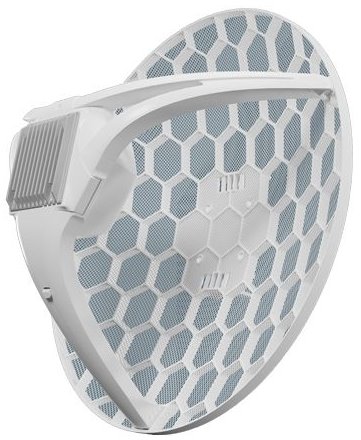

The LHGG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Gigabit LAN port, has a built in high quality 4G/LTE Category 6 modem for speeds of up to 300 Mbit/s downlink and 50 Mbit/s uplink.
Supported bands
Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS)Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
