MikroTik RouterBOARD RB912UAG-5HPnD, 802.11a/n, RouterOS L4, miniPCIe
MikroTik RouterBOARD RB912UAG-5HPnD, 802.11a/n, RouterOS L4, miniPCIe
×
0/0
Your price excl. VAT
58.52 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 58.59 EUR |
| Your price incl. VAT (21%) | 70.89 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
20 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300132 | |
| Part No. | RB912UAG-5HPnD | |
| Warranty | 24 months | |
MMCX-NM90
4.92 EUR excl. VAT
5.95 EUR incl. VAT
In Stock
TPA-RBC
37.53 EUR excl. VAT
45.48 EUR incl. VAT
In Stock
CA411-711
10.63 EUR excl. VAT
12.86 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.45 EUR excl. VAT
4.17 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
30
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Connectors and Interfaces
RF connectors:
(2) MMCX
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
MiniPCI-e slots:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Power over Ethernet:
8 .. 30V DC
Power type:
DC connector, PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
14
Power via connector/terminal:
8 .. 30V DC
Physical characteristics
Design:
RouterBOARD
Operating temperature [°C]:
-40 up to 70
Width [mm]:
105
Height [mm]:
15
Depth [mm]:
105
Hardware
CPU:
AR9342
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
64
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

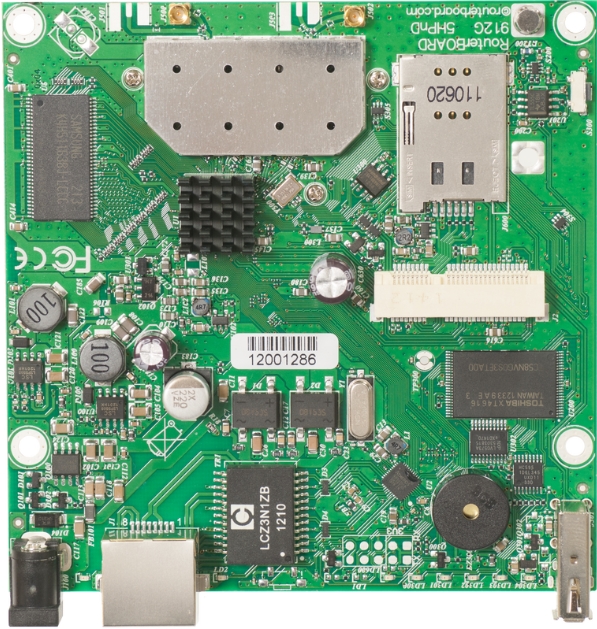

The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
