MikroTik RouterBOARD RB5009UPr+S+OUT
Your price excl. VAT
244.67 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 244.74 EUR |
| Your price incl. VAT (21%) | 296.14 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300726 | |
| Part No. | RB5009UPr+S+OUT | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
MTP250-53V47-OD
74.80 EUR excl. VAT
90.60 EUR incl. VAT
In Stock
MTP250-26V94-OD
74.80 EUR excl. VAT
90.60 EUR incl. VAT
In Stock
RS-150-48
25.88 EUR excl. VAT
31.41 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S3155-20
6.29 EUR excl. VAT
7.70 EUR incl. VAT
In Stock
ML-S31D-20
6.57 EUR excl. VAT
8.03 EUR incl. VAT
Expected 27.1.2025
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-SFP-RJ45-1G
15.84 EUR excl. VAT
19.25 EUR incl. VAT
In Stock
ML-S85D-05
6.57 EUR excl. VAT
8.03 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
Multiple WAN:
Yes
LAN speed:
(7) 10/100/1000Mbps + (1) 100M/1G/2.5G
Gigabit LAN:
Yes
Optical interfaces:
(1) 1/10Gbps
USB:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 24 .. 57V DC
Power type:
PoE, DC connector, DC terminal
PoE Input ports:
8
PoE type:
PoE-Out + PoE-In
PoE-Out standards:
802.3af, 802.3at, Passive 24V, Passive 48V
PoE Out ports:
8
PoE budget [W]:
130
Max. power consumption [W]:
15
Power via connector/terminal:
24 .. 57V DC
Physical characteristics
Design:
Outdoor
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
-40 up to 70
Width [mm]:
222
Height [mm]:
239
Depth [mm]:
57
Hardware
CPU:
88F7040
CPU frequency [MHz]:
1400
CPU cores:
4
Internal storage [MB]:
1024
RAM [MB]:
1024
Software
Operating system:
RouterOS - L5
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

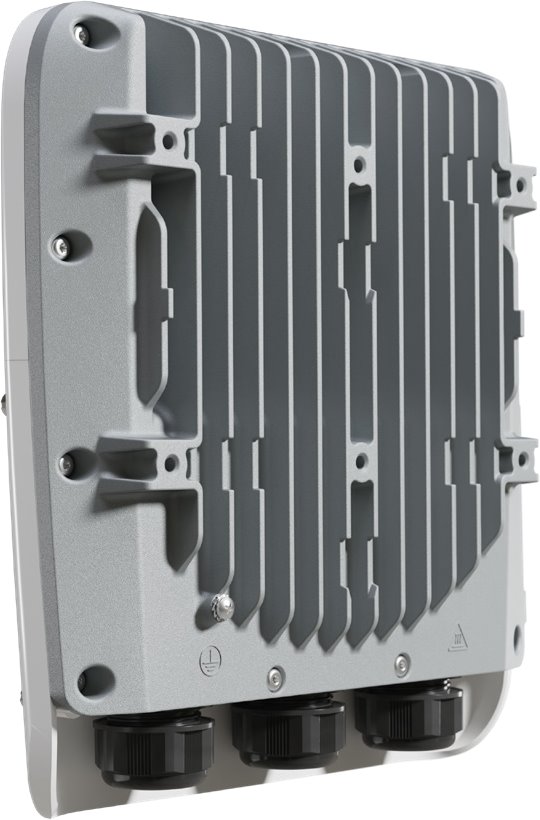

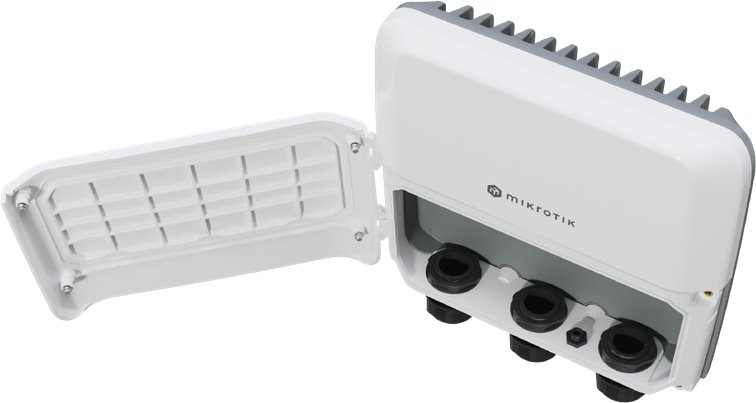

RB5009UPr+S+OUT is a high performance PoE router that comes with passive cooling, IP66 outdoor chassis and high performance (60 - 90% higher than RB4011) which is due to the 64-bit ARM architecture of the processor with a clock speed of 1400 MHz, 1GB RAM type DDR4 and 1GB NAND storage. The router has 7x Gigabit LAN, 1x 2.5Gbit LAN with PoE IN and PoE OUT (802.3af/at) on all eight Ethernet ports with a total PoE budget of 130 W, DC terminal block (24 .. 57V DC), 1× SFP+ slot and 1× USB 3.0. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
