MikroTik RouterBOARD RB2011iLS-IN
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
Multiple WAN:
Yes
LAN speed:
(5) 10/100/1000Mbps + (5) 10/100Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Power
Power over Ethernet:
8 .. 30V DC
Power type:
DC connector, PoE
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
6
Power via connector/terminal:
8 .. 30V DC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
-35 up to 65
Width [mm]:
228
Height [mm]:
24
Depth [mm]:
90
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
128
RAM [MB]:
64
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

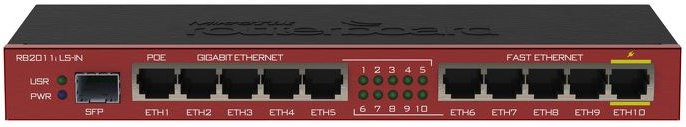

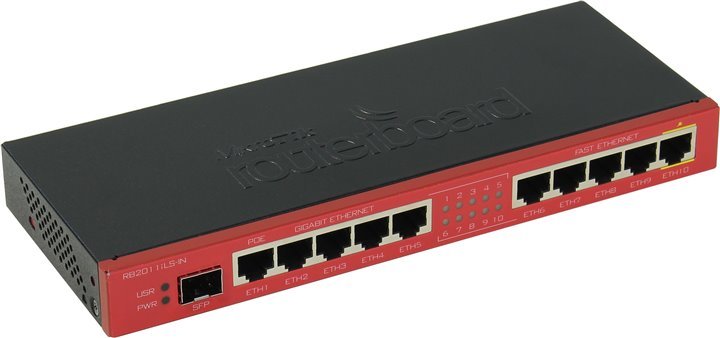

MikroTik RouterBOARD RB2011iLS-IN is an improvement of RB2011LS-IN - adds PoE output on port 10. is the first RouterBOARD with the possibility of an optical port using an SFP module. Box router in wine-colored metal case designed as CPE for FTTx networks. This model has a total of 11 ports - 1x Gigabit SFP port + 5x 10/100 Mbps Ethernet port + 5x Gigabit Ethernet port. One Gigabit port enables proprietary PoE power over Ethernet, the ETH10 Ethernet port enables proprietary PoE power to the connected device. The router is not equipped with a serial port, it is supplied with an external power supply, it is pre-installed with RouterOS Level4. A plastic kit for wall mounting can be purchased with the RouterBoard.
Articles and reviews
SFP compatibility listDownload
CE Datasheet Firmware (RouterOS / SwOS) Quick Guide RouterOS software manualGPSR
