MikroTik RouterBOARD RB1100Dx4, RB1100AHx4 Dude Edition
MikroTik RouterBOARD RB1100Dx4, RB1100AHx4 Dude Edition
×
0/0
Your price excl. VAT
293.83 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 293.90 EUR |
| Your price incl. VAT (21%) | 355.62 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300281 | |
| Part No. | RB1100Dx4 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
Dude Edition
RB1100Dx4
293.83 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
M.2 slots:
2
Multiple WAN:
Yes
Slot for Memory Card:
microSD
LAN speed:
(13) 10/100/1000Mbps
Gigabit LAN:
Yes
Serial port:
RS-232
Power
Power over Ethernet:
802.3at, 20 .. 57V DC
Power type:
Mains power (230V), PoE, DC terminal
PoE type:
PoE-In (only)
Redundant power supply:
Yes
Max. power consumption [W]:
25
Power via connector/terminal:
230V AC, 12 .. 57V DC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Width [mm]:
444
Height [mm]:
47
Depth [mm]:
148
Hardware
CPU:
AL21400
CPU frequency [MHz]:
1400
CPU cores:
4
Internal storage [MB]:
128 + 60GB (m.2 SATA)
RAM [MB]:
1024
Software
Operating system:
RouterOS - L6
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

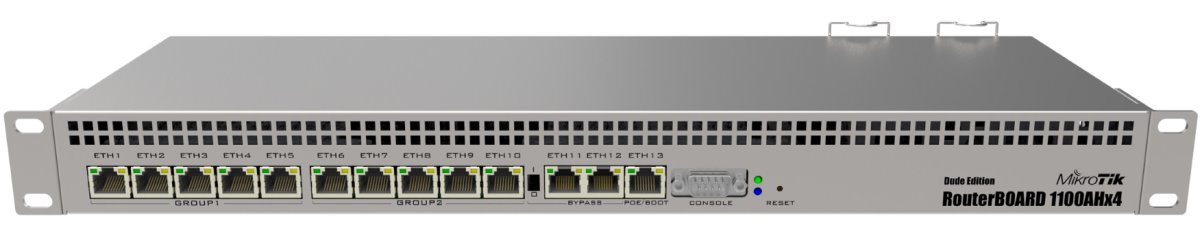

The new RB1100AHx4 Dude Edition uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company. The chip is clocked at 1.4GHz, for a maximum throughput of up to 7.5Gbit. The RB1100AHx4 Dude Edition supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device.

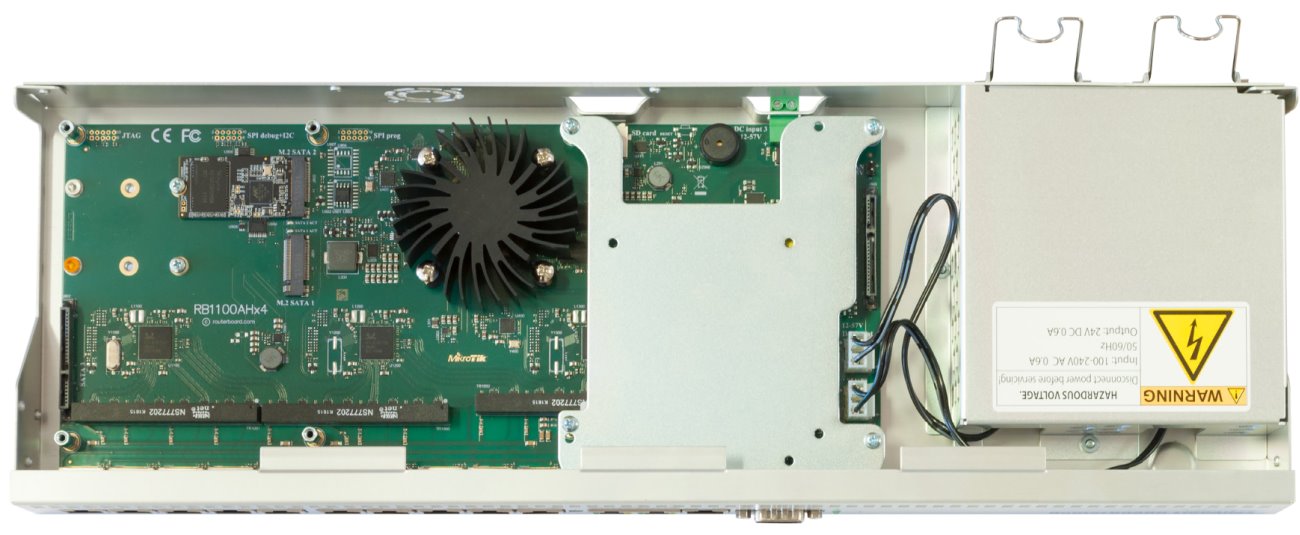

Unit features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive and comes with Dude package already installed to work out-of-the box.

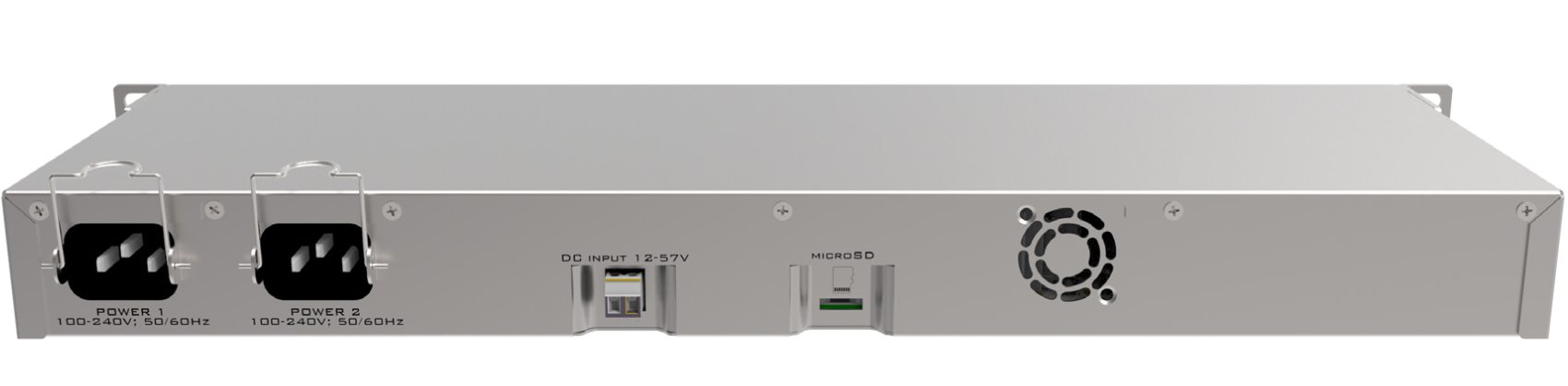

Unit features two IEC failover power connectors, supports passive or 802.3at/af PoE input and has a DC telecom power connector for -48V DC powering. It uses passive cooling and is absolutely quiet.

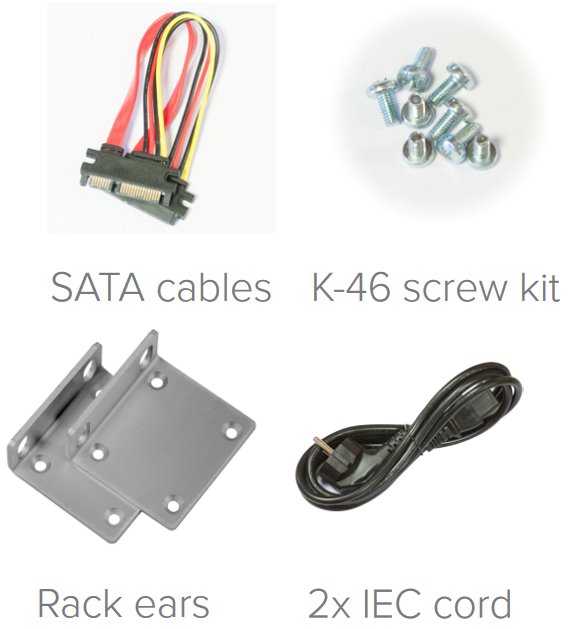

Package contains
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
