MikroTik RouterBOARD L23UGSR-5HaxD2HaxD, dual-band WiFi6, 4x MMCX, RouterOS L4

MikroTik RouterBOARD L23UGSR-5HaxD2HaxD, dual-band WiFi6, 4x MMCX, RouterOS L4
MikroTik RouterBOARD L23UGSR-5HaxD2HaxD, dual-band WiFi6, 4x MMCX, RouterOS L4
×
0/0
MikroTik RouterBOARD L23UGSR-5HaxD2HaxD, dual-band WiFi6, 4x MMCX, RouterOS L4
MikroTik RouterBOARD L23UGSR-5HaxD2HaxD, dual-band WiFi6, 4x MMCX, RouterOS L4

Your price excl. VAT
74.80 EUR
Recycling fee 0.07 EUR
Your price with RF 74.87 EUR
Your price incl. VAT (21%) 90.59 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

MikroTik

Code10904235
Part No.L23UGSR-5HaxD2HaxD
Warranty 24 months
  • Related products8
MikroTik Passive Gigabit PoE adapter with LED
RBGPOE

4.26 EUR excl. VAT
5.24 EUR incl. VAT
In Stock
MikroTik R11e-LR2, LoRa miniPCI-e card, 2,4 GHz frequency
R11e-LR2

49.68 EUR excl. VAT
60.20 EUR incl. VAT
In Stock
MikroTik R11e-LR8 (R11e-LoRa8), LoRa miniPCI-e card, 863-870 MHz
R11e-LR8

66.24 EUR excl. VAT
80.24 EUR incl. VAT
In Stock
MikroTik R11e-LoRa9, LoRa miniPCI-e card, 902-928 MHz
R11e-LR9

66.24 EUR excl. VAT
80.24 EUR incl. VAT
Not in stock
MikroTik R11eL-EC200A-EU, LTE miniPCI-e modem, 2x u.Fl
R11eL-EC200A-EU

48.09 EUR excl. VAT
58.27 EUR incl. VAT
In Stock
MikroTik R11eL-FG621-EA, LTE miniPCI-e modem, 2x u.Fl
R11eL-FG621-EA

63.06 EUR excl. VAT
76.39 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
show moreshow less 3
Parameters
Download
Video
GPSR

Product description

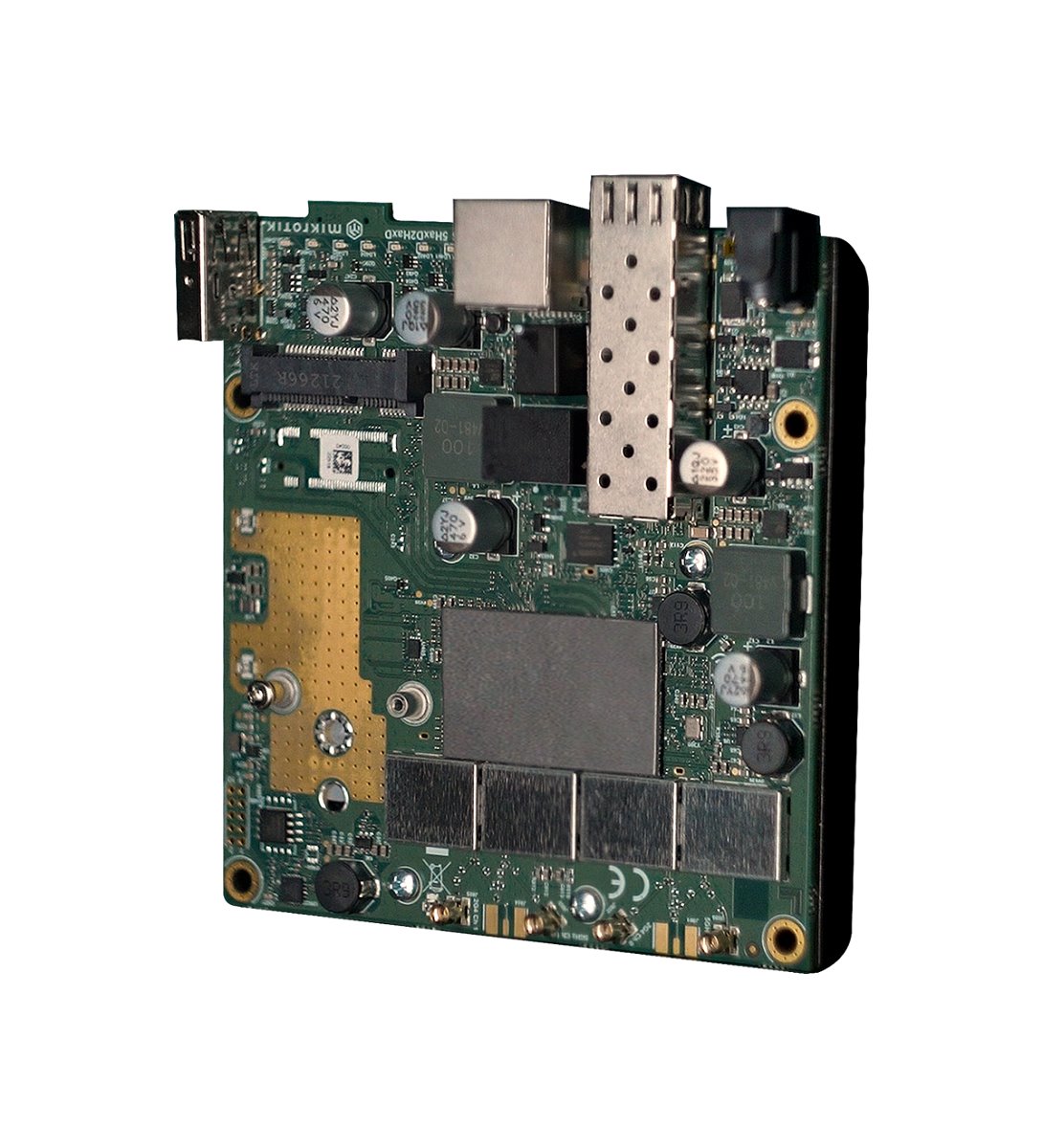

The new L23UGSR-5HaxD2HaxD is a dual-band WiFi6 upgrade of the popular RB922 DIY router. You can use it to build custom low-cost outdoor access points or CPEs – for your home, office, homelab needs or even to launch your own products, such as smart vending machines or ticket stations! Thousands of people across the globe choose the RouterBOARD series to build their products because MikroTik offers no subscriptions, no paywalls, no weird licensing or royalty deals... You buy it – you own it!

The RouterBOARD L23UGSR-5HaxD2HaxD is equipped with 1x1G ETH port, 2.5G SFP port and a USB port. For antenna connections, there are 4x MMCX connectors placed on the RouterBOARD. It also includes a free miniPCIe slot with a SIM slot for deploying an LTE modem or LoRA card, allowing you to create backup mobile connectivity or an IoT gateway.

GPSR

Contact:
Mikrotikls SIA
Unijas iela 2, LV-1039 Riga, Latvia
support@mikrotik.com

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]: 2402
Transmission speed - 2.4GHz [Mb/s]: 574
2.4GHz MIMO: 2 x 2
5GHz MIMO: 2 x 2

Connectors and Interfaces

RF connectors: (4) MMCX
LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes
Optical interfaces: (1) 1G/2.5Gbps
MiniPCI-e slots: 1
SIM slot: Yes
SIM slots quantity: 1
USB: Yes

Power

Power over Ethernet: 18 .. 28V DC
Power type: DC connector, PoE
PoE type: PoE-In (only)
Max. power consumption [W]: 12
Power via connector/terminal: 12 .. 28V DC

Physical characteristics

Design: RouterBOARD
Operating temperature [°C]: -40 up to 70

Hardware

CPU: IPQ-5010
CPU frequency [MHz]: 800
CPU cores: 2
Internal storage [MB]: 128
RAM [MB]: 256

Software

Operating system: RouterOS - L4
Default IP address: 192.168.88.1
Default login and password: admin / -
