MikroTik RBLtAP-2HnD&R11e-LTE&LR8, LtAP LR8 LTE kit
Your price excl. VAT
249.23 EUR
Recycling fee | 0.07 EUR |
---|---|
Your price with RF | 249.30 EUR |
Your price incl. VAT (21%) | 301.65 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
MikroTik |
|
---|---|---|
Code | 10300653 | |
Part No. | RBLtAP-2HnD&R11e-LTE&LR8 | |
Warranty | 24 months |
ETH-SP-G2
9.85 EUR excl. VAT
12.00 EUR incl. VAT
In Stock
ACGPSA
5.26 EUR excl. VAT
6.61 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 863 - 870 MHz, LTE
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
25
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
2,5
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Serial port:
RS-232
MiniPCI-e slots:
2
SIM slot:
Yes
SIM slots quantity:
3
USB:
Yes
Power
Power over Ethernet:
12 .. 30V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
25
Power via connector/terminal:
12 .. 30V DC
Physical characteristics
Design:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
162
Height [mm]:
170
Depth [mm]:
40
Hardware
CPU:
MT7621A
CPU frequency [MHz]:
880
CPU cores:
2
Internal storage [MB]:
16
RAM [MB]:
128
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

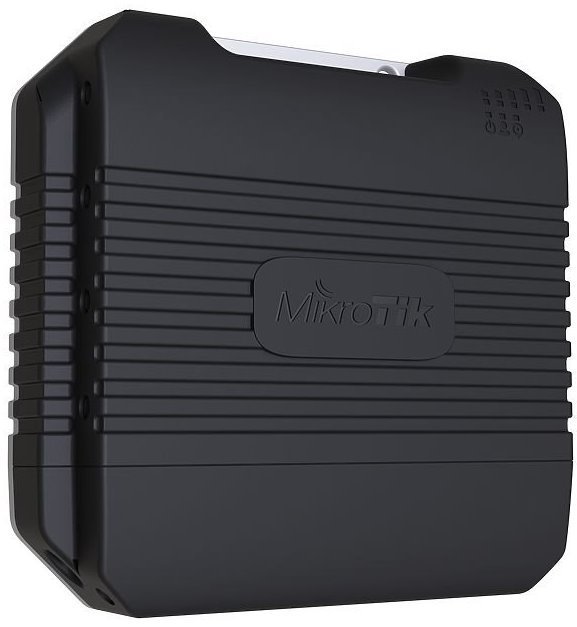

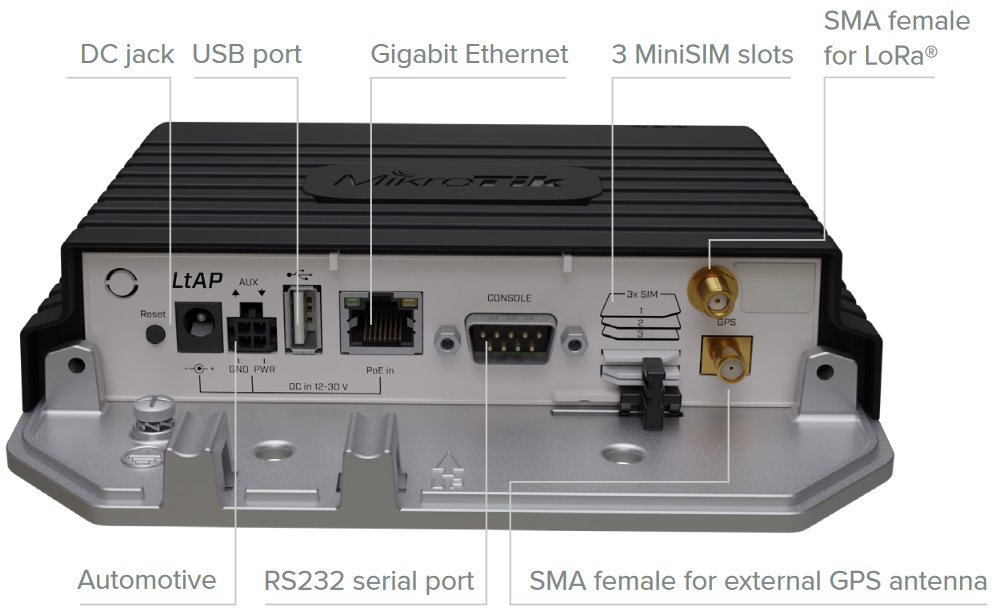

Inside the heavy-duty case, there is a powerful 2.4 GHz wireless access point with a Gigabit Ethernet port, built-in GPS and two internal LTE antennas. There are two miniPCIe slots – one is used for the LTE modem, the other one is populated with the concentrator gateway card for LoRa® technology.
There are three powering options: DC jack, PoE-in and automotive. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!
Internet-of-things has never been so affordable
To fully understand what this device can do, we need to talk about Internet-of-things. Let’s start with an example. Imagine a farmer who has cattle, an irrigation system for the crops, and storage for the goods. On a day-to-day basis he needs to:
For all these tasks the farmer can use low-cost wireless sensors. By connecting them to the LtAP - he can gather the real-time data, combine it with the location information of the vehicle, and send it to the cloud via high-speed LTE. Now all the information he needs to monitor and plan the growth of his farms is in one place. So simple and so handy. The wireless technology behind this is called LoRa®, which stands for Long Range. It requires very low power. That’s why LoRa® is the best way to build your Internet-of-things solutions. LoRa® can be used for anything from smart homes to agriculture, supply chains, logistics and even smart cities. Monitor parking spaces, track utility services, measure environmental data and so on - the possibilities are endless.
There is even a free server infrastructure that you can use - The Things Network, fully supported by the LtAP LR8 LTE kit. With a large community of enthusiasts and developers around the world, you will never be alone with your questions regarding the LoRa® network.
Perfect for logistics and tracking
There are 3 MiniSIM slots you can use to set up automatic switching between mobile operators. Very convenient if you have to cross the border regularly. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same goes for the GPS – you can attach an external antenna as well. By the way, we have provided a simple application example on the RouterOS documentation website, so you can start real-time location tracking right away!
The Things Network
Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internetof- things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.
The setup is so easy - anyone can learn it. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!

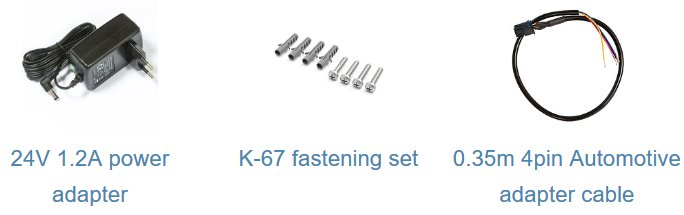

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) Quick GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
