MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway

MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
×
0/0
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway
MikroTik RB924i-2nD-BT5&BG77, KNOT - IoT Gateway

Your price excl. VAT
71.47 EUR
Recycling fee 0.07 EUR
Your price with RF 71.54 EUR
Your price incl. VAT (21%) 86.56 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

MikroTik

Code10300664
Part No.RB924i-2nD-BT5&BG77
Warranty 24 months
  • Related products6
MikroTik ACGPSA - GPS antenna with SMA connector
ACGPSA

5.09 EUR excl. VAT
6.40 EUR incl. VAT
In Stock
Teltonika Mobile SMA Antenna (screw on)
PR1US440

3.59 EUR excl. VAT
4.59 EUR incl. VAT
In Stock
Teltonika Mobile Magnetic SMA Antenna
PR1KS210

6.00 EUR excl. VAT
7.50 EUR incl. VAT
In Stock
MikroTik 868_Omni_antenna - LoRa Omni Antenna Kit, 6.5dBi, 824-960MHz
868_Omni_antenna

35.74 EUR excl. VAT
43.49 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video

Product description

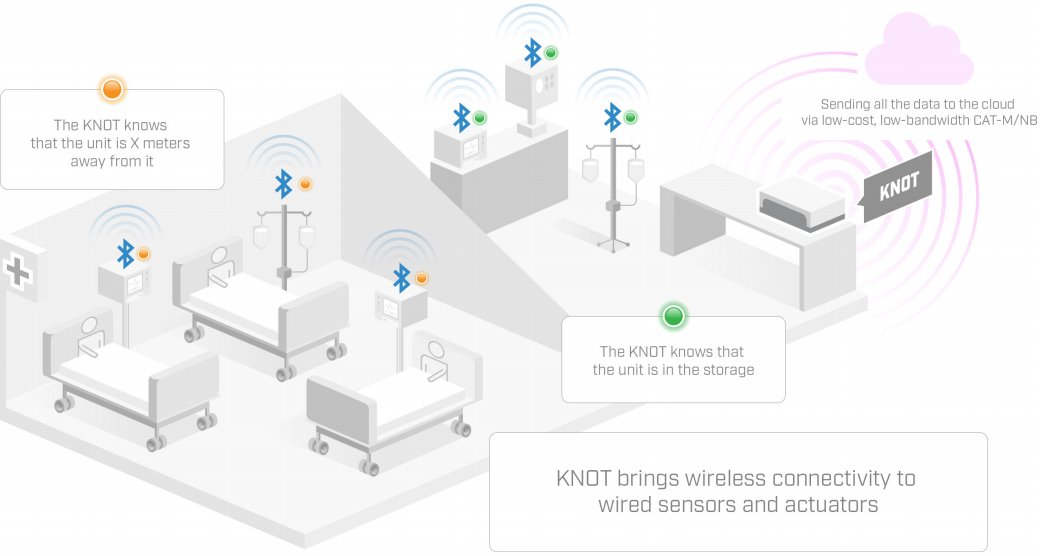

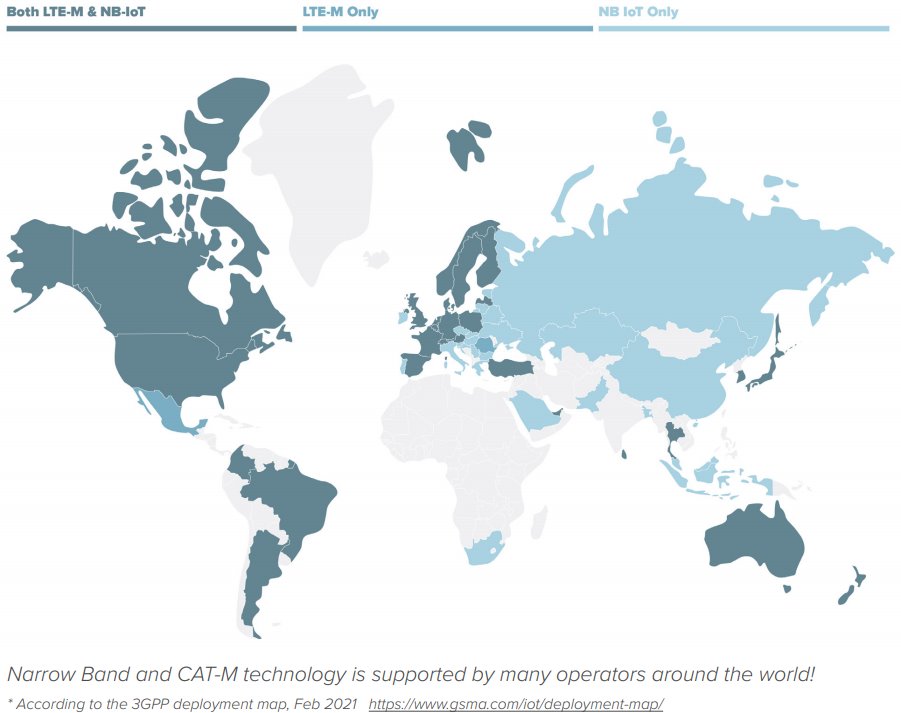

KNOT is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT. You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors and actuators, such as electricity meters and relays.

It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and moisture sensors with only a few megabytes per day!

Key features

  • GPS support (GPS, GLONASS, BeiDou, Galileo) - SMA female connector
  • Narrow Band and LTE cat. M1 technology - SMA female connector
  • Integrated WiFi (802.11b/g/n), 300Mbps, 2x2 MIMO
  • (2) 10/100Mbps (1x PoE IN, 1x PoE out)
  • Integrated Bluetooth 5.2
  • Operating system: RouterOS with L4 License with MQTT support
  • SIM Slot (Nano SIM)

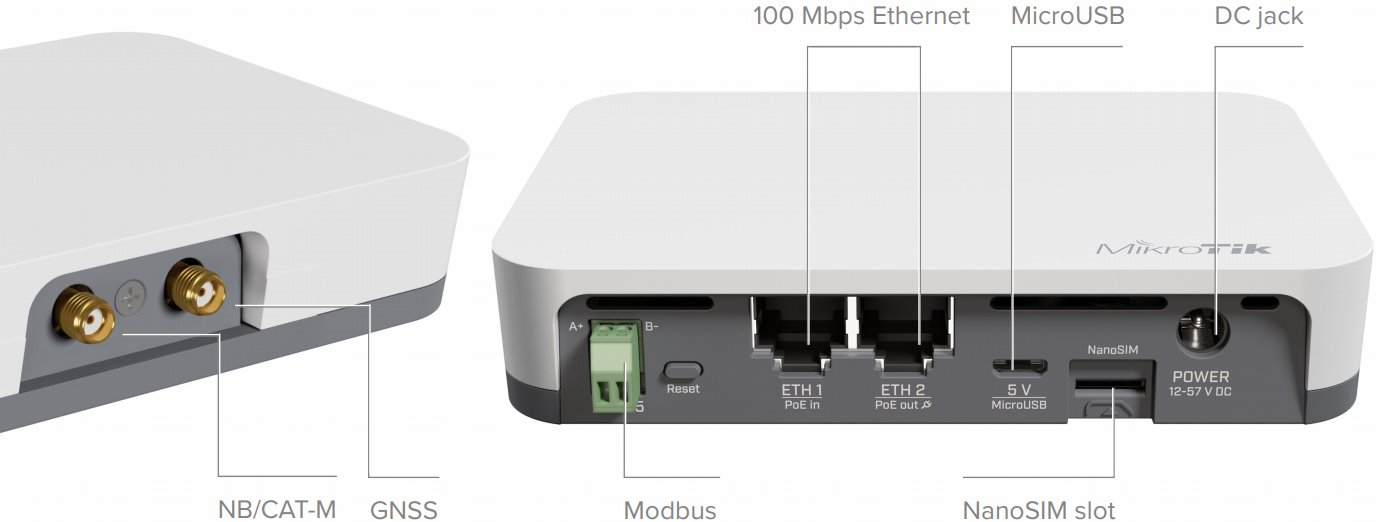

  • Extra interfaces RS485/Modbus and GPIO
  • Wide operating temperature -40 až +70°C
  • Wide range of power options: DC connector, PoE, Micro USB

Package contents

  • Device
  • Power adapter 24V/1.2A

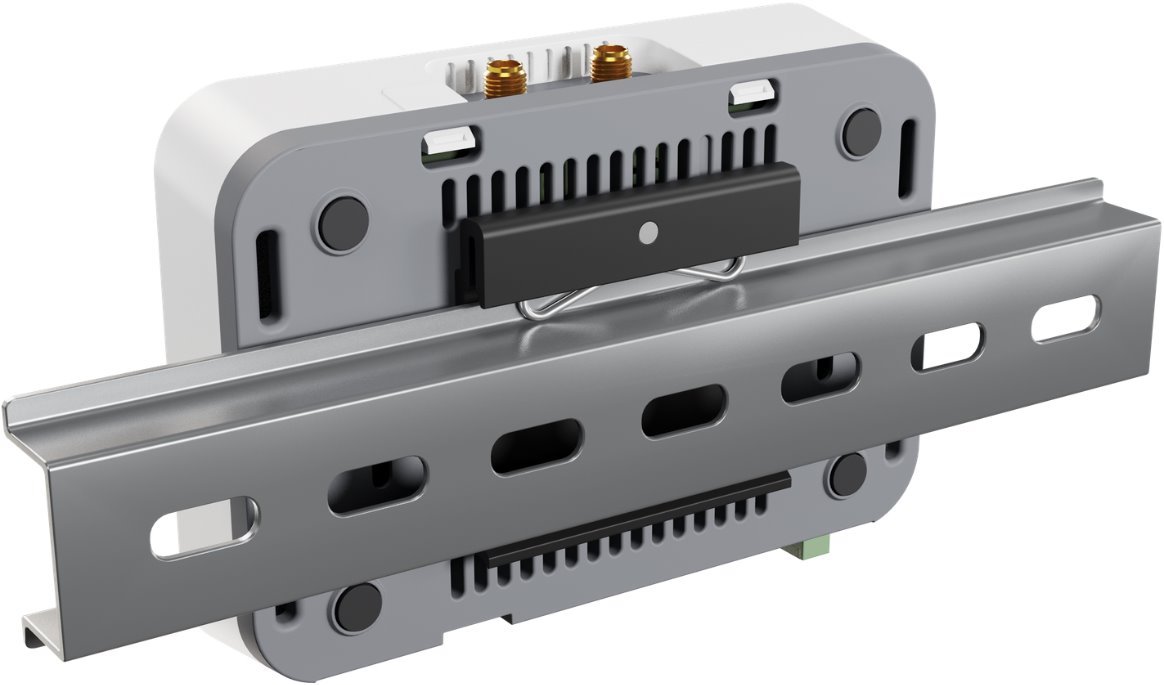

  • DIN rail mounting kit
  • USB A - USB Micro B cable
  • Wall mount set

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

Wireless frequency: 2.4 GHz
WiFi standards: 802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 22
2.4GHz MIMO: 2 x 2
Type of antenna: Built-in
Internal antennas: 2
Antenna gain [dBi]: < 2
Integrated 4G/LTE radio part: Yes
4G/LTE bands support: (1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (85) 700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (27) 800 MHz

Connectors and Interfaces

RF connectors: (2) SMA female
LAN speed: (2) 10/100Mbps
SIM slot: Yes
SIM slots quantity: 1
GPS modul: Yes
Other features: Bluetooth, RS485

Power

Power over Ethernet: 12 .. 57V DC
Power type: PoE, DC connector, USB (5V)
PoE type: PoE-Out + PoE-In
PoE Out ports: 1
PoE budget [W]: 13
Max. power consumption [W]: 5
Power via connector/terminal: 12 .. 57V DC

Physical characteristics

Design: On the wall, Desktop
Buttons: Reset
Operating temperature [°C]: -40 up to 70
Width [mm]: 122
Height [mm]: 26
Depth [mm]: 87

Hardware

CPU: QCA9531
CPU frequency [MHz]: 650
CPU cores: 1
Internal storage [MB]: 16
RAM [MB]: 64

Software

Operating system: RouterOS - L4
IPv6 support: Yes
Default IP address: 192.168.88.1
Default login and password: admin / -
