MikroTik R52Hn miniPCI, Atheros AR9220 (2,4/ 5 GHz, 25 dBm) 802.11a/b/g/n
We are sorry, this product is no longer in our offer.
MikroTik R52Hn miniPCI, Atheros AR9220 (2,4/ 5 GHz, 25 dBm) 802.11a/b/g/n
×
0/0
Sale
MMCX-NM90
4.97 EUR excl. VAT
6.01 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-97
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
300
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
25
Tx power 5GHz [dBm]:
25
Security:
802.11X authentication, 64/128/152Bit WEP, IEEE802.11i encryption
Connectors and Interfaces
Bus type:
miniPCI
RF connectors:
(2) MMCX
Power
Max. power consumption [W]:
7
Physical characteristics
Operating temperature [°C]:
-50 up to 70
Width [mm]:
60
Height [mm]:
7
Depth [mm]:
48
Hardware
Chipset:
Atheros AR9220
Product description

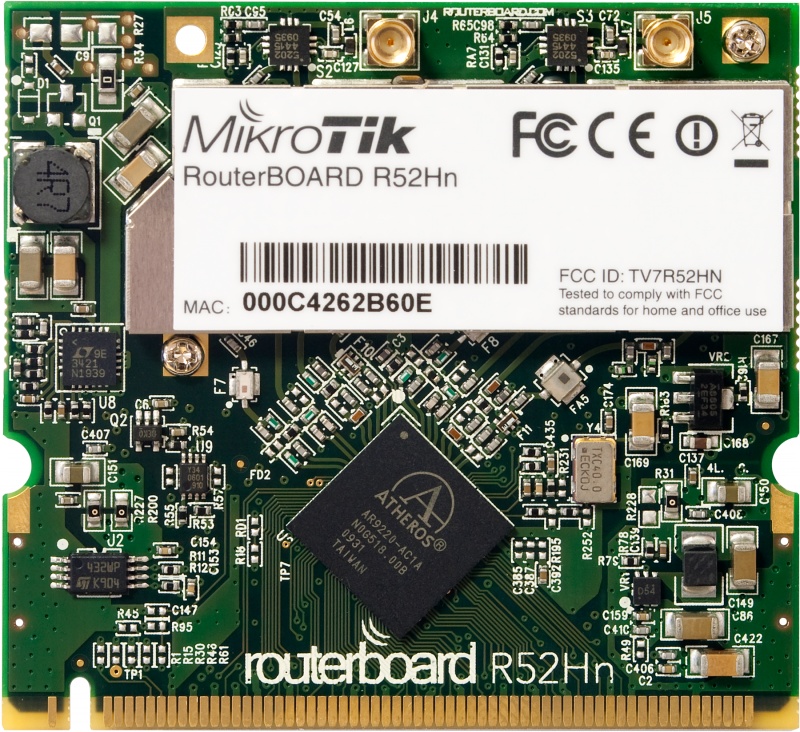

RouterBOARD R52Hn miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. 802.11n in your Wireless device provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming. R52Hn has a high power transmitter, bringing you even more range.
Card has two MMCX connectors for external antennas.
Download
CE DatasheetGPSR
