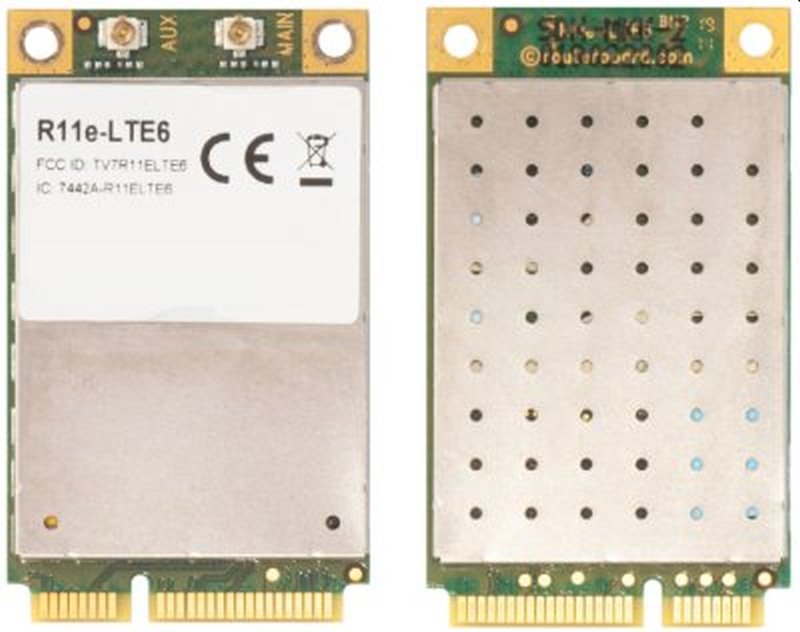

MikroTik R11e-LTE6 - 2G/3G/4G/LTE miniPCi-e karta, 2x u.Fl
We are sorry, this product is no longer in our offer.
MikroTik R11e-LTE6 - 2G/3G/4G/LTE miniPCi-e karta, 2x u.Fl
×
0/0
Sale
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
LTE
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (12) 700 MHz, (41n) 2500 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz
Connectors and Interfaces
Bus type:
miniPCI-e
RF connectors:
(2) u.Fl
Power
Max. power consumption [W]:
5
Physical characteristics
Operating temperature [°C]:
-30 up to 70
Width [mm]:
30
Height [mm]:
5
Depth [mm]:
51
Product description
The R11e-LTE6 is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time. This miniPCIe form factor modem is designed for international bands.
It can be used with any of our products that have miniPCIe slot (exceptions RB800 and RB4011).
