MikroTik LtAP-2HnD&FG621-EA&LR8, LtAP LR8 LTE kit
Your price excl. VAT
212.62 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 212.69 EUR |
| Your price incl. VAT (21%) | 257.35 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10904178 | |
| Part No. | LtAP-2HnD&FG621-EA&LR8 | |
| Warranty | 24 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
ACGPSA
5.33 EUR excl. VAT
6.69 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, LTE, 868 MHz
WiFi standards:
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
25
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
2,5
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (28) 700 MHz

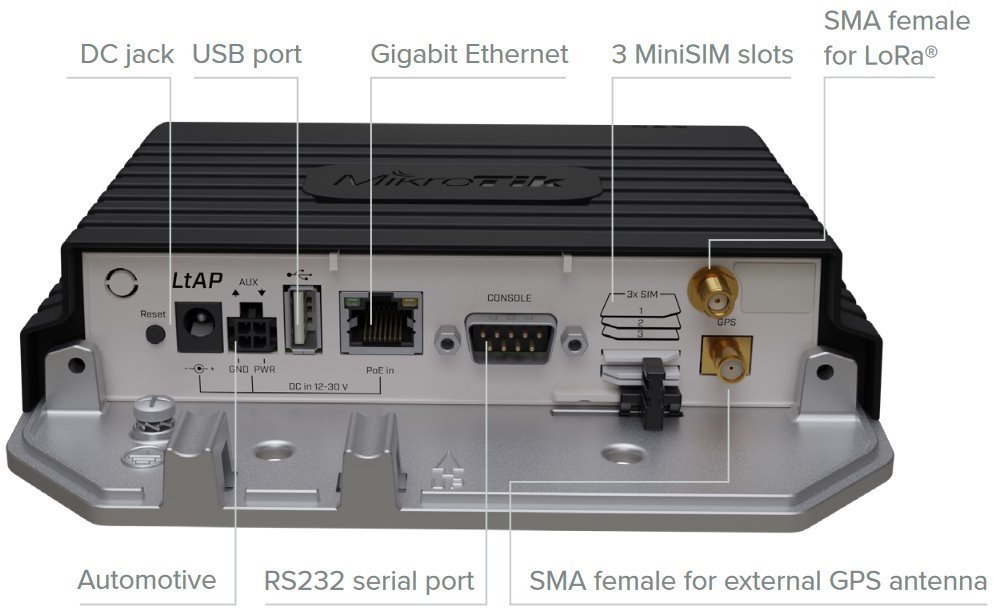

Connectors and Interfaces
RF connectors:
(2) SMA female
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Serial port:
RS-232
MiniPCI-e slots:
2
SIM slot:
Yes
SIM slots quantity:
3
USB:
Yes
Power
Power over Ethernet:
12 .. 30V DC
Power type:
DC connector, PoE, 4-pin automotive
PoE type:
PoE-In (only)
Max. power consumption [W]:
24
Power via connector/terminal:
12 .. 30V DC
Physical characteristics
Protection class:
IP54
Design:
On the wall, Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
162
Height [mm]:
170
Depth [mm]:
40
Hardware
CPU:
MT7621AT
CPU frequency [MHz]:
880
CPU cores:
2
Internal storage [MB]:
16
RAM [MB]:
128
Software
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

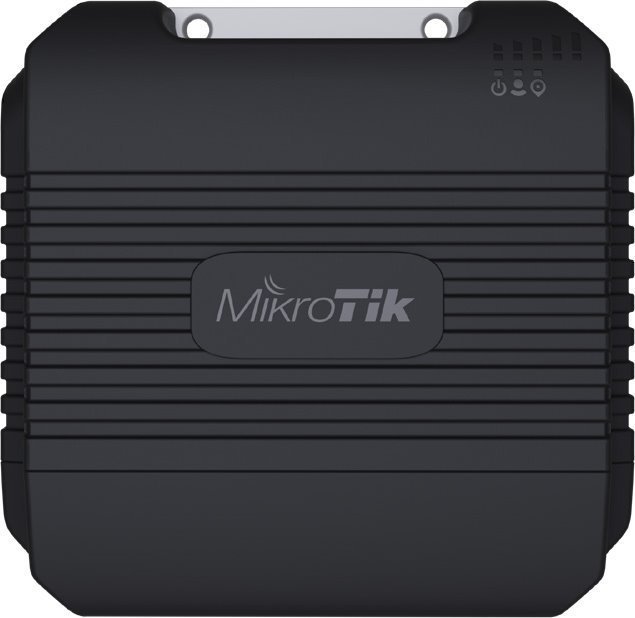

LtAP LR8 LTE kit (2024) equipped with a new LTE modem is a compact and robust wireless access point with support for LLTE Cat6, LoRa network, LAN, GPS, USB and serial port for debugging. The perfect device for noisy urban environments as well as isolated installations. A 2.4 GHz wireless connection with a modulation speed up to 300Mbps will provide sufficiently fast access to the LTE network for your mobile devices. You can connect fixed devices via the Gigabit Ethernet port. On the LTE network, you can achieve speeds up to 300 / 50 Mbps (download / upload). LtAP offers 3 power options with a voltage of 12 to 30 V DC - DC jack, PoE and a 4-pin automotive connector suitable for connection, for example, in a vehicle.
Key Features
LoRa network support
The unit uses the last free miniPCIe slot for a LoRa modem that supports frequencies 863 - 870MHz and is a complete out-of-the-box solution for use as a gateway to a LoRaWAN network. The device includes a pre-installed R11e-LoRa8 module for forwarding UDP packets to any public or private LoRa server.
What is LoRa?
LoRa is a solution for wireless data transmission, where the main goal is the lowest possible power consumption at low acquisition costs and a small data flow is sufficient.
MikroTik LoRa products are ready (not only) for the global network The Things Network - a well-known open source infrastructure that provides coverage of LoRa networks and thousands of useful applications. With The Things Network, you can get started with the Internet of Things in just one day. You can also easily upgrade to the enterprise solution of The Things Industries.
Package contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
